TELEGÄRTNER TNC-bus crimp-verbinder voor RG-316/U, 50 Ohm, 5-pack (J01011A0050)

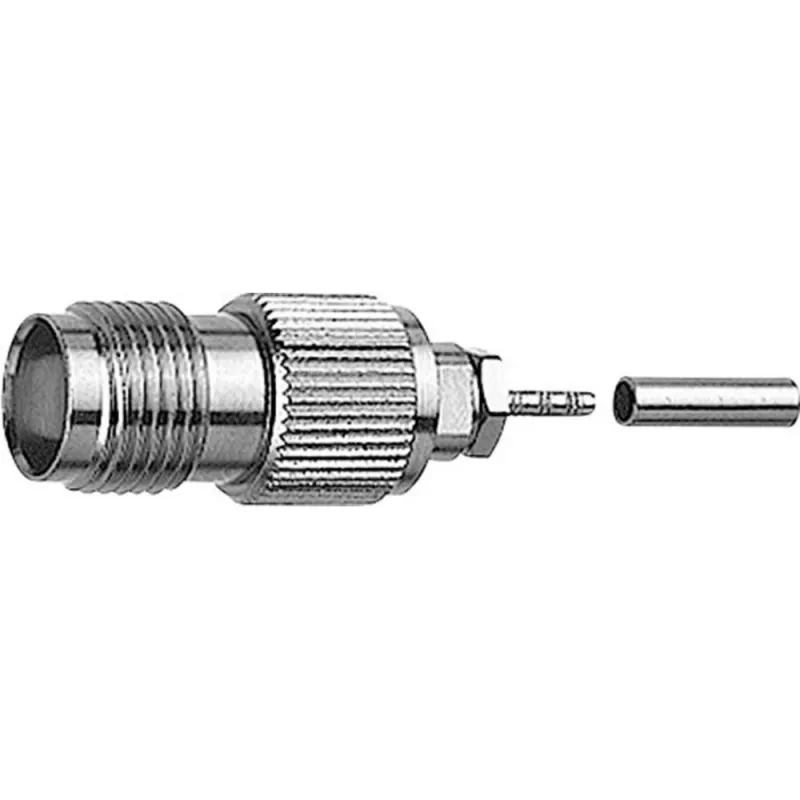

This TNC jack connector from TELEGÄRTNER provides a reliable crimp termination for RG-316/U coaxial cable, offering a 50 Ohm impedance and a frequency range up to 11 GHz. It is supplied in a pack of 5 pieces, ideal for professional RF installations.

Advantages

The crimp/crimp design ensures a secure, durable connection without soldering. Gold-plated center contact and nickel-plated body deliver excellent conductivity and corrosion resistance. PTFE insulation supports a wide operating temperature range from -55°C to +155°C.

Suitable for

• RG-316/U coaxial cable
• RF applications up to 11 GHz
• Laboratory and test environments
• Telecommunications and antenna systems

Key specifications

• Connector type: TNC jack (female)
• Impedance: 50 Ohm
• Termination: crimp/crimp
• Cable group: G07 (RG-316/U)
• Frequency range: DC to 11 GHz
• Voltage rating: 500 V RMS
• VSWR: ≤ 1.3 at 6 GHz
• Contact plating: gold (center), nickel (body)
• Insulator: PTFE
• Operating temperature: -55°C to +155°C
• Pack of 5

Recommendations

Use with RG-316/U cable and appropriate crimp tools for best performance. Verify connector compatibility with your cable's outer diameter before installation.
