Teltonika Bluetooth magnetische SMA-antenne 3 dBi 2,4 GHz

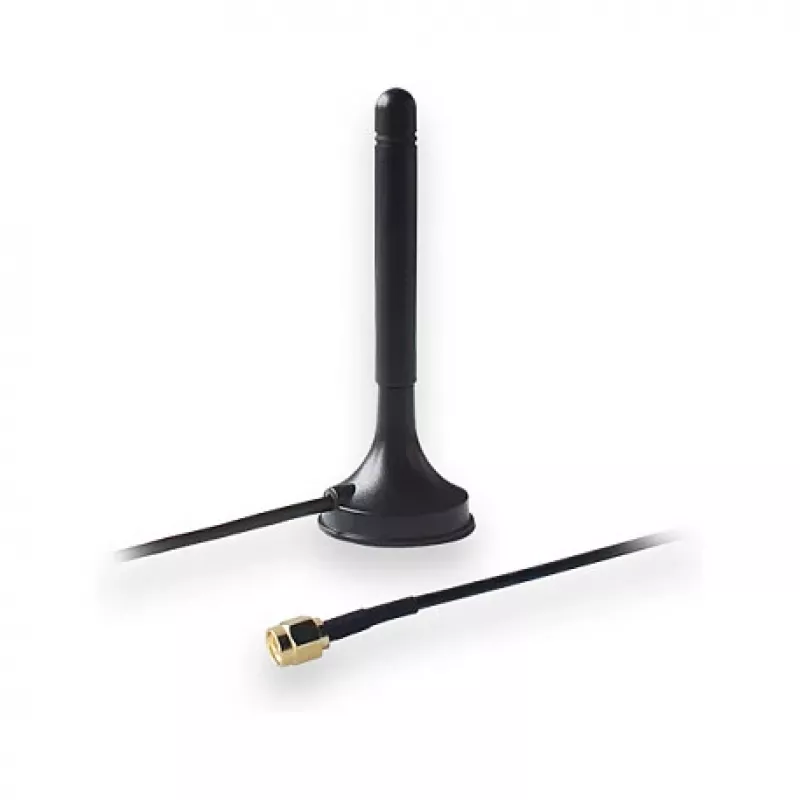

The Teltonika Bluetooth Magnetic SMA Antenna (PR1KRT25) is a high-performance, omni-directional antenna designed for reliable Bluetooth and 2.4 GHz Wi-Fi connectivity. Featuring a magnetic base and a 3-meter RG174 cable with SMA male connector, this antenna offers easy installation and excellent signal reception for a wide range of industrial and commercial applications.

Advantages

This antenna provides a robust 3 dBi gain, ensuring strong and stable wireless connections. The magnetic mounting allows for quick and flexible placement on metal surfaces, while the durable ABS housing withstands harsh environmental conditions. With an operating temperature range of -40°C to +85°C, it is suitable for both indoor and outdoor use.

Suitable for

• Bluetooth-enabled devices such as gateways, routers, and industrial controllers
• 2.4 GHz Wi-Fi access points and client devices
• IoT and M2M applications requiring reliable wireless communication
• Telematics and fleet management systems

Key specifications

• Frequency Range: 2400 - 2500 MHz
• Antenna Gain: 3 dBi
• VSWR: < 2.0
• Impedance: 50 Ohm
• Polarization: Linear
• Connector Type: SMA Male
• Cable Type: RG174
• Cable Length: 3 meters
• Mounting Type: Magnetic
• Application: Bluetooth, Wi-Fi (2.4 GHz)
• Operating Temperature: -40°C to +85°C
• Housing Material: ABS
• Color: Black
• Radiation Pattern: Omni-directional

Recommendations

For optimal performance, mount the antenna on a clean metal surface to ensure strong magnetic adhesion and proper grounding. Avoid placing near large metal obstructions or in enclosed metal spaces that may degrade signal quality.
