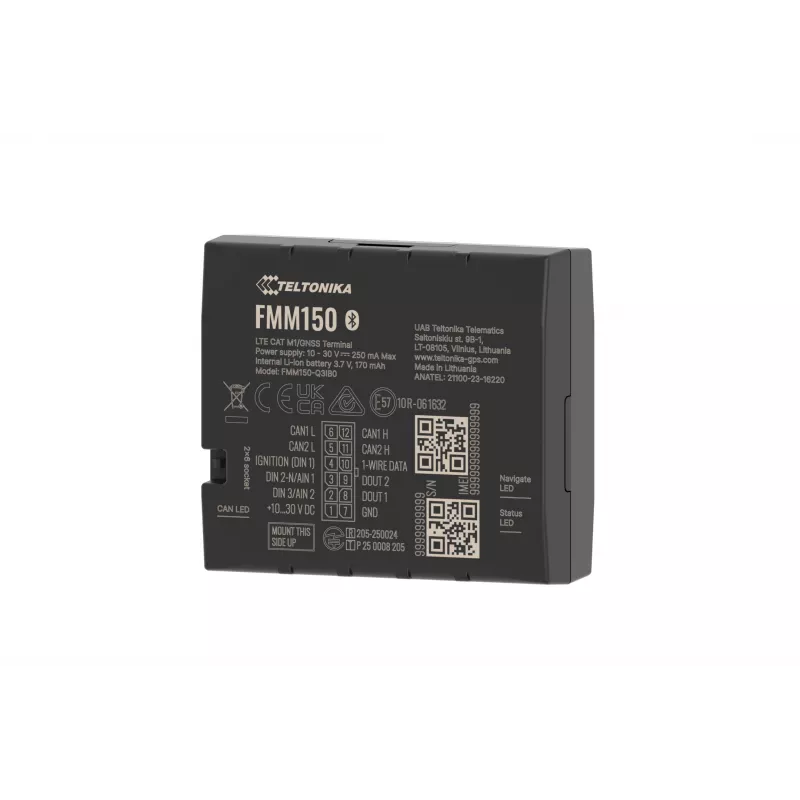

Teltonika FMM150 GPS-tracker voor voertuigen, LTE/GSM/GNSS/BLE 4.0

The Teltonika FMM150 is a compact and versatile GPS tracker designed for vehicle tracking and fleet management. It combines LTE Cat 1, GSM, GNSS, and Bluetooth 4.0 LE connectivity to provide reliable real-time location data and vehicle diagnostics. With multiple digital and analog inputs, it supports ignition detection, driver identification via iButton, and external sensor integration. The device features an internal backup battery and a wide operating temperature range, making it suitable for various automotive environments.

Advantages

Multi-network support ensures global connectivity, while the integrated accelerometer enables motion detection and power-saving modes. The FMM150 is easy to install and configure, offering flexible I/O options for custom applications.

Suitable for

• Vehicle tracking and fleet management
• Stolen vehicle recovery
• Driver behavior monitoring
• Asset tracking in automotive logistics

Key specifications

• Connectivity: LTE Cat 1, GSM, GNSS, Bluetooth 4.0 LE
• GNSS: GPS, GLONASS, Galileo, BeiDou, SBAS, QZSS, DGPS, AGPS
• Inputs/Outputs: 3 digital inputs (1 dedicated for ignition), 2 digital outputs, 1 analog input (0-30 V)
• Internal battery: 170 mAh Li-Ion rechargeable
• Operating temperature: -40 °C to +85 °C
• IP rating: IP41
• Dimensions: compact design for discreet installation

Recommendations

For CAN bus data reading, use the Teltonika CAN-CONTROL adapter (sold separately). Ensure proper power supply (10-30 V DC) and SIM card with data plan for cellular connectivity.
