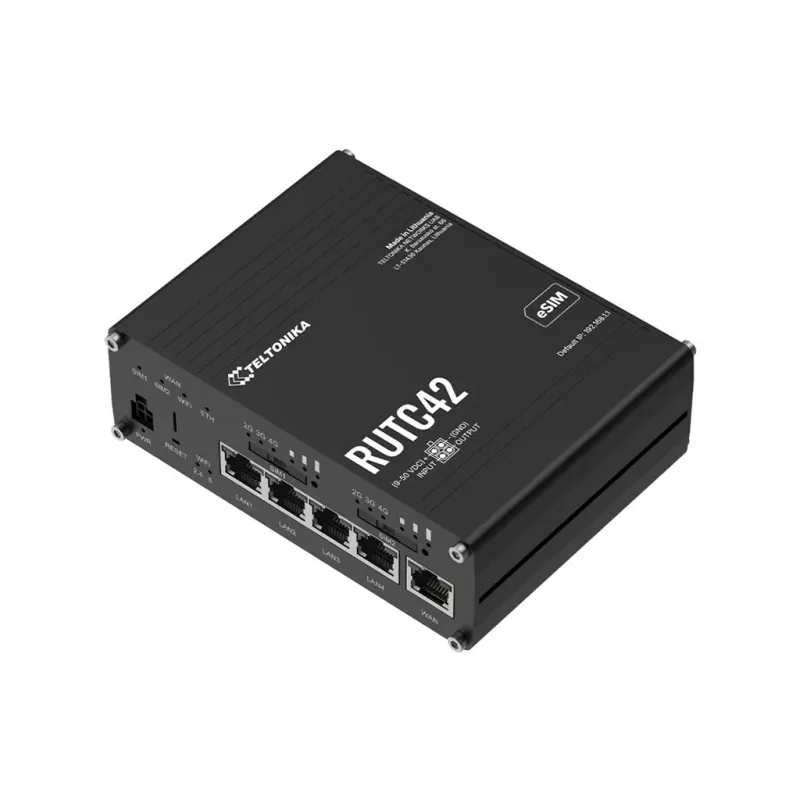

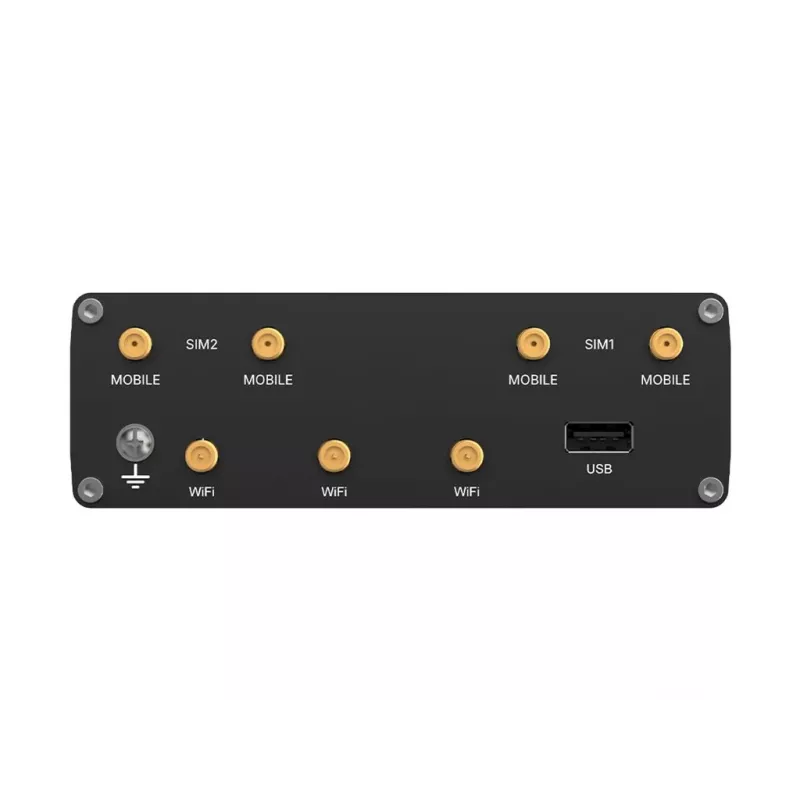

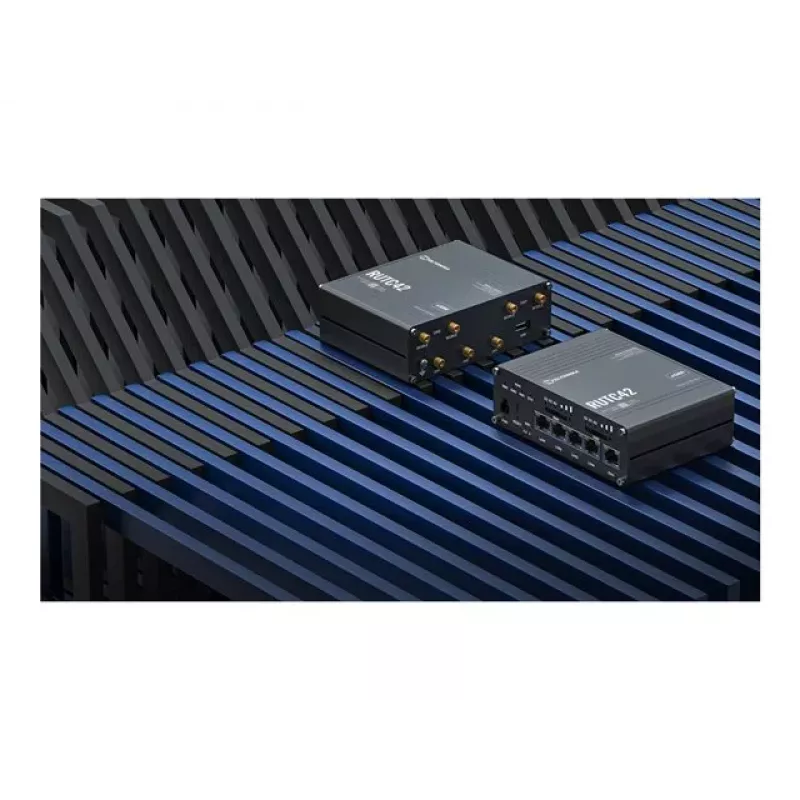

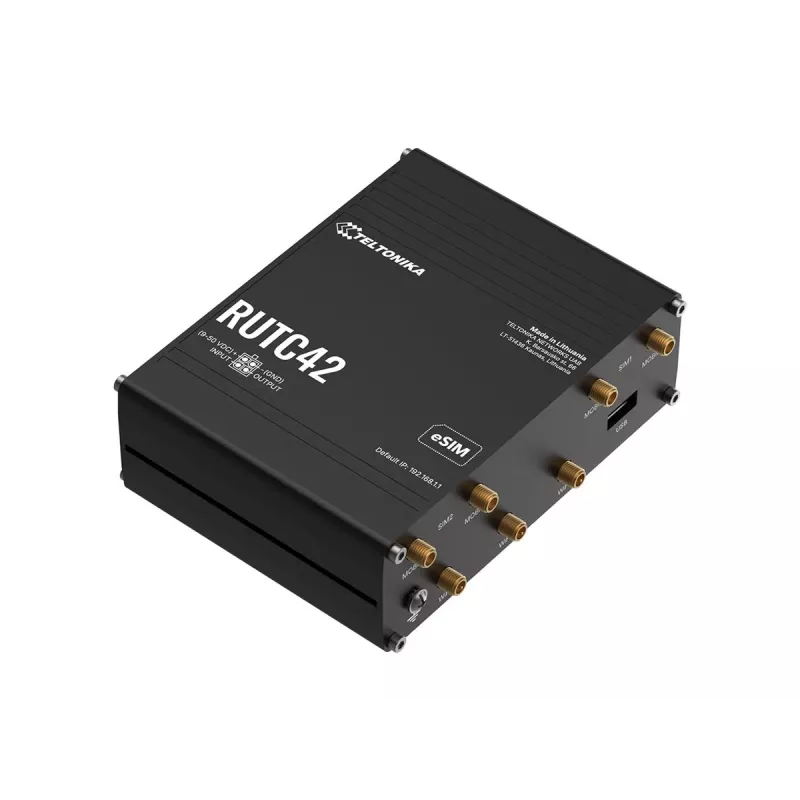

Teltonika RUTC42 4G LTE Wi-Fi 6 dual-modem edge-router

The Teltonika RUTC42 is a wireless cellular modem and router designed to provide reliable Internet connectivity across various environments. It supports 3G, 4G, and 2G mobile broadband technologies and can handle up to 500 concurrent connections. With Wi-Fi 6 and Ethernet LAN, it is suitable for both personal and business use.

Key features

• Wireless router with integrated 4-port switch
• Supports 3G, 4G, and 2G mobile communication protocols
• Wi-Fi 6 (IEEE 802.11ax) and other Wi-Fi standards
• Maximum data rate: 2402 Mbps on 5 GHz, 576 Mbps on 2.4 GHz
• Up to 500 concurrent connections
• DIN rail, wall, and surface mountable
• Operating temperature: -40°C to 75°C
• Humidity range: 10% to 90% (non-condensing)

Specifications

• Brand: Teltonika
• MPN: RUTC42000000
• Device type: Wireless router - wireless cellular modem - 4-port switch (integrated)
• Enclosure type: DIN rail mountable, wall-mountable, surface-mountable
• Mobile communication protocol: FDD LTE, TDD LTE
• Generation: 3G, 4G, 2G
• Cellular band: LTE B1, LTE B3, LTE B5, LTE B7, LTE B8, LTE B20, LTE B28, LTE B38, LTE B40, LTE B41
• WAN ports quantity: 1
• Data link protocol: Ethernet, Fast Ethernet, Gigabit Ethernet, IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax (Wi-Fi 6), IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
• Frequency band: 2.4 GHz / 5 GHz
• Performance: Maximum data rate (2.4 GHz): 576 Mbps; Maximum data rate (5 GHz): 2402 Mbps
• Capacity: Concurrent connections: up to 500
• Network / transport protocol: TCP, UDP, IPv4, IPv6, NTP, DNS, HTTP, HTTPs, SFTP, FTP, SMTP, ARP, PPPoE, IPSec
• Routing protocol: Static IP routing, BGP, OSPFv2, RIP-1, RIP-2, EIGRP, NHRP, policy-based routing (PBR), VRRP, VXLAN
• Platform: Cumulocity, ThingWorx, Azure IoT Hub, AWS IoT Core
• Remote management protocol: SSH, DHCP, Telnet, SMPP, SNMP, MQTT, ICMP, SNMP 1, SNMP 2, SNMP 3, HTTP, HTTPS, TR-069, JSON-RPC, CLI
• VoIP protocols: H.323, SIP
• Features: 3GPP Release 9, RSSI support, USSD support, allow/block list, auto APN, band management, bridge mode, multiple PDN, SIM idle protection service, SIM PIN management, MU-MIMO technology, protected management frames, ESSID stealth mode, auto-uplink (auto MDI/MDI-X), WOL, DHCP relay, DHCP server, QoS, WMM Admission Control, Teltonika RMS, FOTA, reset button, anodised aluminium housing, DNP3 outstation, DNP3 station, H.323 Pass-Through, DDoS Protection, port-based VLAN, tagged VLAN, SSHFS support, Tailscale encryption, Tinc encryption, DMVPN, SSTP client instance support, WireGuard, ZeroTier VPN client support, GRE tunneling, Docker Support, eSIM support
• Compliant standards: IEEE 802.11w, IEEE 802.11s, IEEE 802.11k, IEEE 802.11r, IEEE 802.11v, IEEE 802.3, IEEE 802.3az, IEEE 802.3u, UPnP, IEEE 802.11e
• Power: DC 9 - 50 V
• Dimensions (WxDxH): 13.04 cm x 10.34 cm x 4.26 cm
• Weight: 452 g
