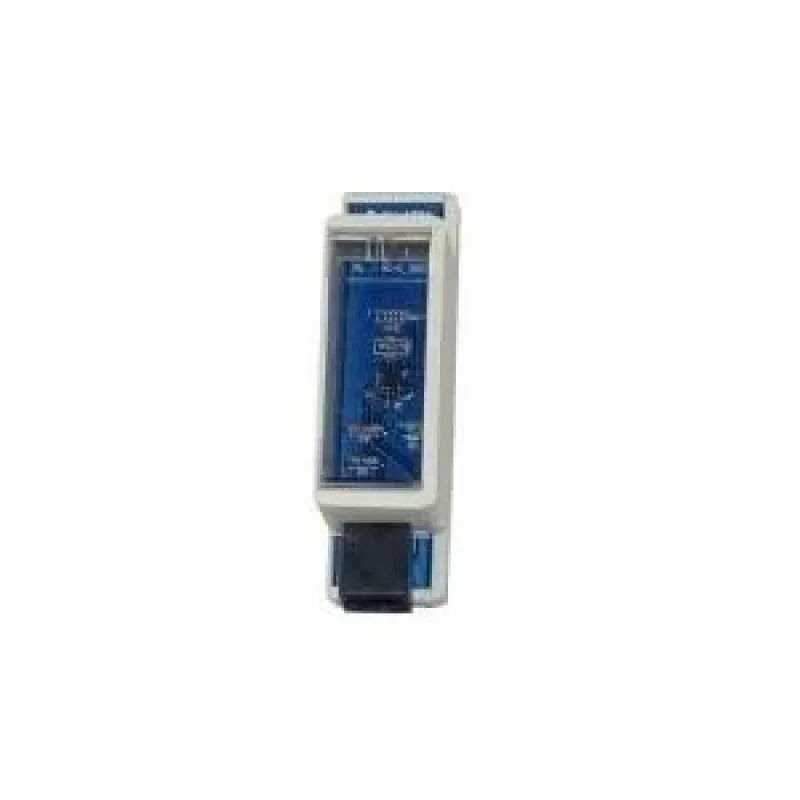

Temperatuur-/vochtigheidssensor ALLNET ALL4006

The ALLNET ALL4006 is a wired temperature and humidity sensor designed for DIN rail mounting (27 mm width). It measures temperature in the range -40 to +85 °C with a resolution of 0.06 °C and provides reliable wired data transmission for monitoring indoor and outdoor environments. The sensor is compatible with ALLNET devices ALL3000, 3418v2, 3500, 400x, 4500 and 5000.

Advantages

The ALLNET ALL4006 offers a wide temperature measurement range and high resolution, ensuring precise readings in harsh conditions. Its DIN rail form factor (27 mm) enables neat integration into electrical cabinets and racks. Wired connectivity reduces the risk of signal loss and supports stable, continuous monitoring when connected to compatible ALLNET systems.

Suitable for

• Environmental monitoring in server rooms and telecom cabinets
• Industrial enclosures and control panels
• Cold storage and HVAC system monitoring
• Building automation and data-center climate control

Key specifications

• Model: ALLNET ALL4006
• Mounting: DIN rail, 27 mm width
• Measured parameters: temperature, humidity
• Temperature range: -40 … +85 °C
• Temperature resolution: 0.06 °C
• Connectivity: wired (compatible with ALL3000/3418v2/3500/400x/4500/5000)
• Brand: ALLNET
• MPN: ALL4006
• EAN: 4038816000897

How to use

Mount the ALLNET ALL4006 on a standard 27 mm DIN rail inside the enclosure or cabinet. Connect the sensor to a compatible ALLNET monitoring device using the wired interface according to the device’s wiring diagram. After connection, verify sensor readings through the host device or management software and place the sensor in a representative location to ensure accurate environmental monitoring.

Recommendations

Install the sensor away from direct heat sources, vents or doors to avoid localized temperature bias. For outdoor installations, ensure the sensor is placed in a weather-protected enclosure while maintaining adequate airflow for accurate humidity and temperature measurement.
