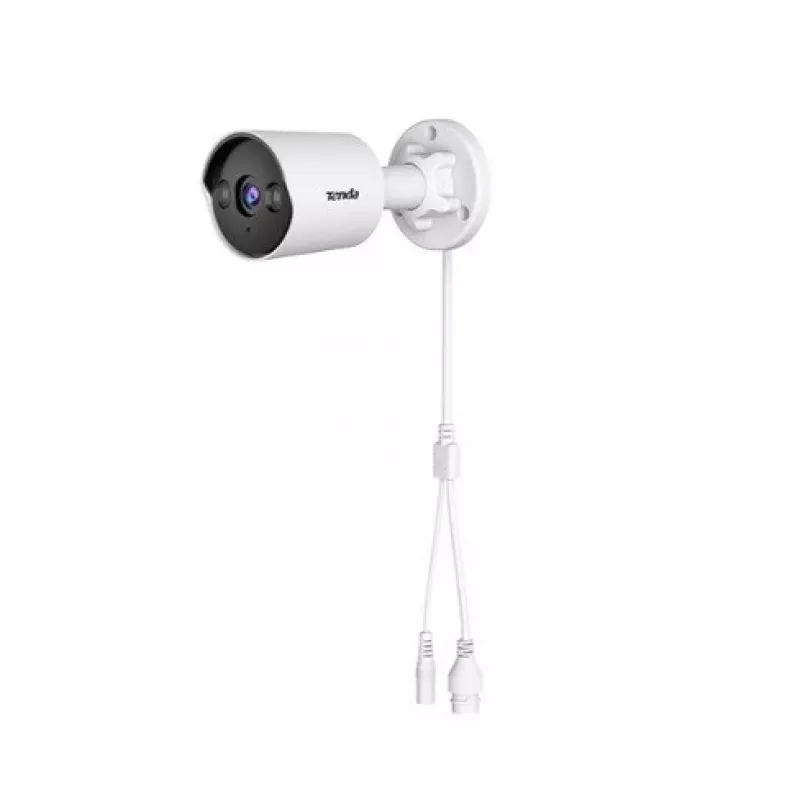

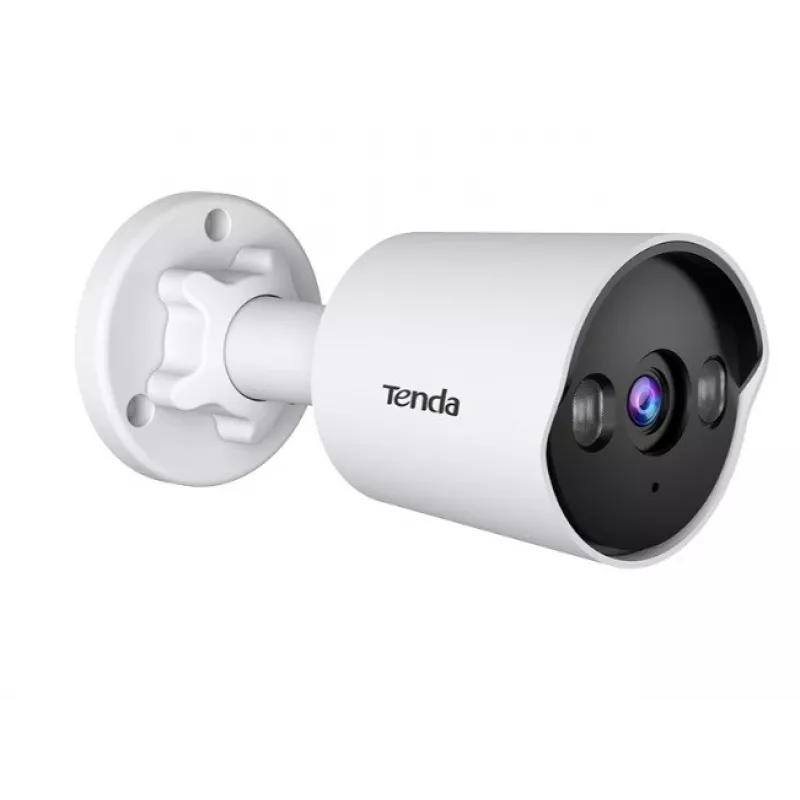

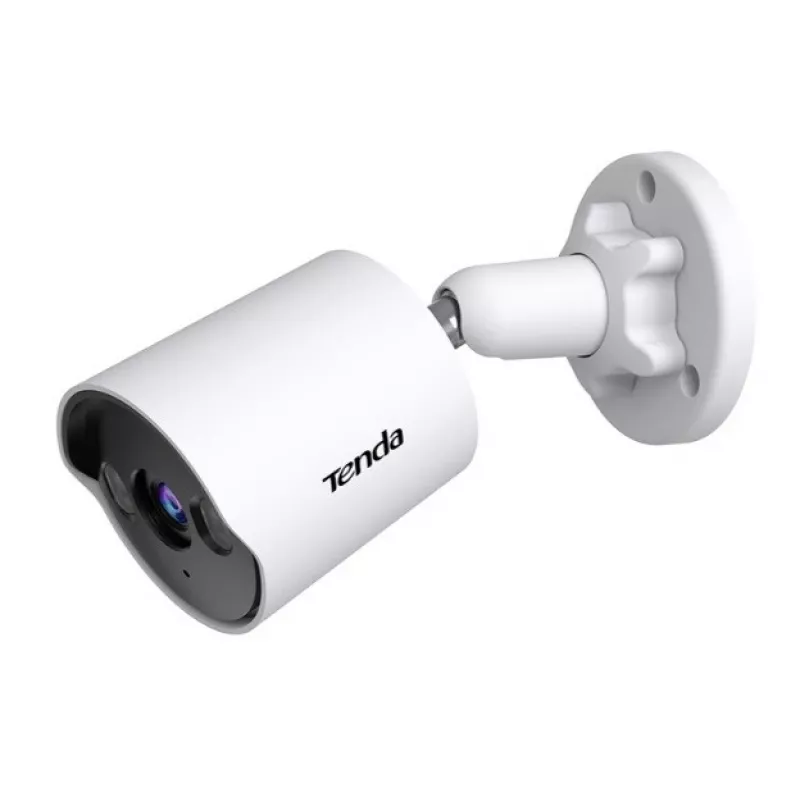

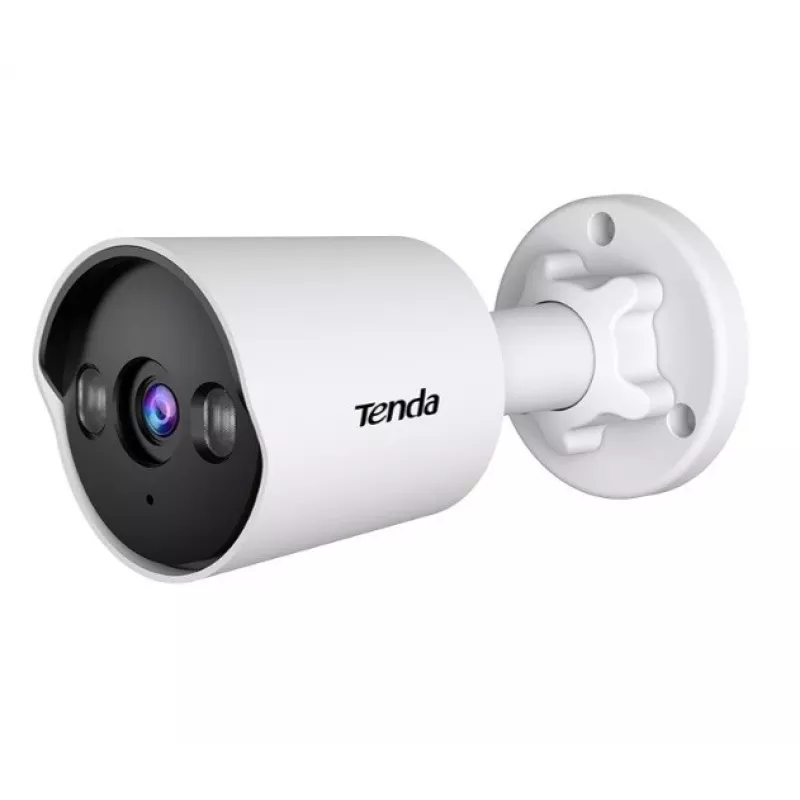

Tenda TC3B24C-PS(6mm) full-color PoE 4MP bulletcamera

The Tenda TC3B24C-PS(6mm) is a full-color PoE bullet camera with 4MP resolution and a 6mm fixed lens. It features a 1/2.8" Progressive Scan CMOS sensor, H.265+/H.265/H.264 video encoding, and a built-in microphone. The camera has an IP67 rating and a metal housing in white.

Key features

• 4MP resolution (2560 x 1440)
• Full-color night vision with dual-light (warm white LED + IR up to 30m)
• H.265+/H.265/H.264 video compression
• Built-in microphone
• PoE IEEE 802.3af support
• ONVIF protocol support
• IP67 weatherproof rating
• Intelligent detection: motion, human, vehicle, line crossing, sound
• DWDR, BLC, HLC, 3D DNR
• MicroSD card slot for local storage

Specifications

• Brand: Tenda
• Model: TC3B24C-PS(6mm)
• Product colour: White
• Sensor: 1/2.8" Progressive Scan CMOS
• Lens: 6mm fixed, F1.6
• Field of view: H: 79.1°, V: 43.3°, D: 94.9°
• Resolution: 4MP (2560×1440 @20fps, 2304×1296, 1920×1080, 1280×720)
• Night vision range: up to 30m
• Video encoding: H.265+/H.265/H.264
• Bitrate: Adaptive, 32Kbps~12Mbps
• Audio: Built-in microphone, G.711A, G.711U, AAC, 8 kHz
• Network port: 1× RJ45 10/100 Mbps (PoE IEEE 802.3af, Class 0)
• Power supply: PoE (DC 44-57V), max power consumption 5.5W
• Protocols: TCP/IP, UDP, ICMP, HTTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, ARP, ONVIF
• Operating temperature: -40°C ~ +60°C
• Operating humidity: 10% ~ 95% RH (non-condensing)
• Dimensions: 80 × 80 × 76 mm
• Weight: 307g
• Housing: Metal, white
• Mounting: Wall/ceiling (bracket included)
