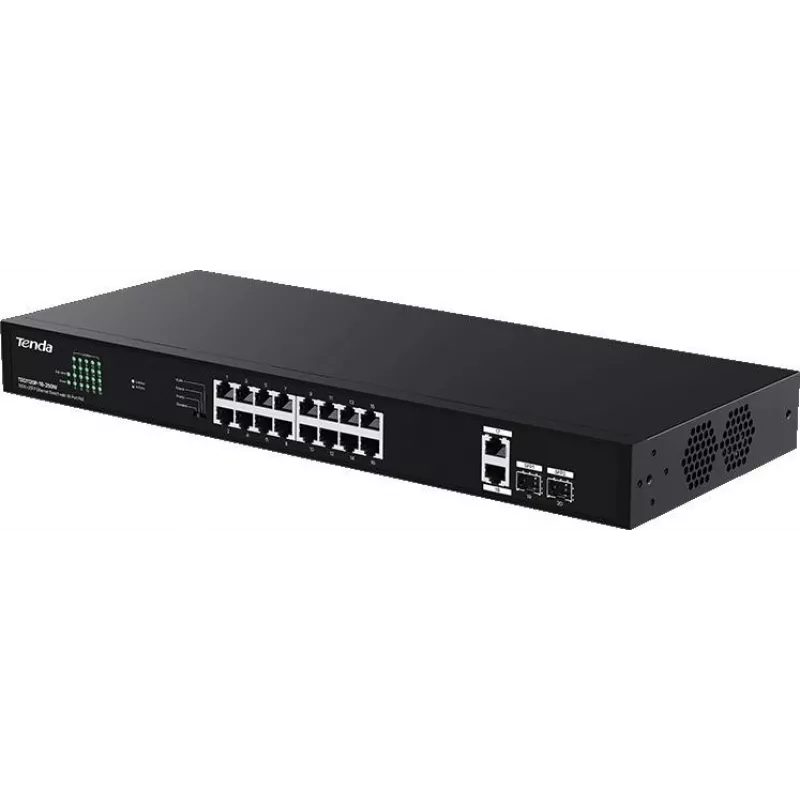

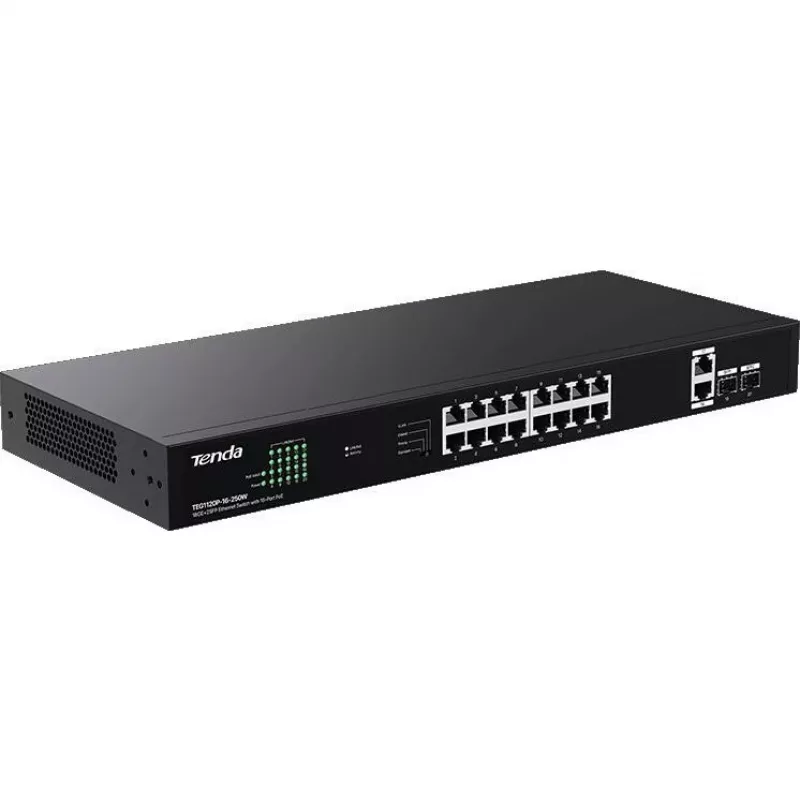

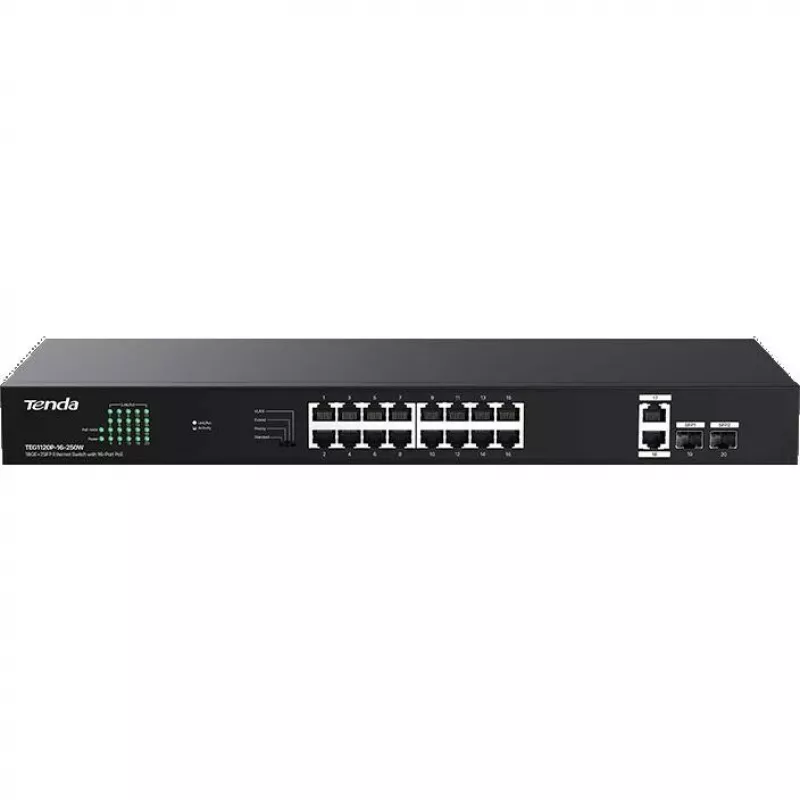

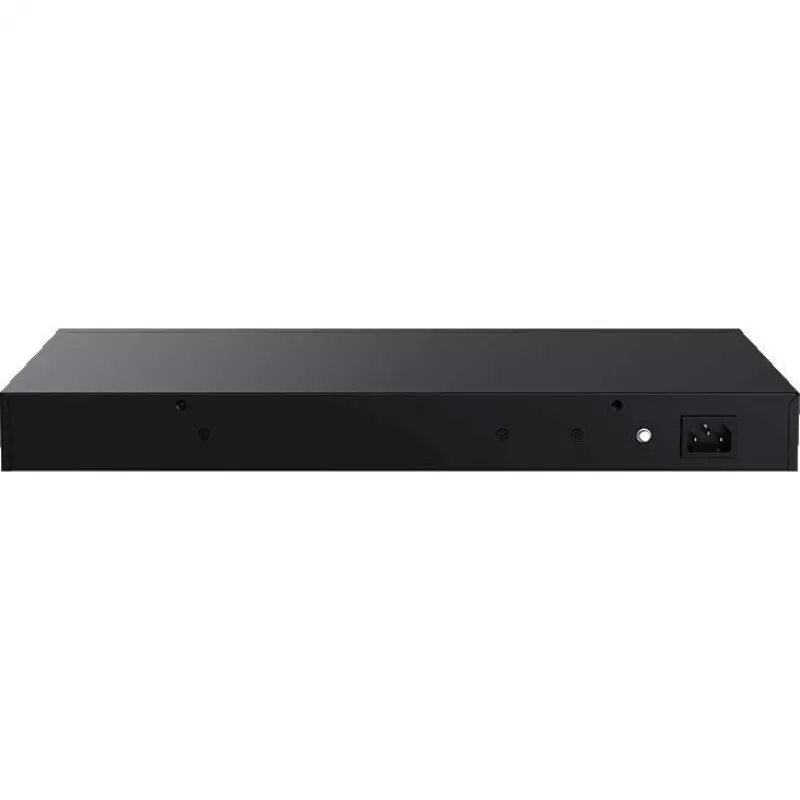

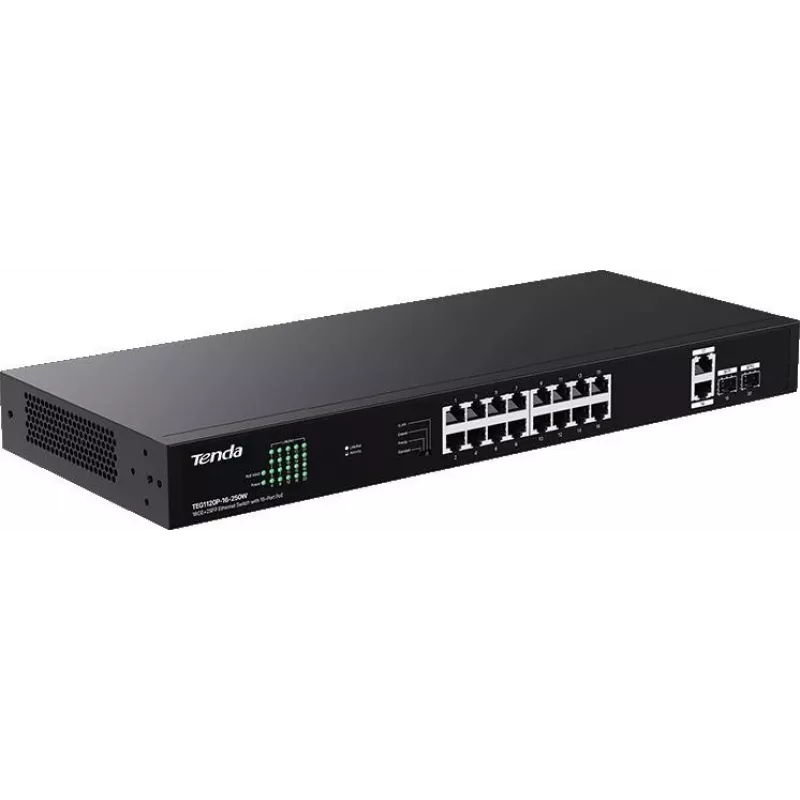

Tenda TEG1120P-16-250W unmanaged PoE+ switch 18-poorts Gigabit 2 SFP 250W

The Tenda TEG1120P-16-250W is a high-performance unmanaged PoE+ switch designed for small and medium-sized businesses, surveillance systems, and network expansions. With 18 Gigabit Ethernet ports (16 PoE+), 2 SFP slots, and a 250W PoE budget, it delivers reliable power and data connectivity for IP cameras, access points, and other PoE devices.

Advantages

This switch offers plug-and-play installation with no configuration required, making it ideal for quick deployments. Its 250W PoE budget supports high-power devices such as PTZ cameras and wireless access points. The 40 Gbps switching capacity ensures smooth data flow, while the 6KV lightning protection enhances durability in outdoor or industrial environments.

Suitable for

• IP surveillance systems with multiple PoE cameras
• Wireless network expansions with PoE access points
• Small office networks requiring reliable Gigabit connectivity
• Edge network deployments in retail, education, and hospitality

Key specifications

• 18 x 10/100/1000 Mbps Gigabit Ethernet ports (16 PoE+)
• 2 x 1000Base-X SFP slots for fiber uplinks
• PoE budget: 250W, IEEE 802.3af/at compliant
• Switching capacity: 40 Gbps
• Packet forwarding rate: 29.76 Mpps
• MAC address table: 8K entries
• Jumbo frame support: 10K bytes
• Store-and-forward switching mode
• Rack-mountable 1U form factor
• 2 built-in fans for cooling
• Lightning protection: 6KV
• Power supply: AC 100-240V, 50/60Hz
• Operating temperature: 0°C to 45°C

Recommendations

For optimal performance, use Category 5e or higher Ethernet cables. Ensure the total PoE power consumption of connected devices does not exceed 250W. This switch is an excellent choice for expanding your network with PoE devices without the need for separate power adapters.
