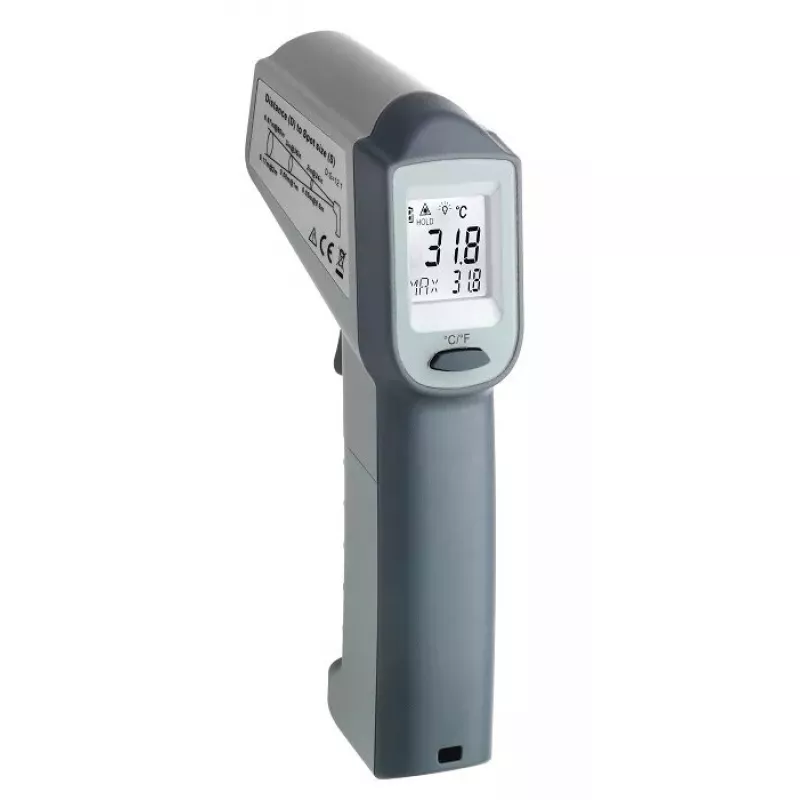

Thermometer TFA-Dostmann Beam

The Thermometer TFA-Dostmann Beam is a handheld infrared thermometer for contact-free surface temperature measurement. It measures temperatures from -38 to 365 °C (-36 to 689 °F), includes a laser pointer for aiming, a rectangular backlit display that shows the current and highest temperature, and runs on a single 1.5 V AAA battery. Its compact dimensions (40 mm × 85 mm × 175 mm) make it easy to hold and operate for a variety of measurement tasks.

Advantages

The device provides fast readings (measuring time approximately 1 second), a clear visual target with the laser pointer, and a backlit display for use in low-light conditions. Accuracy varies by range, typically ±1.5 °C to ±3 °C depending on the measured temperature. The 12:1 distance-to-spot ratio helps determine the measured area at different distances, and the compact form factor supports portable use.

Suitable for

• Checking surface temperatures of cooking surfaces and appliances
• Quick temperature checks on HVAC components and radiators
• Maintenance diagnostics for motors and electrical panels (surface only)
• General-purpose surface temperature measurements in workshops and homes

Key specifications

• Measuring range: -38 to 365 °C (-36 to 689 °F)
• Measuring time: ~1 second
• Accuracy: ±1.5 °C to ±3 °C (depending on range)
• Distance-to-spot ratio (D:S): 12:1
• Display: rectangular, with backlight; shows current and maximum temperature
• Aiming: laser pointer
• Power: 1 × AAA battery (1.5 V)
• Dimensions: 40 mm (W) × 85 mm (D) × 175 mm (H)
• Brand / model: tfa dostmann — Thermometer TFA-Dostmann Beam (MPN 31.1132, EAN 4009816025487)

How to use

Aim the laser pointer at the surface to be measured and keep the thermometer within a distance appropriate for the 12:1 distance-to-spot ratio to ensure the target area is within the sensor field. Press the measurement button and read the result on the backlit display; the device updates the current temperature in about one second and also records the highest measured value. Replace the AAA battery when the display indicates low power or readings become unreliable.

Recommendations

Allow the instrument and the measured object to acclimatize to the same ambient temperature for the most accurate results. Avoid measuring through glass or transparent surfaces and do not use the device to measure body temperature. For small or distant targets, move closer to ensure the spot size fits the target according to the 12:1 ratio.
