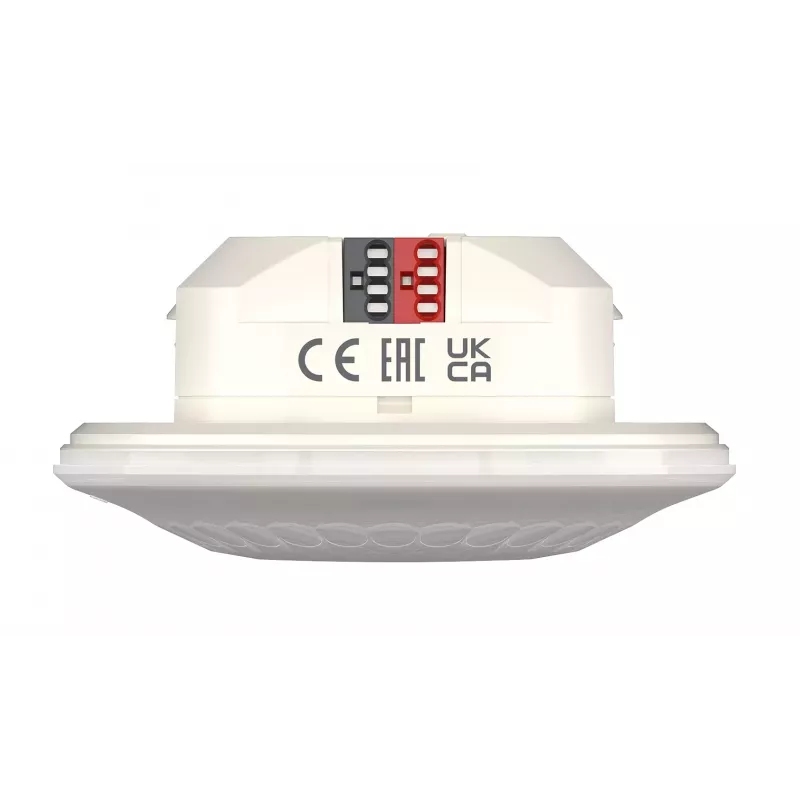

Theben LUXORliving BI360 plafondmontage bewegingsmelder 360° 8 m wit 4800355

Theben LUXORliving BI360 is a ceiling-mounted motion detector for the LUXORliving smart home bus system, offering 360° presence detection with a diameter of up to 8 m at a mounting height of 2.5 m. It enables automatic, brightness-dependent control of lighting and HVAC with two channels.

Advantages

360° detection angle covers the entire room from a single ceiling point. Integrated light sensor (10–2000 lux) and adjustable follow-up time (10 s–60 min) allow precise automation. Teach-in function and test mode simplify commissioning. Manual override provides direct control when needed.

Suitable for

• Indoor rooms with ceiling heights of 2.0–3.0 m
• Offices, meeting rooms, corridors, and bathrooms
• LUXORliving smart home installations

Key specifications

• Mounting type: Ceiling mounting (flush-mounted)
• Detection angle: 360°
• Detection range: up to 8 m diameter at 2.5 m height
• Operating voltage: 29 V DC via LUXORliving bus
• Light sensor range: 10–2000 lux
• Follow-up time: 10 s–60 min
• Protection class: IP20
• Operating temperature: -5 °C to +45 °C
• Colour: White (RAL 9010)
• Material: UV-stabilised polycarbonate
• Number of channels: 2
• Power consumption: < 0.3 W
• Detection zones: 1120 switching segments
• Installation depth: 30 mm

Recommendations

For optimal coverage, install at the recommended height of 2.5 m in the centre of the room. Use the teach-in function to set the desired brightness threshold based on actual lighting conditions.
