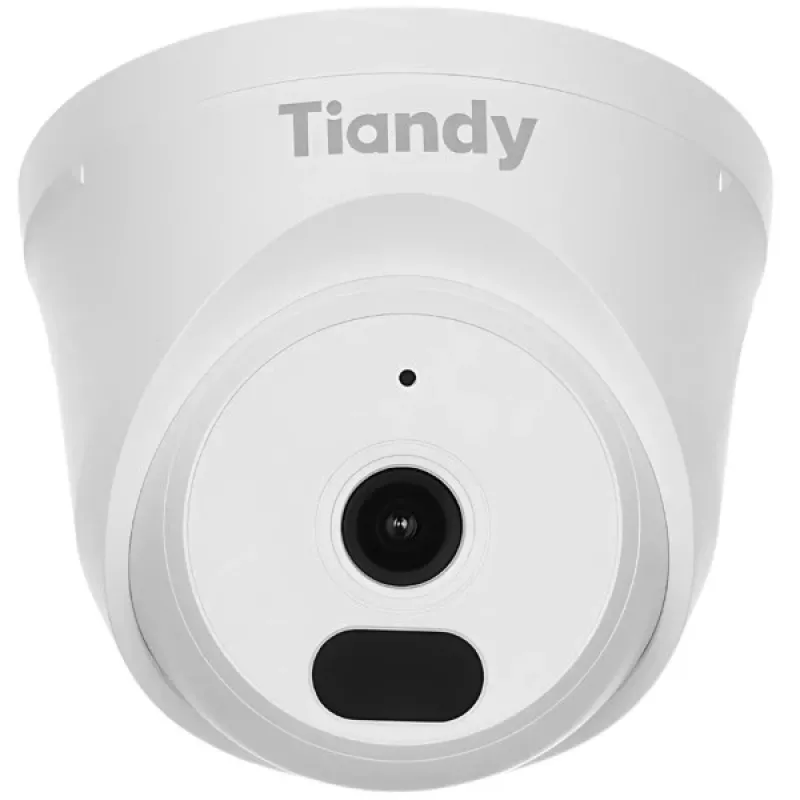

TIANDY TC-C320N 1CNB-28 IP-camera analog killer - 1080p 2,8mm

The TIANDY TC-C320N 1CNB-28 Analog Killer IP Camera delivers exceptional 1080p Full HD surveillance with a 2.8mm fixed lens, offering a wide 106.5° horizontal field of view. Designed to replace analog systems, this camera provides superior image quality and advanced features for modern security needs.

Advantages

Experience crystal-clear 2MP resolution with H.265 compression for efficient bandwidth and storage. The camera's 0.0008 Lux minimum illumination ensures vivid color images even in near darkness, while IR LEDs provide up to 30m night vision. With IP67 weatherproof rating, it withstands harsh outdoor conditions. Built-in motion detection, line crossing, intrusion, and region detection enhance security intelligence.

Suitable for

• Outdoor perimeter surveillance
• Retail stores and warehouses
• Office buildings and parking lots
• Residential property monitoring

Key specifications

• Image Sensor: 1/2.8" Progressive Scan CMOS
• Max Resolution: 1920 x 1080 (2MP)
• Lens: 2.8mm fixed, F2.0
• Field of View: 106.5° horizontal
• Video Compression: H.265 / H.264 / MJPEG
• Frame Rate: 30fps @ 1080p
• Minimum Illumination: 0.0008 Lux (Color), 0 Lux with IR
• IR Distance: Up to 30m
• Day/Night: IR-cut filter with auto switch
• WDR: Digital WDR (DWDR)
• Audio: Built-in microphone
• Local Storage: MicroSD up to 512GB
• Network: 1x RJ45 10/100M Ethernet
• Power: DC 12V / PoE (802.3af), max 4.5W
• Ingress Protection: IP67
• Operating Temperature: -30°C to 60°C
• Smart Features: Motion Detection, Line Crossing, Intrusion, Region Entrance/Exit

Recommendations

For optimal performance, use a PoE switch or injector compliant with IEEE 802.3af. Ensure the MicroSD card is high endurance for continuous recording. Mount the camera in a location with clear view of the area to be monitored.
