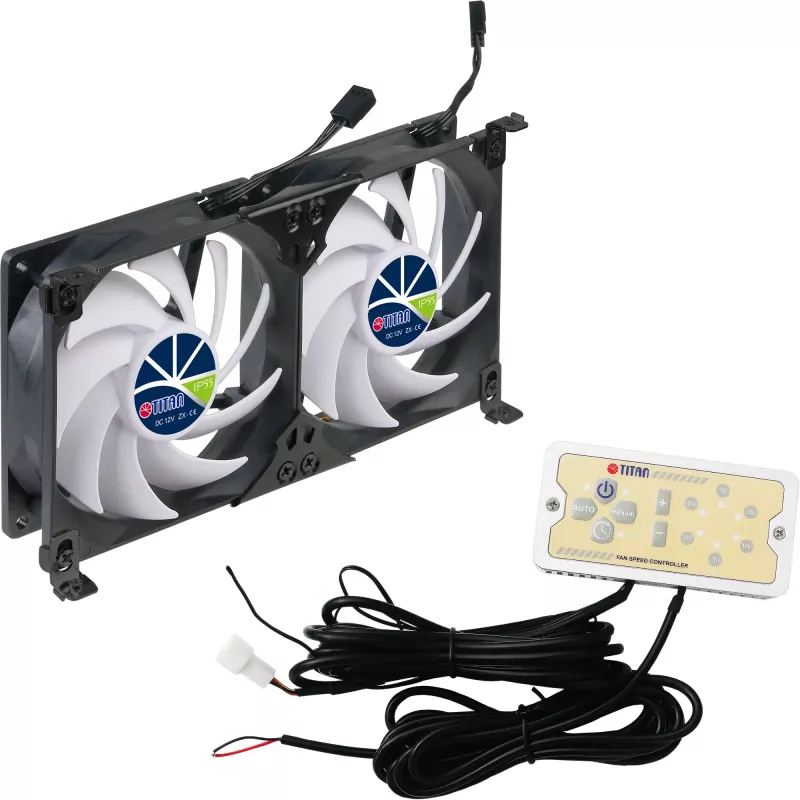

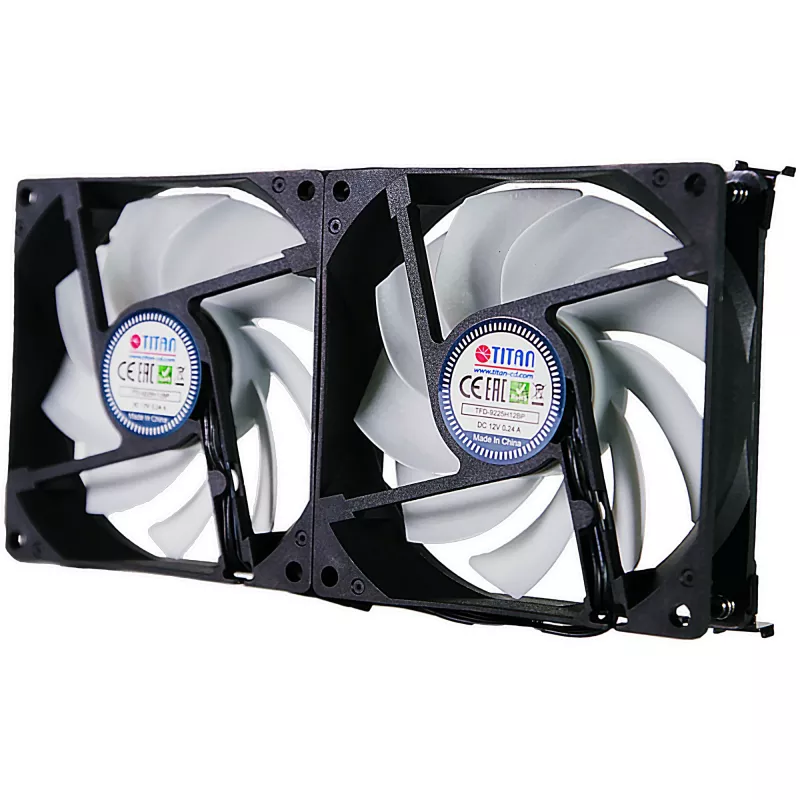

Titan TTC-SC22(A)/V2+ dubbele koelkastventilator 92x25mm IP55 voor camping

Overheating in your RV or camping refrigerator can spoil food and strain the cooling system. The Titan TTC-SC22(A)/V2+ Double Refrigerator Fan solves this by actively moving hot air away from the condenser, improving cooling efficiency and extending the life of your fridge. This set includes two 92mm fans with an IP55 rating, making them resistant to dust and water jets—ideal for outdoor and mobile environments.

Who is it for

Campers, RV owners, and anyone using a 12V refrigerator in a confined space. If your fridge struggles in warm weather or you want to reduce energy consumption, this fan kit is a practical upgrade. It's also suitable for general ventilation in small enclosures, electronics cabinets, or battery compartments.

Main features

• Dual 92x92x25mm fans for high airflow up to 153.6 CFM total
• IP55 ingress protection: dust-protected and resistant to low-pressure water jets
• Adjustable speed from 800 to 2000 RPM via included speed controller
• Low noise operation: <15 to <27.8 dBA per fan
• Z-axis bearing for long lifespan (60,000 hours MTBF)
• Wide voltage range 7–13.2V DC, suitable for 12V systems
• 100cm cable with 2-pin connector for easy installation

Specifications

• Fan dimensions (each): 92 x 92 x 25 mm
• Number of fans: 2
• Bearing type: Z-axis
• Rated voltage: 12 V DC
• Operating voltage range: 7 ~ 13.2 V DC
• Rated current: 0.24 A max
• Power consumption: 2.88 W max
• Fan speed: 800 ~ 2000 RPM ±10% (adjustable)
• Total airflow: 61.2 ~ 153.6 CFM
• Noise level (each): <15 ~ <27.8 dBA
• Static pressure (each): 0.02 ~ 0.12 InchH2O
• IP rating: IP55
• Connector: 2-pin with speed controller
• Lifespan: 60,000 hours
• Cable length: 100 cm
• Material: PBT frame, PC blade

Tips

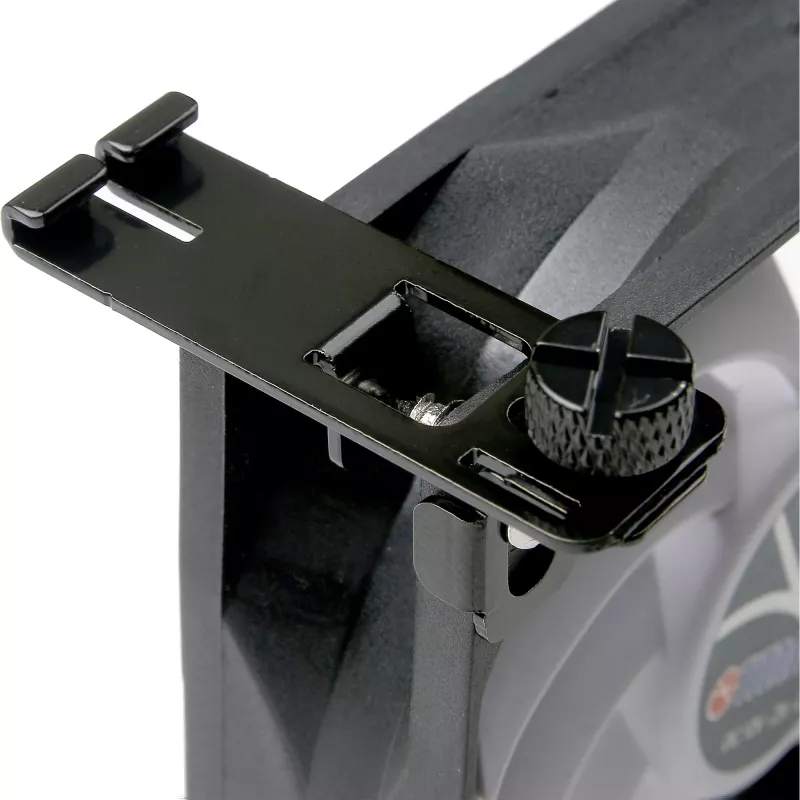

Mount the fans to blow air away from the refrigerator condenser or out of the ventilation grille for best results. Adjust the speed controller to balance airflow and noise—lower speeds are nearly silent for nighttime use. Ensure the IP55 rating is maintained by avoiding submersion and using the provided cable routing to prevent water ingress at connections.
