TMSS GERMANY inductieve naderingssensor XS8C4A1MPP20, rechthoekig, 20 mm detectie, PNP/NPN, M12-aansluiting

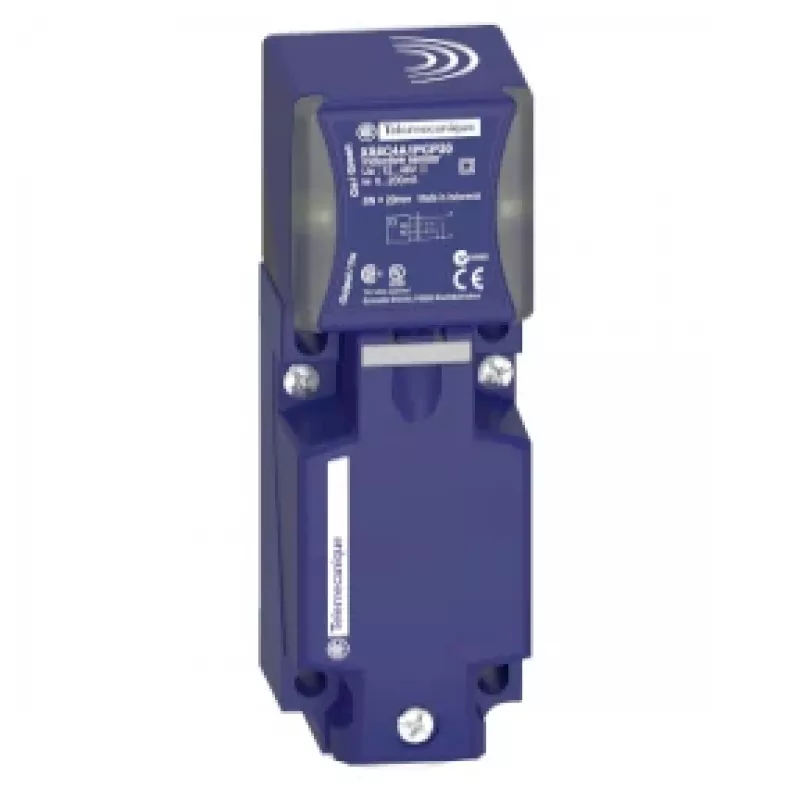

Inductive proximity sensor with a 20 mm nominal sensing distance and a rectangular, flat design. It provides programmable PNP or NPN discrete output, making it adaptable to various control systems.

Advantages

Robust PBT housing with PPS sensing face withstands harsh industrial environments. The M12 4-pin male connector allows quick and secure installation. A status LED provides immediate output indication.

Suitable for

• Position detection on automated machinery
• Presence sensing in assembly lines
• Object detection in material handling systems

Key specifications

• Sensor type: Inductive proximity sensor
• Series: OsiSense XS
• Sensor design: Rectangular, flat
• Nominal sensing distance: 20 mm
• Detection face: Frontal
• Housing material: PBT
• Front face material: PPS
• Output type: Discrete
• Wiring technique: 3-wire
• Discrete output type: PNP and NPN
• Discrete output function: 1 NO or 1 NC programmable
• Supply voltage limits: 10-58 V DC
• Switching frequency: ≤ 500 Hz
• Electrical connection: Male connector M12, 4 pins
• Operating temperature: -25 to 70 °C
• Status indicator: 1 LED (output state)

Recommendations

For reliable detection of metallic objects in demanding industrial settings, this sensor offers flexibility and durability.
