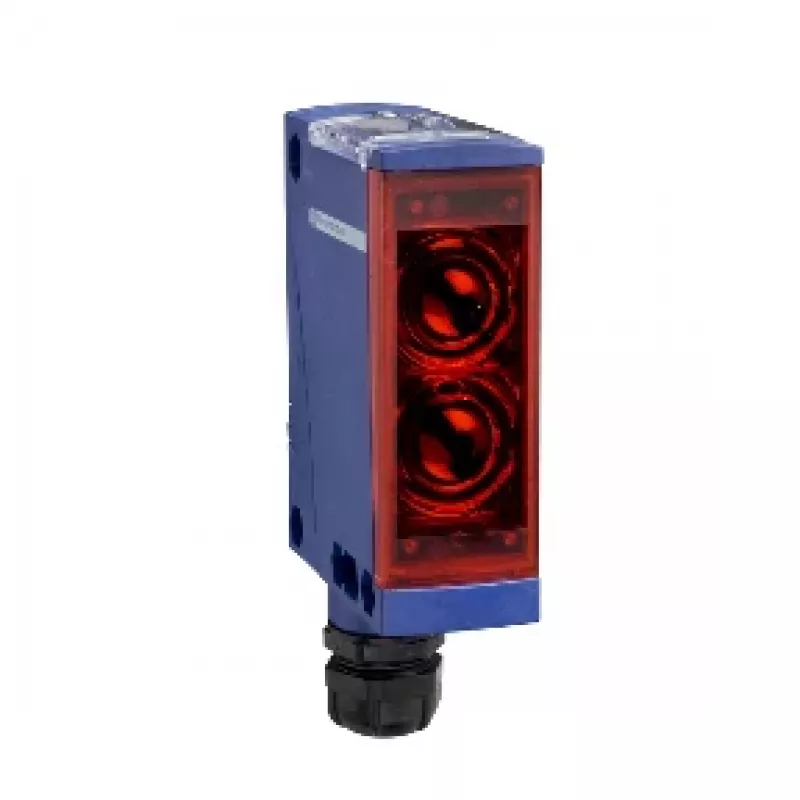

TMSS GERMANY Telemechanique Sensors reflex-lichtsluis zender/ontvanger XUX1ARCNT16

With a sensing range up to 16 m using reflector XUZC50, the XUX1ARCNT16 retro-reflective photoelectric sensor delivers reliable object detection in demanding industrial environments. Its solid-state output is programmable as 1 NO or 1 NC, and can be configured for PNP or NPN operation, offering flexibility for various control systems.

Overview

The sensor operates on a 12-24 V DC supply and features a red LED light source with pulsed emission for stable performance. A sensitivity potentiometer allows fine-tuning to the application. The M12 4-pin connector ensures quick and secure electrical connection.

What stands out

• Long sensing range: 0.1 to 16 m with reflector XUZC50
• Configurable output: 1 NO/NC, PNP/NPN
• Robust housing: PBT with PMMA lens, IP67/IP65/IP69K rated
• Fast response: < 2 ms, switching frequency 250 Hz
• Wide operating temperature: -25 to 55 °C

Technical details

• Sensor type: Retro-reflective
• Supply voltage: 12-24 V DC
• Current consumption: < 35 mA (no load)
• Connection: M12 connector, 4 pins
• Light source: Red LED, pulsed
• Adjustment: Sensitivity potentiometer
• Protection: Reverse polarity, short-circuit, overload
• Mounting: Panel mount, 2 x M4 screws

Our verdict

A versatile and rugged photoelectric sensor suitable for presence/absence detection in washdown and harsh environments. Its long range and configurable output make it a strong choice for automation engineers.
