TNC-bus voor crimpen van RG-59 DeLOCK 90031

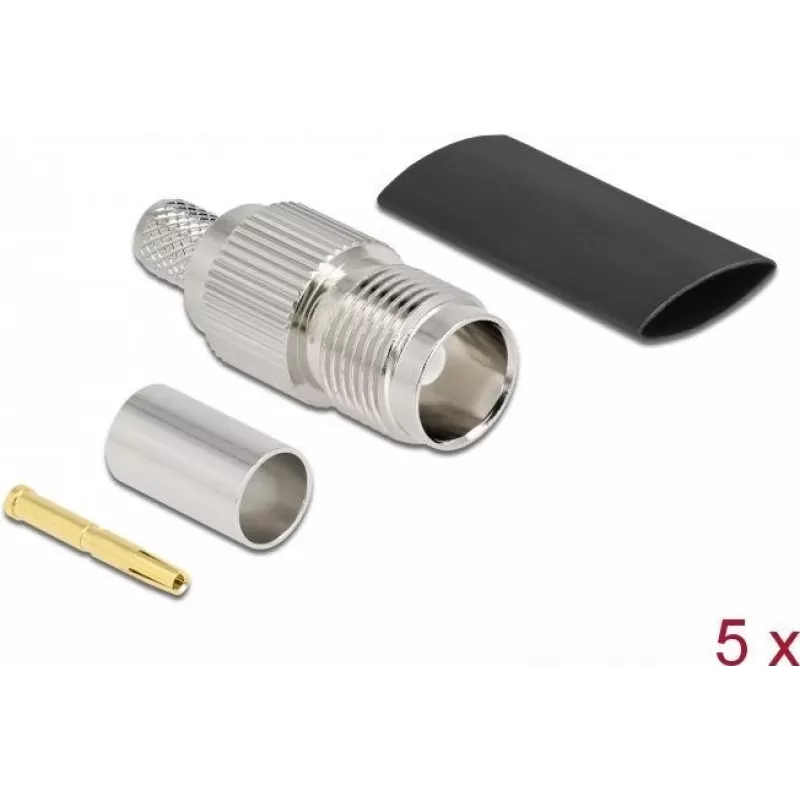

The DeLOCK TNC jack for crimping RG-59 cables is intended for use in radio frequency technology where a reliable 75 Ω connection is required. The connector includes a matching shrink tube and nickel-plated contacts for improved durability. Its compact dimensions (12 mm width, 30 mm depth, 12 mm height) make it easy to handle, and the pack contains five pieces, suitable for small installation or repair projects.

Advantages

The crimp TNC jack provides a defined 75 Ω impedance and nickel-plated contacts that resist corrosion and wear. The supplied shrink tube helps protect the cable termination and improves mechanical stability. The compact housing simplifies handling during assembly, and the pack of five connectors ensures multiple terminations are available without repeated purchases.

Suitable for

Key specifications

How to use

Prepare the RG-59 cable by stripping the outer jacket, braid and dielectric to the required lengths for the TNC crimp connector. Slide the supplied shrink tube onto the cable before fitting the connector. Assemble the connector parts according to the manufacturer’s crimping instructions, crimp the center pin and outer ferrule with the appropriate crimp tool, then apply heat to the shrink tube to secure and insulate the termination. Verify the mechanical and electrical connection after assembly.

Recommendations

Use the specified crimp tool and correct dimensioning for RG-59 to ensure a stable 75 Ω connection. Avoid excessive heat when shrinking the tube to prevent damage to the dielectric. Check continuity and impedance where precise RF performance is required.
