Touchscreen-toetsenbord SATEL INT-TSH2R-W 7 inch wit, wandgemonteerde gebruikersinterface

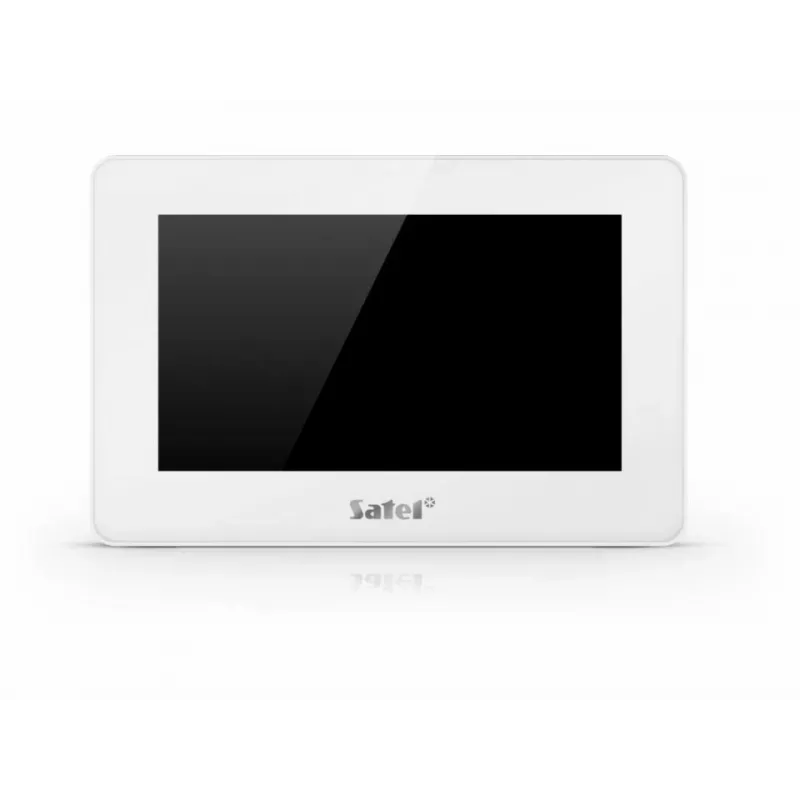

The SATEL INT-TSH2R-W is a 7-inch white touch screen keypad designed as a wall-mounted user interface for alarm and control systems. It features a color touch display that provides clear visual feedback for system status, menu navigation and basic control functions. Developed for integration with compatible SATEL control panels, the device enables everyday operations such as arming and disarming, monitoring zones and managing user access from a single, compact panel.

Advantages

The 7-inch color touch screen offers intuitive operation and readable status information from a short distance. Wall-mounted design provides a permanent, easy-to-reach control point for occupants and security personnel. The keypad supports simple menu-driven navigation and direct access to common functions, reducing the time required for routine tasks. Its white finish blends with typical indoor installations and the touch interface removes the need for mechanical buttons.

Suitable for

• Residential alarm control and zone monitoring
• Small and medium commercial premises requiring centralized user interface
• Reception or security stations needing quick system status checks and control
• Locations where a fixed, easy-to-use wall-mounted interface is preferred

Key specifications

• 7-inch color touch display for menu navigation and status visualization
• Wall-mounted enclosure designed for indoor installation
• User interface functions: arming/disarming, zone status viewing, user management
• Compatible with SATEL alarm control panels (integration depends on panel model and firmware)
• White housing suitable for typical interior environments

How to use

Install the keypad on a suitable indoor wall location at a comfortable height and connect it to the compatible control panel following the panel manufacturer’s wiring and configuration procedures. After integration with the control panel, use the color touch display to navigate menus, select arming modes, view zone statuses and manage user access. The touchscreen presents clear on-screen prompts; follow these prompts to complete common operations such as arming or disarming the system and checking alarms or faults.

Recommendations

Locate the device in an area with regular foot traffic but protected from direct sunlight and moisture. Verify compatibility and update control panel firmware if required before commissioning. For secure operation, configure individual user codes and review access rights periodically. Clean the touchscreen with a soft, dry or slightly damp cloth—avoid abrasive cleaners and liquids that could enter the enclosure.
