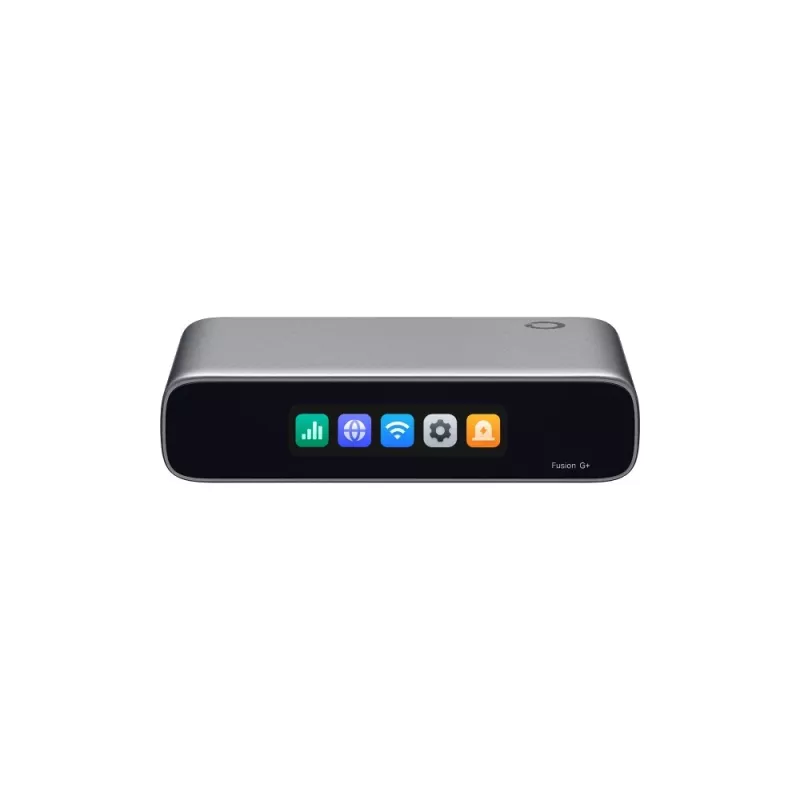

TP-LINK Omada Fusion G+ V2 Gigabit-VPN-Gateway met 5 poorten, Multi-WAN-loadbalancing en Omada-SDN-integratie

The TP-LINK Omada Fusion G+ V2 stands apart from ordinary routers by combining a full gigabit VPN gateway with centralized Omada SDN management, making it a true network command center for small and medium businesses. Instead of juggling separate devices for routing, security, and management, this single unit handles multi-WAN load balancing, IPsec/OpenVPN tunnels, and policy-based routing from one intuitive dashboard.

Highlights

• 5 Gigabit Ethernet ports: 1 dedicated WAN, 3 configurable WAN/LAN, and 1 dedicated LAN for flexible network topologies
• Multi-WAN load balancing with automatic failover to keep critical connections online
• Up to 20 IPsec VPN tunnels and 16 OpenVPN tunnels for secure remote access and site-to-site links
• Omada SDN integration via cloud, hardware, or software controller for centralized management of gateways, switches, and access points
• Robust firewall with SPI, DoS defense, and IP/MAC/URL filtering to protect the network edge
• Policy-based routing, bandwidth control, and VLAN (802.1Q) support for advanced traffic segmentation

In daily use

Deployment is straightforward: connect your ISP lines to the WAN ports, log into the Omada controller, and adopt the gateway. From there, you can create VLANs for guest, IoT, and corporate traffic, apply per-user bandwidth limits, and set up VPN tunnels for remote workers or branch offices. The Fusion G+ V2 delivers up to 940 Mbps NAT throughput, so even high-speed fiber connections run at full tilt. Its fanless desktop design ensures silent operation in offices or wiring closets, and the external 12V/1A adapter keeps power consumption low.

Full specifications

• Device type: Gigabit VPN router / network gateway
• Ethernet ports: 5 x 10/100/1000 Mbps RJ-45 (1 WAN, 3 WAN/LAN configurable, 1 LAN)
• VPN protocols: IPsec, PPTP, L2TP, OpenVPN
• IPsec VPN tunnels: up to 20
• OpenVPN tunnels: up to 16
• NAT throughput: approx. 940 Mbps
• IPsec VPN throughput: approx. 110 Mbps
• Firewall: SPI, DoS defense, IP/MAC/URL filtering
• Management: Omada SDN controller (cloud/hardware/software), web UI
• Advanced features: policy-based routing, bandwidth control, port mirroring, DDNS
• VLAN support: 802.1Q
• Power supply: external 12V/1A adapter
• Mounting: desktop
• Operating temperature: 0–40 °C (32–104 °F)
• Operating humidity: 10–90% non-condensing
• Certifications: CE, FCC, RoHS

Final note

The Omada Fusion G+ V2 is not just a router—it's the backbone of a scalable, centrally managed network. For businesses that need reliable multi-WAN connectivity, secure VPN access, and granular control without enterprise complexity, this gateway delivers exceptional value.
