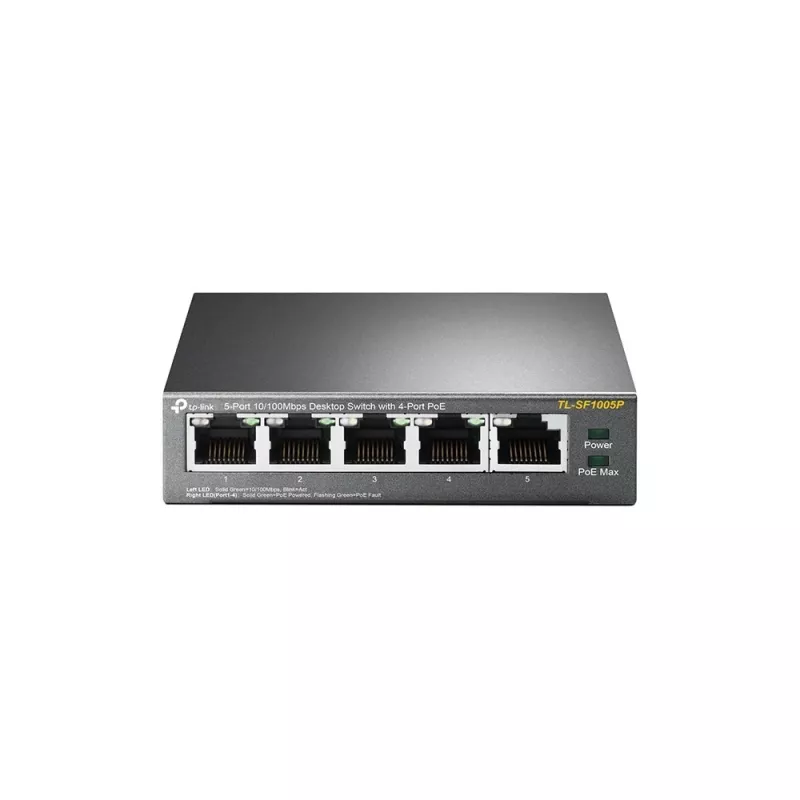

TP-Link TL-SF1005P 5-poorts 10/100 Mbps desktop PoE+ switch met 4 PoE+ poorten, 67W budget, Extend-modus

Installers setting up IP cameras or access points in small offices will appreciate the TL-SF1005P: four of its five ports deliver PoE+ power, so devices can be placed where power outlets are scarce. The fifth port serves as an uplink to the rest of the network.

Key specifications

• 5 × 10/100 Mbps RJ45 ports, 4 with PoE+ (IEEE 802.3af/at)
• 67 W total PoE power budget
• Switching capacity: 1 Gbps; packet forwarding rate: 0.744 Mpps
• MAC address table: 2K entries; jumbo frame support: 2 KB
• Fanless design for silent operation
• Extend Mode: PoE transmission up to 250 m at 10 Mbps
• Priority Mode and Isolation Mode for traffic control and security
• PoE Auto Recovery: automatically reboots unresponsive PoE devices
• External power adapter (53.5 VDC / 1.31 A)
• Desktop form factor; LED indicators for power, link/activity, and PoE status

Why choose it

The TL-SF1005P simplifies deployment of PoE-powered devices without the need for separate power injectors. Its fanless metal case dissipates heat quietly, and the Extend Mode overcomes the 100 m Ethernet limit for long-distance runs.

Ideal use cases

• Small office IP surveillance systems with up to four cameras
• Connecting PoE wireless access points in meeting rooms or lobbies
• VoIP phone deployments where local power is unavailable

Good to know

PoE power is supplied on ports 1–4 only; port 5 is a non-PoE uplink. The switch operates in temperatures from 0 °C to 40 °C and stores from -40 °C to 70 °C.
