TRIAX OTX1310KIT optische zender OTX 1310 met breedband-LNB TWB 40 307785

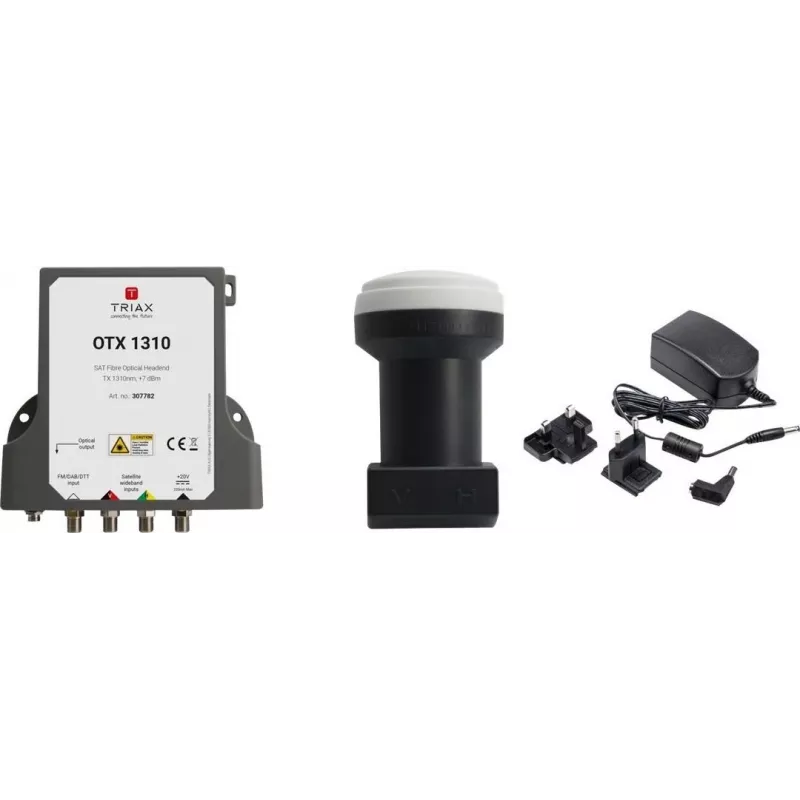

Distributing satellite TV signals over long distances in large residential or commercial buildings often means dealing with signal loss and bulky coaxial cabling. The TRIAX OTX1310KIT solves this by converting satellite RF signals into an optical signal for transmission over lightweight, low-loss fiber optic cable. This kit includes the OTX 1310 optical transmitter, a TWB 40 wideband LNB, and a 20V DC power supply, providing everything needed to launch a fiber-based satellite distribution system.

Who is it for

This kit is ideal for installers and system integrators working on multi-dwelling units (MDUs), hotels, hospitals, or FTTH (fiber-to-the-home) projects where satellite signals must be distributed to many outlets without degradation. It suits professionals who need a reliable, high-performance optical link for satellite TV distribution.

Main features

• Complete kit: optical transmitter, wideband LNB, and power supply
• Wideband LNB covers 10.7–12.75 GHz with two outputs (vertical and horizontal polarization)
• Optical transmitter with SC/APC connector and 1310 nm wavelength
• High optical output power of +7 dBm supports up to 32-way splitting
• Transmission distance up to 10 km over single-mode fiber
• Low noise figure of 0.1 dB for excellent signal quality
• Wide operating temperature range: -20°C to +50°C

Specifications

• LNB input frequency: 10.7–12.75 GHz
• LNB output frequency (IF): 290–2340 MHz
• LNB local oscillator: 10.4 GHz
• LNB noise figure: 0.1 dB (typical)
• LNB outputs: 2 (wideband vertical, wideband horizontal)
• Transmitter RF inputs: 2 (F-type)
• Optical output wavelength: 1310 nm
• Optical output power: +7 dBm (typical)
• Optical connector: SC/APC
• Power supply: 20V DC (included)
• Max optical splits: up to 32
• Max transmission distance: up to 10 km
• Operating temperature: -20°C to +50°C
• Application: satellite signal distribution over fiber optic cable

Tips

For optimal performance, use single-mode fiber with low insertion loss connectors. When planning a distribution network, account for optical splitter losses: each 1:2 split reduces power by about 3 dB. Ensure the power supply is connected before the transmitter to avoid damage. The wideband LNB should be mounted with a clear line of sight to the satellite, and the fiber run should be protected from sharp bends.
