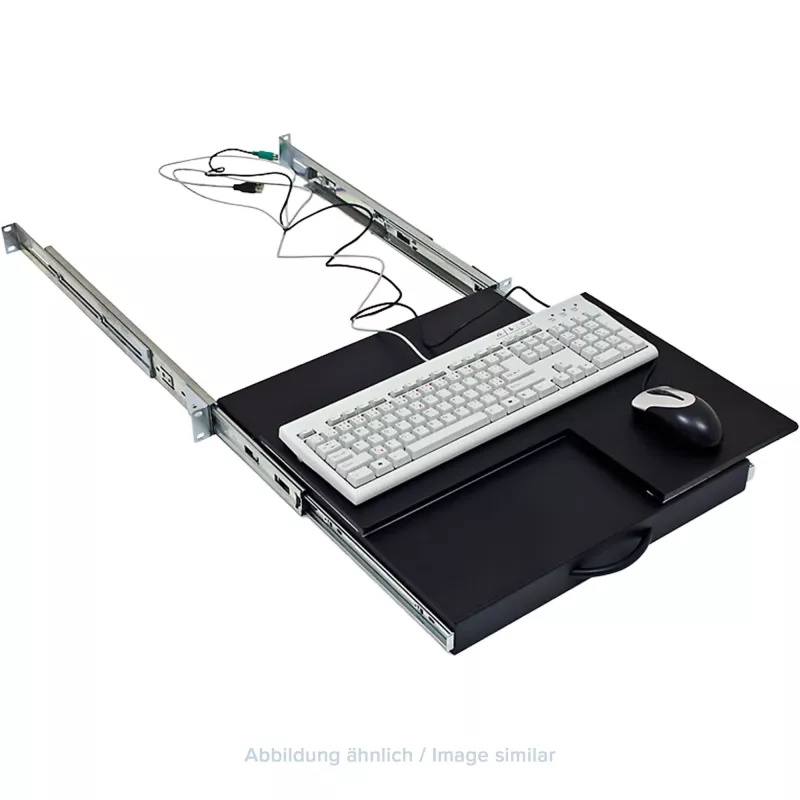

Triton RAB-UP-X40-A1 19 inch toetsenbord- en muislade met telescooprails, 1,5U

Server rooms and network cabinets often leave no space for a keyboard and mouse, forcing technicians to balance them on laps or nearby equipment. The Triton RAB-UP-X40-A1 solves this by providing a sturdy pull-out shelf that mounts directly into standard 19-inch racks. When not in use, it slides away neatly, keeping your workspace clear and your equipment accessible.

Who is it for

This slide is ideal for IT professionals, data center managers, and anyone who needs occasional console access to rack-mounted servers, KVM switches, or network devices. It suits both enterprise server rooms and smaller network closets where space is at a premium.

Main features

• 1.5U height: occupies minimal rack space, leaving more room for other equipment.
• Telescopic ball bearing rails: smooth, reliable sliding action with full extension for comfortable typing.
• Durable steel construction with black powder-coated finish: resists scratches and corrosion, blends with standard rack aesthetics.
• Supports up to 10 kg: accommodates full-size keyboards and mice without sagging.
• Front rack mounting: easy installation on 19" vertical profiles using included screws.
• Usable shelf depth of 400 mm: provides ample space for keyboard and mouse pad.

Specifications

• Rack unit height: 1.5U
• Rack standard: 19-inch
• Shelf type: pull-out keyboard and mouse shelf
• Mounting position: front rack mount
• Rail system: telescopic ball bearing rails
• Material: steel
• Color: black (RAL 9005)
• Maximum load capacity: 10 kg
• Usable shelf depth: 400 mm
• Overall product width: 482.6 mm
• Overall product height: 66.675 mm
• Surface finish: powder-coated
• Compatibility: standard 19" server racks and cabinets
• Installation type: fixed to 19" vertical profiles
• Included accessories: mounting screws
• Product series: RAB-UP Series

Tips

For optimal stability, ensure the rack posts are properly aligned before tightening the mounting screws. If you plan to use a wireless keyboard and mouse, consider adding a USB receiver extender to avoid signal interference from metal rack components.
