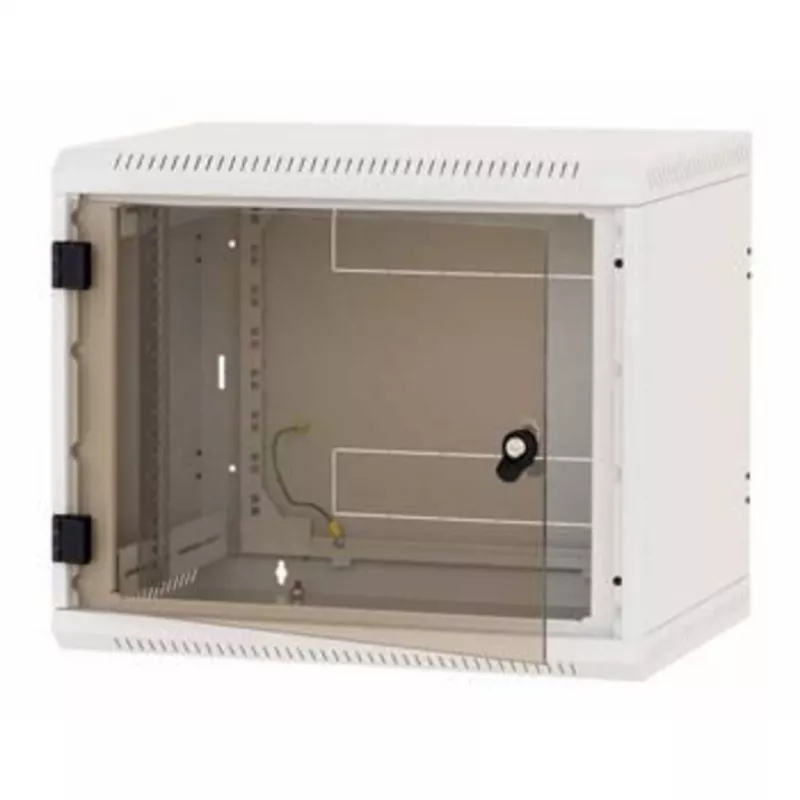

TRITON RBA-04-AS6-CAX-A1 4U 19 inch wandmontage-netwerkkast - grijs (RAL 7035)

The TRITON RBA-04-AS6-CAX-A1 is a robust 4U wall-mount network cabinet designed for secure and organized installation of 19-inch rack equipment. Constructed from cold-rolled steel with a powder-coated finish in grey (RAL 7035), this enclosure offers durability and a professional appearance. The front door features a tempered glass panel with a steel frame, providing visibility while maintaining security with a lockable mechanism (2 keys included). Removable screw-fixed side panels allow easy access for cable management and maintenance.

Advantages

Space-saving wall-mount design ideal for small to medium network setups. The lockable glass door protects equipment while allowing LED status monitoring. Passive ventilation with fan-ready cutouts ensures adequate cooling. Cable entry points at top and bottom with brush strips keep cables organized and dust-free.

Suitable for

• Network switches, patch panels, and small servers in office or industrial environments
• Wall-mounted installations where floor space is limited
• Secure housing for critical network infrastructure

Key specifications

• Rack capacity: 4U, 19-inch width
• External dimensions (WxHxD): 540 x 240 x 400 mm
• Usable depth: 350 mm
• Material: Cold-rolled steel, powder coated
• Front door: Tempered glass with steel frame, lockable
• Side panels: Removable, screw-fixed
• Max static load: 30 kg
• Protection rating: IP20
• Included accessories: Mounting kit, 2 keys, 8x cage nuts

Recommendations

This cabinet is perfect for consolidating network equipment in a tidy, secure wall-mounted enclosure. Ensure adequate ventilation and consider adding optional fans for high-density setups.
