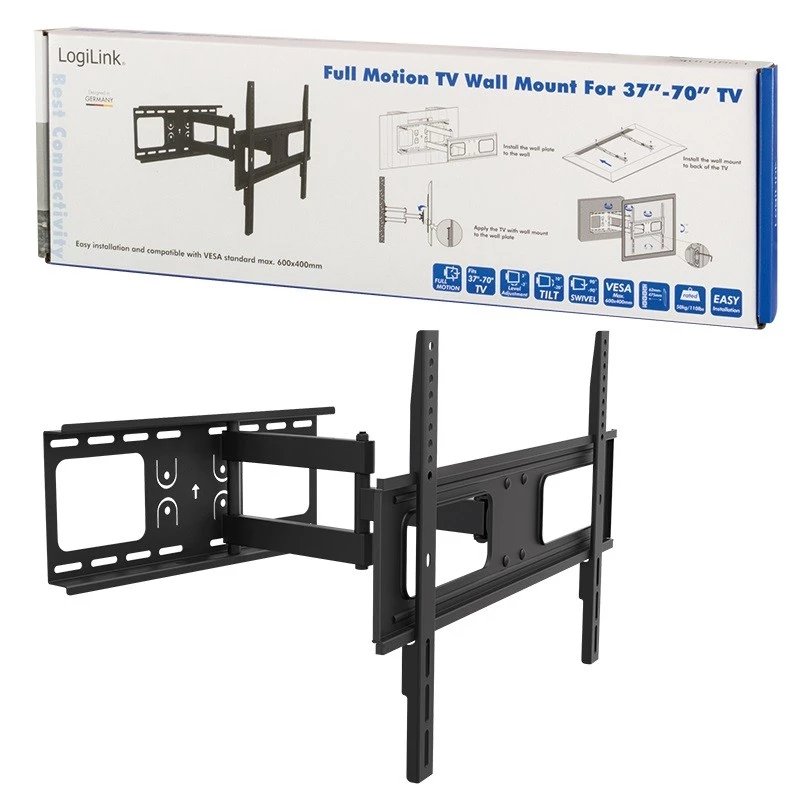

Tv-beugel LogiLink BP0028 177,8 cm (70 inch) zwart

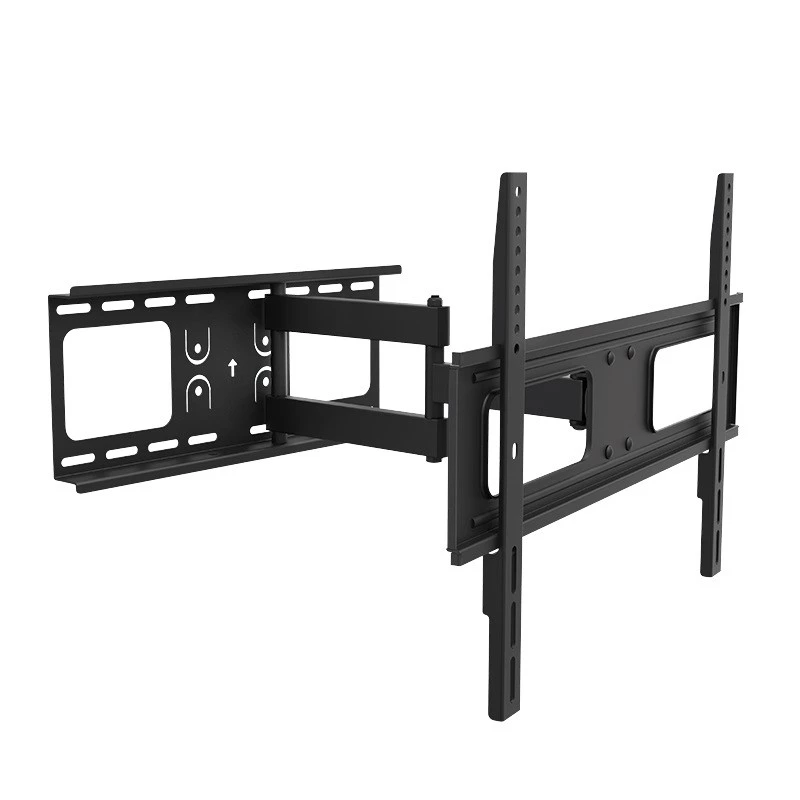

The LogiLink BP0028 TV mount supports flat screens from 94 cm (37") up to 177.8 cm (70") and holds up to 50 kg. It offers adjustable height, tilt and swivel to position the display for optimal viewing while maintaining a compact distance from the wall. The black finish and VESA compatibility make it suitable for a variety of monitors and TVs in offices or home installations.

Advantages

The mount provides a wide range of motion with tilt from -20° to 10° and swivel from -90° to 90°, plus fine height adjustment between -3 mm and 3 mm. VESA compatibility from 200 x 200 mm to 600 x 400 mm and an adjustable wall distance of 6.2 cm to 47.5 cm allow flexible placement. Its 50 kg load capacity supports most large TVs up to 70" while keeping a low-profile black design.

Suitable for

• Office workstations and meeting rooms
• Home living rooms and bedrooms
• Digital signage and display installations

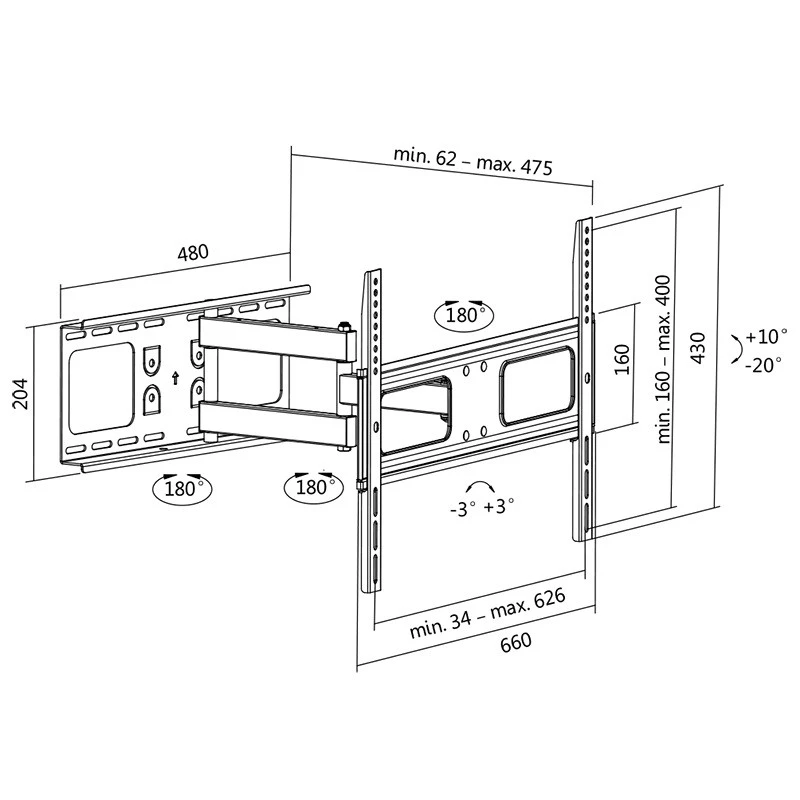

Key specifications

• Maximum screen size: 177.8 cm (70")
• Maximum weight capacity: 50 kg
• VESA compatibility: 200 x 200 mm to 600 x 400 mm
• Height adjustment: -3 mm to 3 mm
• Tilt range: -20° to 10°
• Swivel range: -90° to 90°
• Distance from wall: 6.2 cm to 47.5 cm
• Colour: Black

How to use

Attach the mount to a suitable solid wall following the included installation instructions and using appropriate anchors for your wall type. Secure the TV to the VESA-compatible mounting plate, then adjust height, tilt and swivel to achieve the desired viewing angle. Ensure all screws and fasteners are tightened and verify the mount supports the TV weight before regular use.

Recommendations

Verify your TV's VESA pattern and weight before installation. Use appropriate fixings for the wall material and, when in doubt, consult a professional installer to ensure safe and secure mounting.
