TV-beugel LogiLink BP0047 177,8 cm 70 inch zwart roestvrij staal

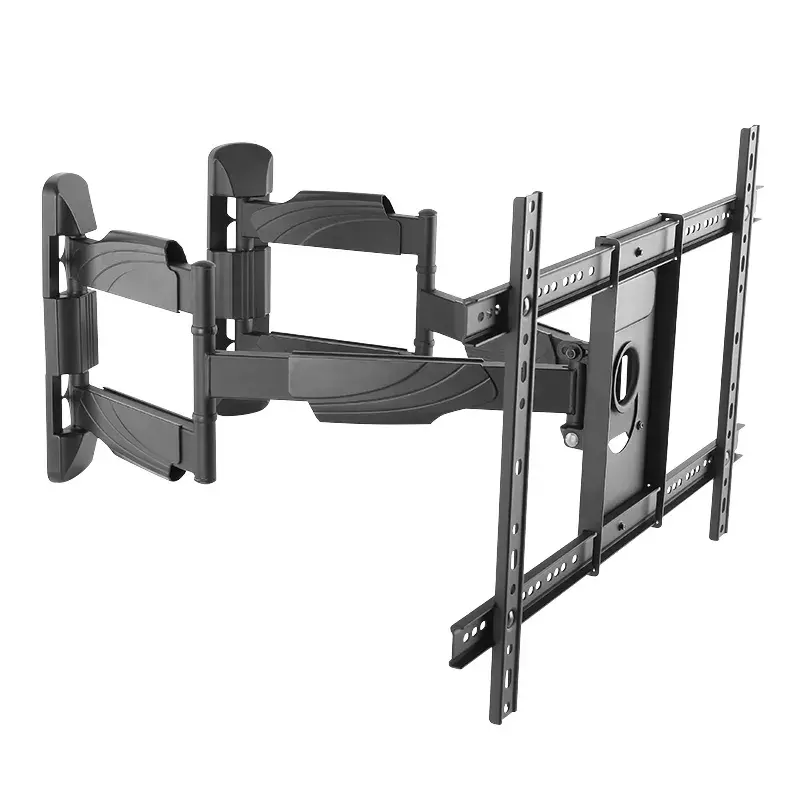

The LogiLink BP0047 TV mount is a wall bracket for flat screens from 37" (94 cm) up to 70" (177.8 cm). It supports a maximum load of 45 kg and is compatible with VESA patterns up to 600 x 400 mm. The mount offers tilt, swivel and level adjustments and a maximum extension from the wall of 620 mm, providing flexible positioning for office or home environments.

Advantages

The fully movable screen mounts allow pan and tilt movement for precise alignment. The double mounting option enables installation in corners, while the compact design saves space and provides a solid, secure hold. Built from stainless steel and finished in black, the mount combines durability with a neutral look that fits most interiors.

Suitable for

• 37–70" (94–177.8 cm) LCD, LED, PC and TV monitors
• Screens up to 45 kg
• Rooms where corner mounting or adjustable viewing angles are needed

Key specifications

• Carrying capacity: max. 45 kg / 99 lbs
• VESA compatibility: 200x200, 300x200, 300x300, 400x200, 400x300, 400x400, 600x400 mm
• Mounting adjustments: tilt -8°/+5°, swivel -90°/+90°, level adjustment -5°/+5°
• Maximum screen size: 70" (177.8 cm)
• Wall clearance (maximum extension): 620 mm
• Colour/material: Black, Stainless steel

How to use

Attach the mount to a suitable load-bearing wall following the included instructions and ensure the chosen VESA holes on the screen match the mount’s pattern. Fasten the mount securely, adjust the tilt, swivel and level to the desired viewing position, and verify that the screen is stable and within the 45 kg weight limit.

Recommendations

Check wall type and use appropriate anchors for the combined weight of the mount and display. Periodically verify fastenings and adjustment settings to maintain safe and stable installation.
