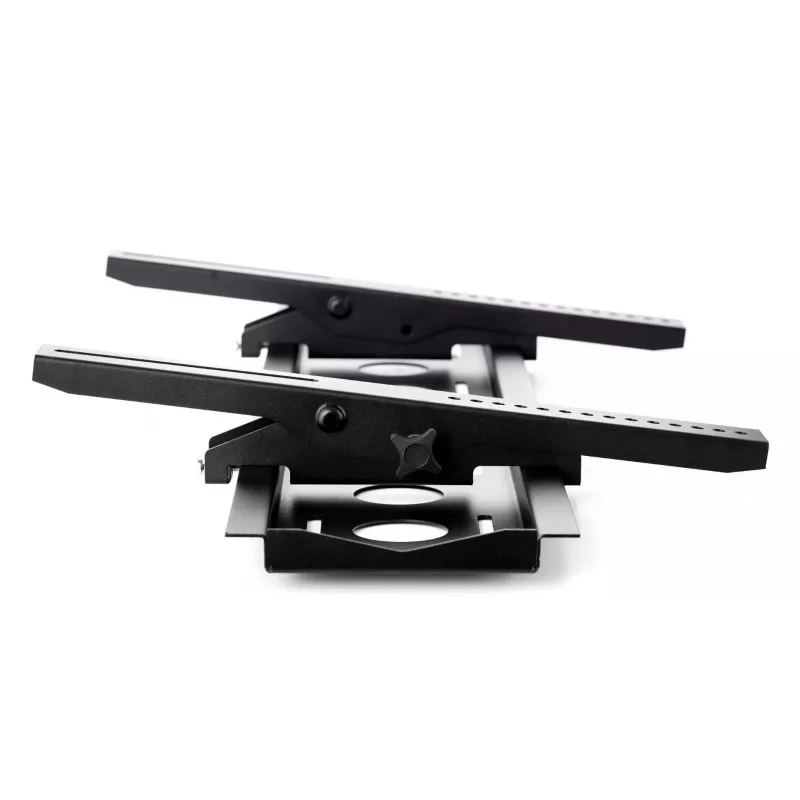

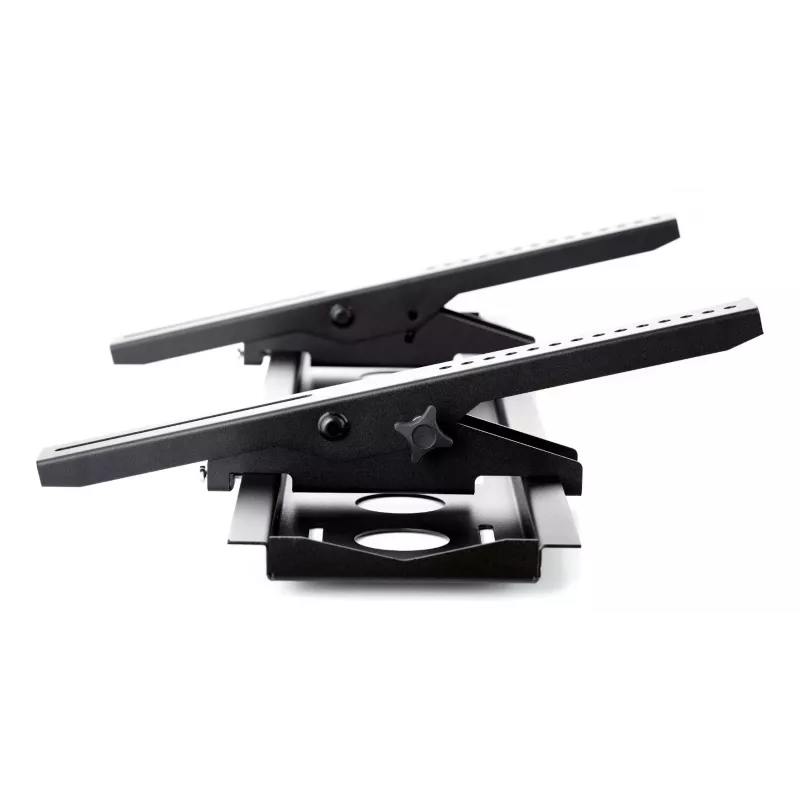

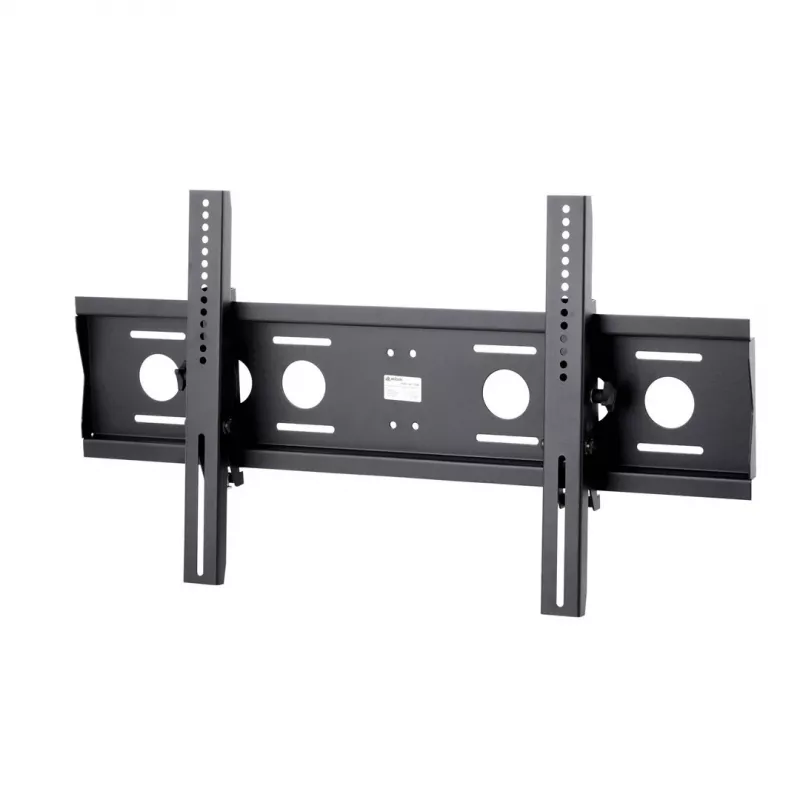

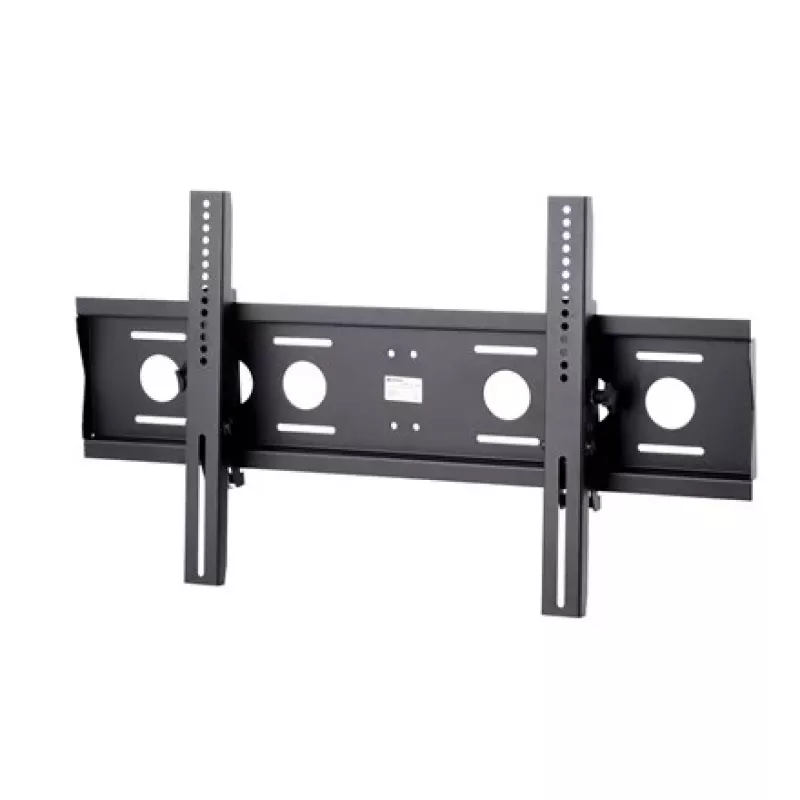

TV-wandbeugel Edbak TWB2 2,18 m (86 inch)

The Edbak TWB2 wall mount is designed for medium to large flat screens from 65" (165.1 cm) up to 86" (218 cm). This robust tilting mount combines a minimalist appearance with practical features: a low profile with 7.7 cm distance to the wall, secure protection against accidental dislodging, and a durable black finish suitable for conference rooms, waiting areas and other public or professional environments.

Advantages

The TWB2 offers a wide VESA compatibility range (100 x 100 mm to 800 x 400 mm) and supports screens weighing up to 80 kg, allowing installation of most 65"–86" displays. Its tilt range of -10° to 5° improves viewing angles while maintaining a compact, space-saving profile. The mount is engineered for straightforward installation on various wall surfaces and provides stable, secure support for a single display.

Suitable for

• Conference rooms and meeting spaces
• Reception and waiting areas
• Public displays in offices or retail
• Home media walls with large TVs (65"–86")

Key specifications

• Supported screen size: 65"–86" (165.1 cm–218 cm)
• Maximum weight capacity: 80 kg
• VESA compatibility: 100 x 100 mm up to 800 x 400 mm
• Tilt range: -10° to 5°
• Distance to wall: 7.7 cm
• Colour: Black
• Number of displays: 1
• Product weight: 5.5 kg

How to use

Mount the TWB2 to a suitable load-bearing wall following the included fixing instructions: mark and drill holes to match the mounting plate, secure the bracket with appropriate anchors or bolts for the wall type, attach the display using compatible VESA holes, and adjust the tilt between -10° and 5° for optimal viewing. Ensure the TV is fully engaged with the safety features to prevent accidental disengagement.

Recommendations

Verify wall strength and use appropriate fixings for the wall material and the combined weight of the mount and display. For heavy installations near the 80 kg limit, two people are recommended during mounting and adjustment to ensure safety.
