Uitbreidingsmodule Avigilon OP-EX-8E zwart wit 120 mm x 206 mm

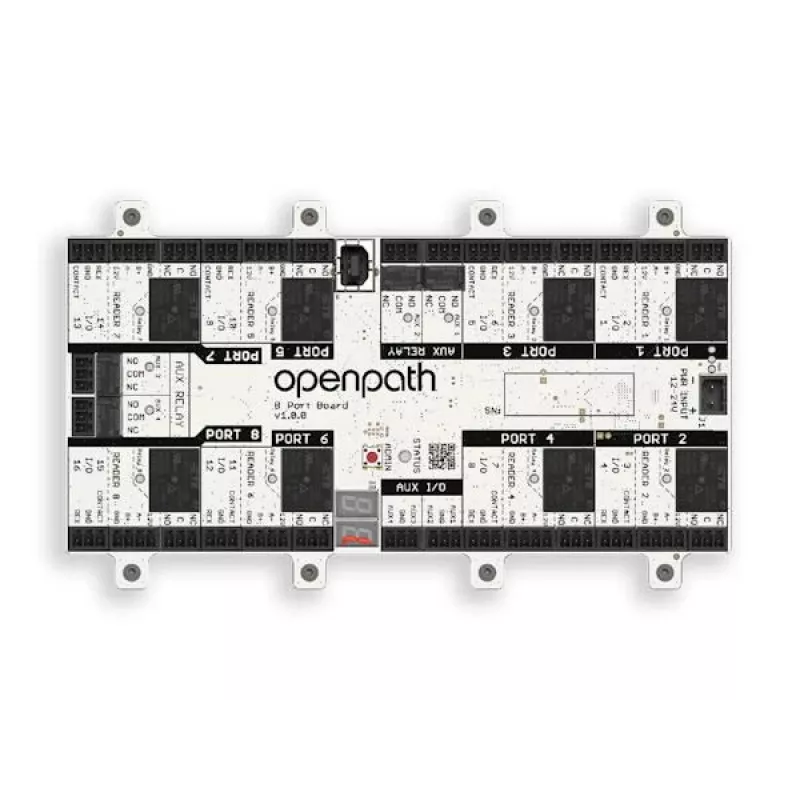

The Avigilon OP-EX-8E Expansion module is an 8‑port access control board (no enclosure, no power supply) that connects to the Access Control Core (OP-ACC). It supports up to eight entries and up to eight Avigilon Smart Readers, and works with the Access Control Core to make secure entry decisions. The module has a compact form factor (120 mm x 206 mm) and weighs 227 g; it is available in black or white to suit different installation environments.

Advantages

The OP-EX-8E provides additional reader and door-port capacity without requiring a dedicated enclosure or power supply, enabling straightforward expansion of Avigilon access control installations. Its compatibility with Avigilon Smart Readers and the Access Control Core ensures centralized, secure decision-making. The compact dimensions and light weight facilitate installation in a variety of mounting locations.

Suitable for

• Expanding Avigilon access control systems to add up to eight additional entry points
• Integrations where Avigilon Smart Readers are used
• Installations requiring a compact, lightweight expansion board without integrated enclosure

Key specifications

• Manufacturer: Avigilon
• Model / MPN: OP-EX-8E
• Type: 8‑port expansion access control board (no enclosure, no power supply)
• Compatibility: Works with Access Control Core (OP-ACC) and Avigilon Smart Readers
• Supported ports/readers: Up to 8 entries and 8 Avigilon Smart Readers
• Dimensions: 120 mm x 206 mm
• Weight: 227 g
• Colors: Black, White
• EAN: 5715063755488

How to use

Mount the OP-EX-8E expansion board in a suitable enclosure or mounting location and connect it to the Access Control Core (OP-ACC) following Avigilon installation guidelines. Connect Avigilon Smart Readers and door hardware to the appropriate ports on the board. Ensure that power is supplied from an appropriate external source and that wiring complies with local regulations and Avigilon wiring diagrams. Configure the Access Control Core to recognise the expansion board and assign reader and door functions through the management software.

Recommendations

Use the OP-EX-8E as part of a supported Avigilon access control architecture; maintain firmware and software updates on the Access Control Core and readers, follow Avigilon installation and wiring instructions, and install the board within a suitable enclosure with appropriate power provisioning to ensure reliable operation.
