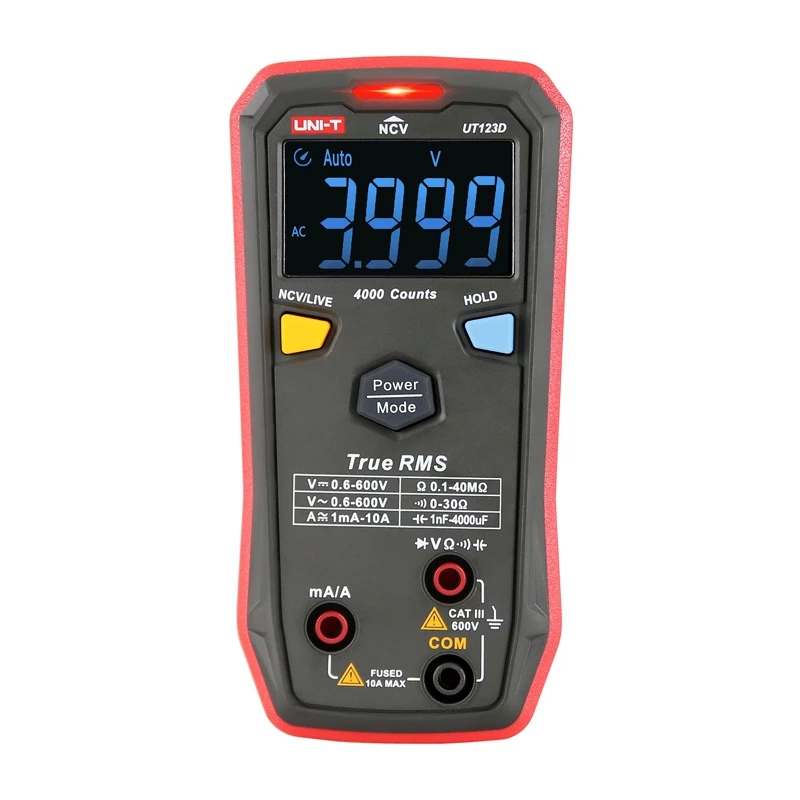

UNI-T UT123D Slimme digitale multimeter

The UNI-T UT123D is a smart digital multimeter for everyday measurements at home, during DIY work, or in harsh lighting conditions. It automatically detects AC/DC voltage, resistance, diodes and circuit continuity, and with the touch of a button allows manual mode selection, including capacitance measurement. The compact design and easy-to-read EBTN display ensure convenient operation in any conditions.

Key features

• Automatic detection of AC/DC voltage, resistance, diodes and circuit continuity
• Manual mode selection via button, including capacitance measurement
• True RMS function for precise measurements even for non-sinusoidal signals
• NCV/Live technology for safe voltage detection without contacting wires
• EBTN display for readability in low-light conditions
• Automatic shut-off to save power
• Data Hold function to keep the measurement result on the screen
• Acoustic-optical signaling for voltage, circuit continuity or low charge
• Compact design

Specifications

• Brand: Uni-T
• Model: UT123D
• Power supply: 2 × battery 1.5 V (R03)
• Display: 44 mm × 26 mm
• Weight: 130 g
• Dimensions: 130 mm × 65 mm × 28 mm
• DC voltage: 600 V ±(0.5%+3)
• AC voltage: 600 V ±(0.8%+3)
• DC current: 10 A ±(1%+3)
• AC current: 10 A ±(1.2%+3)
• Resistance: 40 MΩ ±(0.8%+2)
• Capacitance: 4000 µF ±(4%+5)
