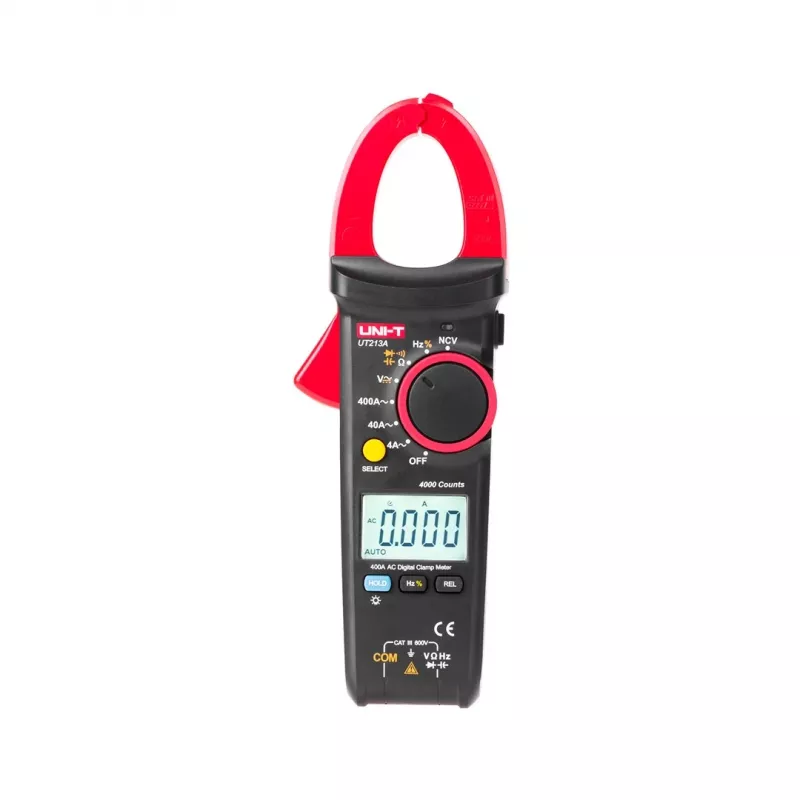

UNI-T UT213A Digitale Tangmultimeter True RMS 6000 Counts AC/DC Stroom 40A/400A

The UNI-T UT213A is a professional digital clamp meter designed for electricians and technicians. It offers True RMS measurement for accurate readings on non-linear loads. With a 6000-count display and a wide range of functions including AC/DC current up to 400A, AC/DC voltage, resistance, capacitance, frequency, and temperature, this meter is ideal for industrial, commercial, and residential electrical troubleshooting. The 30mm jaw opening accommodates cables up to 30mm diameter, and features like NCV, diode test, continuity, data hold, MAX/MIN, and backlight enhance usability.

Advantages

True RMS ensures accurate measurements even with distorted waveforms. The large 6000-count LCD with backlight allows easy reading in dim environments. Auto-ranging simplifies operation, while the data hold and MAX/MIN functions help capture fluctuating values. The non-contact voltage detector adds safety by identifying live wires without direct contact.

Suitable for

• Electricians performing maintenance and troubleshooting
• HVAC technicians measuring current and voltage
• Industrial engineers monitoring electrical systems
• DIY enthusiasts working on home electrical projects

Key specifications

• True RMS measurement
• AC Current: 40A / 400A
• DC Current: 40A / 400A
• AC Voltage: 4V / 40V / 400V / 600V
• DC Voltage: 400mV / 4V / 40V / 400V / 600V
• Resistance: 400Ω / 4kΩ / 40kΩ / 400kΩ / 4MΩ / 40MΩ
• Capacitance: 4nF / 40nF / 400nF / 4µF / 40µF / 400µF / 4mF / 40mF
• Frequency: 10Hz - 1MHz
• Temperature: -40°C to 1000°C (-40°F to 1832°F)
• Jaw Opening: 30mm
• Non-Contact Voltage (NCV): Yes
• Diode Test: Yes
• Continuity Test: Yes
• Data Hold: Yes
• MAX/MIN Function: Yes
• Backlight: Yes
• Auto Range: Yes
• Power: 3 x AAA 1.5V Batteries

Recommendations

For accurate and safe electrical measurements, the UNI-T UT213A is a reliable choice. Its comprehensive feature set and True RMS capability make it suitable for both professional and hobbyist use. Always follow safety guidelines when working with live circuits.
