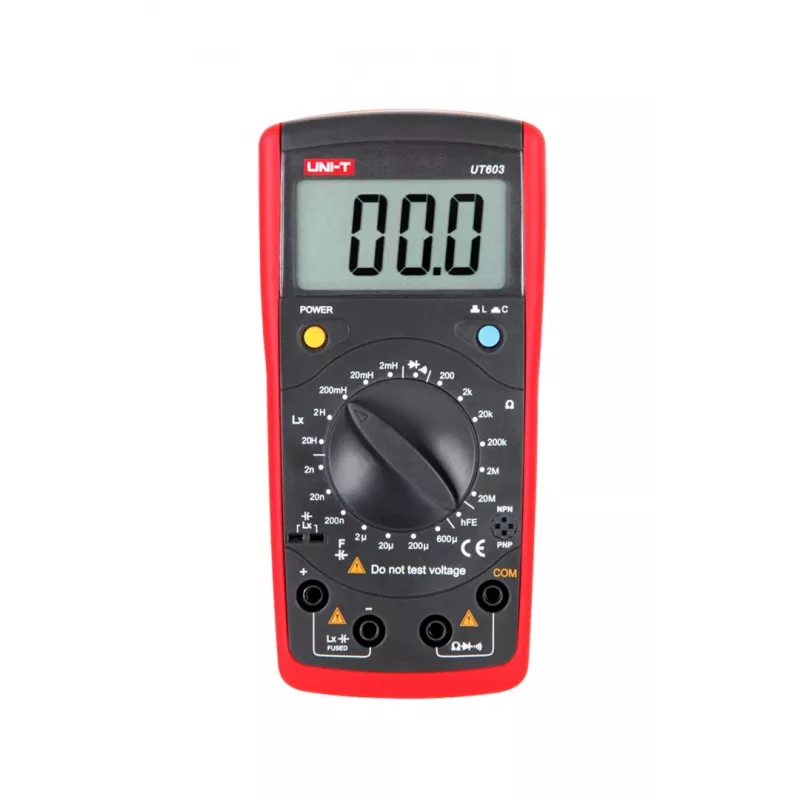

UNI-T UT603 inductie-, capaciteits- en weerstandsmeter

When troubleshooting electronic circuits, accurate measurement of inductance, capacitance, and resistance is critical, yet many multimeters lack inductance capability. The UNI-T UT603 fills this gap with a dedicated LCR meter that handles inductors, capacitors, resistors, diodes, and transistors, making it an essential tool for electronics repair, prototyping, and education.

Who is it for

This meter suits electronics hobbyists, repair technicians, students, and engineers who need a reliable, portable instrument for component testing and circuit diagnostics. Its simple rotary dial and clear LCD make it accessible for beginners while offering the ranges professionals require.

Main features

• Measures inductance (2mH to 20H), capacitance (2nF to 600µF), and resistance (20Ω to 20MΩ)
• Additional diode test, transistor hFE test, and continuity buzzer for quick checks
• 1999-count LCD with data hold and low battery indication
• Powered by a standard 9V battery (6F22) for portability
• Compact and lightweight design with protective holster
• CE certified for safety and quality assurance

Specifications

• Resistance ranges: 20Ω, 200Ω, 2kΩ, 20kΩ, 200kΩ, 2MΩ, 20MΩ
• Capacitance ranges: 2nF, 20nF, 200nF, 2µF, 20µF, 200µF, 600µF
• Inductance ranges: 2mH, 20mH, 200mH, 2H, 20H
• Display: 1999-count LCD
• Diode test: Yes
• Continuity buzzer: Yes
• Transistor hFE test: Yes
• Data hold: Yes
• Low battery indication: Yes
• Power supply: 9V battery (6F22)
• Operating temperature: 0°C to 40°C (32°F to 104°F)
• Storage temperature: -10°C to 50°C (14°F to 122°F)
• Safety compliance: CE

Tips

Always discharge capacitors before testing to avoid damage. For inductance measurements, use short test leads to minimize stray inductance. Replace the 9V battery when the low battery indicator appears to maintain accuracy.
