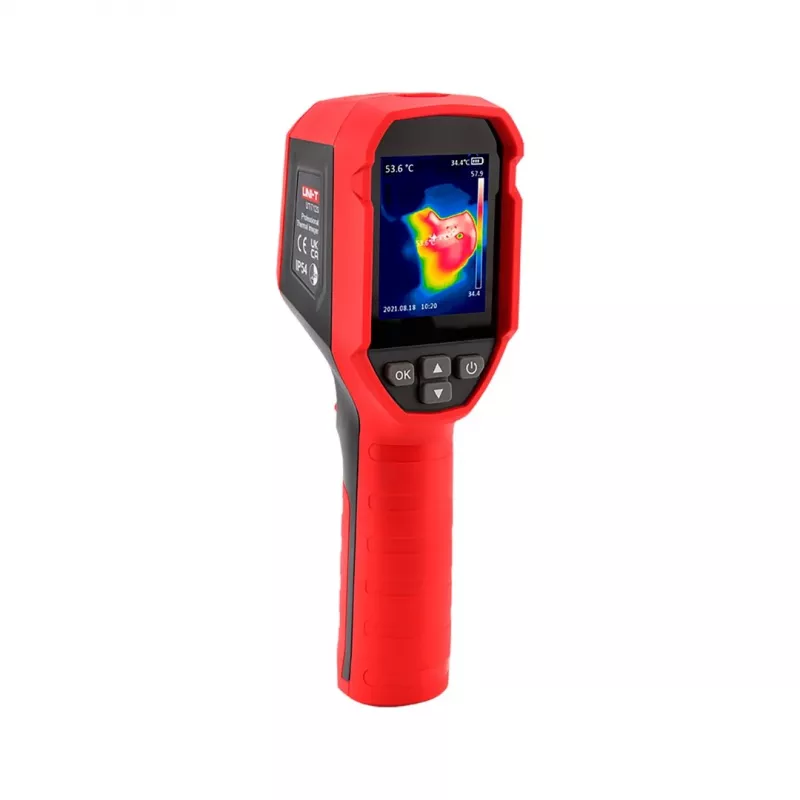

Uni-T UTi712S warmtebeeldcamera

The Uni-T UTi712S is a professional thermal imaging camera designed for electrical maintenance, building diagnostics, and mechanical inspections. It offers high-resolution thermal imaging with a 160x120 pixel IR sensor, providing accurate temperature measurements from -20°C to 300°C. The device features a 2.4-inch TFT LCD display, built-in LED flashlight, and supports image capture in both thermal and visual modes. With its ergonomic design and intuitive interface, the UTi712S is an essential tool for technicians and engineers.

Advantages

High thermal sensitivity (<0.08°C) ensures precise detection of temperature anomalies. The camera's compact and lightweight design (approximately 0.3 kg) makes it easy to carry and use in tight spaces. It offers multiple color palettes (ironbow, rainbow, etc.) for enhanced image analysis. The built-in memory stores up to 2000 images, and the USB interface allows easy data transfer to a PC.

Suitable for

• Electrical panel inspections
• Building envelope diagnostics
• HVAC system troubleshooting
• Mechanical equipment monitoring
• Preventive maintenance

Key specifications

• Brand: Uni-T
• Model: UTi712S
• MPN: UTi712S
• EAN: 5901890096263
• Category: Thermal Imaging Cameras
• Product colour: Yellow and Black
• Built-in display: Yes
• Internal memory: Yes
• Weight: 0.3 kg
• Width: 100 mm
• Depth: 60 mm
• Height: 200 mm
• Operating temperature (T-T): -10°C to 50°C
• Storage temperature (T-T): -20°C to 60°C
• Certification: CE, FCC, RoHS
• Compliance certificates: CE, FCC, RoHS
• AC input voltage: 5 V DC
• AC input frequency: N/A
• Package weight: 0.5 kg
• Package width: 150 mm
• Package depth: 100 mm
• Package height: 250 mm

Recommendations

For optimal performance, use the UTi712S in indoor environments with stable lighting. Regularly calibrate the camera to ensure accurate temperature readings. The device is not waterproof; avoid exposure to moisture. Always store in the provided carrying case when not in use.
