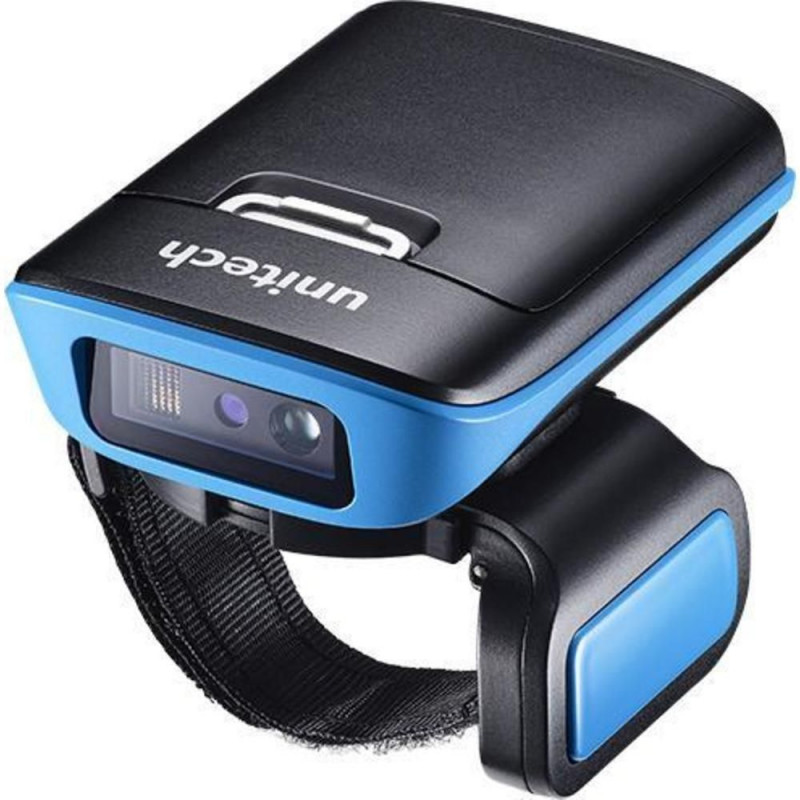

Unitech MS652 ring-scanner Plus 2D-imager SE410

Wearable scanning reaches a new level of convenience with the Unitech MS652 Ring Scanner Plus. Unlike handheld scanners that occupy a hand, this ring-style 2D imager frees both hands for picking, sorting, or assembly tasks while capturing barcodes in an instant. Built around the proven Zebra SE4100 scan engine, it reads the most common 1D and 2D symbologies at a 4 mil minimum resolution, making it ideal for warehouse, retail, and field service workflows.

Highlights

• Ring form factor for hands-free operation
• Zebra SE4100 2D imager with white LED illumination
• Bluetooth 5.2 with HID, SPP, and BLE profiles
• Rechargeable 380 mAh Li-ion battery for up to 10 hours of scanning
• IP42-rated against dust and water splashes
• Withstands drops from 1.5 m to concrete
• On-board memory stores up to 20,000 EAN-13 barcodes

In daily use

The MS652 slips onto a finger and pairs wirelessly with Android, iOS, or Windows hosts. A quick tap of the trigger captures a code and sends it instantly over Bluetooth, while the 2 MB buffer stores scans when out of range and uploads them later. The 48° horizontal and 30° vertical field of view makes aiming forgiving, and the lightweight design keeps fatigue low during long shifts. Charging via USB-C takes about two hours, and the battery handles roughly 10,000 scans per charge.

Full specifications

• Scanner type: 2D imager ring scanner
• Scan engine: Zebra SE4100
• Connectivity: Bluetooth 5.2 (HID, SPP, BLE)
• Supported 1D barcodes: Code 39, Code 93, Code 128, UPC/EAN/JAN, Codabar, Interleaved 2 of 5, GS1 DataBar
• Supported 2D barcodes: PDF417, Data Matrix, QR Code, Aztec Code, MaxiCode, Micro QR
• Battery: Rechargeable Li-ion, 380 mAh
• Operating time: up to 10 hours (approx. 10,000 scans)
• Charging time: approx. 2 hours via USB-C
• IP rating: IP42
• Drop specification: 1.5 m (5 ft) to concrete
• Operating temperature: -10°C to 50°C (14°F to 122°F)
• Storage temperature: -20°C to 60°C (-4°F to 140°F)
• On-board memory: 2 MB (up to 20,000 EAN13 barcodes)
• Host compatibility: Android, iOS, Windows
• Light source: White LED
• Field of view: Horizontal 48°, Vertical 30°
• Minimum resolution: 4 mil (Code 39)

Final note

For operations where every second counts and hands must stay free, the Unitech MS652 Ring Scanner Plus delivers reliable, fast scanning in a compact wearable package.
