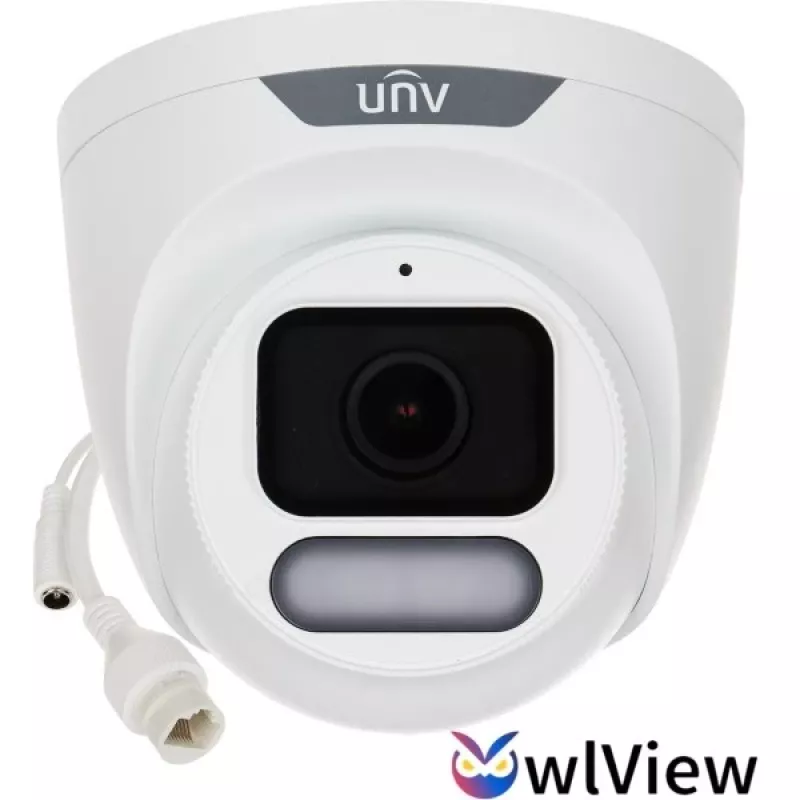

UNIVIEW IPC3628LE-ADF40K-WP 8MP turret IP-camera met 4mm objectief, PoE, IR 40m, IP67, IK10

The UNIVIEW IPC3628LE-ADF40K-WP is a high-performance 8 Megapixel turret IP camera designed for professional surveillance. Featuring a 1/2.7" progressive scan CMOS sensor, it delivers crisp 3840x2160 resolution at 30fps. Equipped with a fixed 4.0mm lens (88.7° horizontal FOV) and smart IR up to 40m, it ensures clear imaging day and night. The camera supports Ultra 265, H.265, H.264, and MJPEG compression, and includes a built-in microphone for audio recording. With IP67 weatherproof and IK10 vandal-resistant housing, it is suitable for indoor and outdoor use. Power over Ethernet (IEEE 802.3af) simplifies installation, and a MicroSD slot (up to 256GB) provides local storage. Advanced analytics include motion detection, tampering alarm, line crossing, intrusion, and human body detection.

Advantages

High 8MP resolution for detailed surveillance; Smart IR up to 40m for night vision; Robust IP67/IK10 protection; PoE support for easy setup; Built-in microphone for audio evidence; Intelligent analytics reduce false alarms.

Suitable for

• Perimeter monitoring of commercial buildings
• Retail stores and warehouses
• Parking lots and outdoor areas
• Schools and public facilities
• Residential outdoor security

Key specifications

• Sensor: 1/2.7" Progressive Scan CMOS
• Max Resolution: 8MP (3840x2160) @ 30fps
• Lens: 4.0mm fixed, F1.6, 88.7° H-FOV
• IR Distance: Up to 40m (131ft)
• Min Illumination: 0.003 Lux (color), 0 Lux with IR
• Video Compression: Ultra 265, H.265, H.264, MJPEG
• Audio: Built-in microphone
• Storage: MicroSD slot, up to 256GB
• Network: 1x RJ45 10/100 Base-TX, PoE (802.3af)
• Power: 12V DC or PoE, max 6.0W
• Protection: IP67, IK10
• Operating Temp: -30°C to 60°C
• Form Factor: Turret

Recommendations

For optimal performance, use a PoE switch or injector compliant with IEEE 802.3af. Ensure the MicroSD card is high endurance for continuous recording. Mount the camera at a height of 2.5-5m for best coverage.
