Unmanaged switch Trendnet TI-GLC50 Gigabit Ethernet 5 poorten zwart

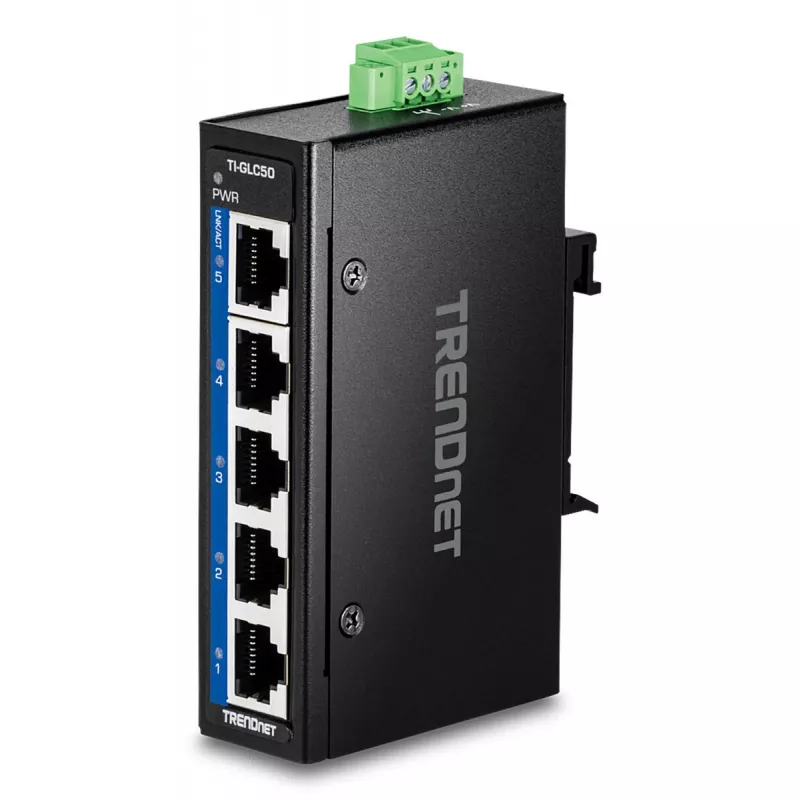

The TRENDnet TI-GLC50 is an unmanaged industrial Gigabit Ethernet mini switch with five RJ-45 ports in a compact, IP30-rated metal enclosure. Built for demanding and extreme environments, it supports an operating temperature range of -40° to 75° C and provides a switching capacity of 10 Gbit/s with a MAC address table of 2000 entries. The small form factor fits into tight installation spaces and includes DIN-rail and wall-mount brackets; the DC power supply is sold separately.

Advantages

The TI-GLC50 offers five copper Gigabit ports for high-speed device connections in an industrial-hardened housing that resists vibration and shock. Its wide operating temperature range and compact metal design make it suitable for harsh environments while remaining simple to deploy as an unmanaged switch with standard IEEE compatibility.

Suitable for

• Small industrial networks requiring ruggedized connectivity
• Compact or space-constrained installations (DIN-rail or wall mount)
• Applications needing wide temperature tolerance (outdoor cabinets, factories)
• Basic network expansion where unmanaged switching is sufficient

Key specifications

• Model: TRENDnet TI-GLC50
• Switch type: Unmanaged
• Ports: 5 x Gigabit RJ-45 (10/100/1000)
• Switching capacity: 10 Gbit/s
• MAC address table: 2000 entries
• Operating temperature: -40° – 75° C (-40° – 167° F)
• Enclosure: IP30-rated metal
• Power: DC input (power supply TI-M6024 sold separately); input range 9.6 – 60 V (per manufacturer data)

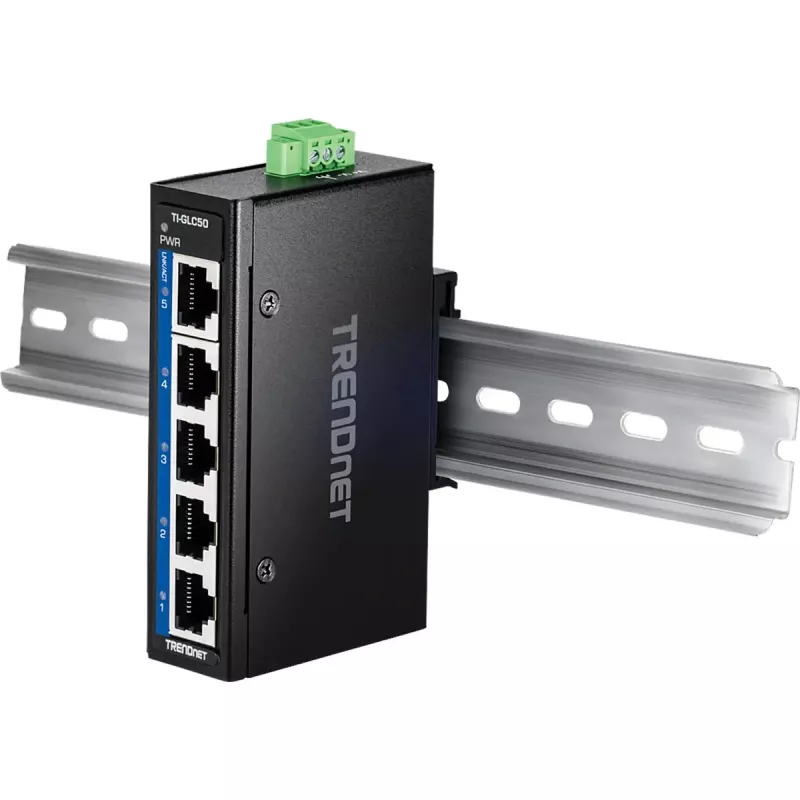

• Mounting: DIN-rail and wall mount brackets included
• Compliance: IEEE 802.3, 802.3u, 802.3ab, 802.3x; NDAA/TAA (U.S. and Canada only)
• Colour: Black
• Weight: 0.22 kg

How to use

Mount the TI-GLC50 using the included DIN-rail or wall-mount brackets in a suitable location that meets the device’s temperature and vibration requirements. Connect up to five network devices to the RJ-45 Gigabit ports using standard Ethernet cables. Provide DC power using a compatible power supply (model TI-M6024 sold separately) or another DC source within the specified voltage range. The switch is unmanaged and requires no configuration; devices obtain connectivity immediately after physical installation and power-up.

Recommendations

Install the switch in a protected enclosure if exposed to direct weather or contaminants. Ensure the chosen DC power source meets the voltage and current requirements and that cabling is appropriate for industrial environments to maintain reliable operation.
