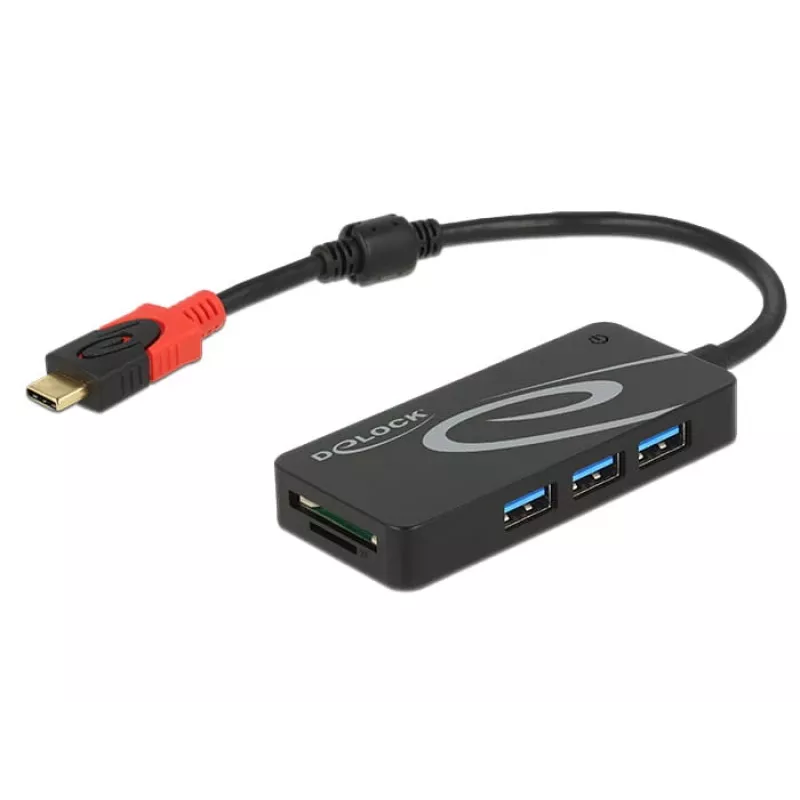

USB-hub DeLOCK USB 3.0 Type-C 3 poorten

This Delock USB hub connects to a computer via USB Type-C and expands a single USB-C port into three USB Type-A ports plus dedicated SD and microSD card slots. It supports connection to computers with USB 3.1, and provides shared power and data for the USB ports and card reader. An optional external power supply or power cable can be connected to the hub's power socket when additional current is required.

Advantages

The hub adds three USB Type-A ports and two memory card slots without requiring driver installation. When connected to a USB 3.1 host it delivers up to 900 mA total for the USB ports and card reader. An auxiliary power input allows use with devices that need extra power or when multiple peripherals are attached.

Key specifications

• Interface to host: USB Type-C
• Output connectors: 3 × USB Type-A
• Card reader: 1 × SD slot, 1 × microSD (microSDHC/microSDXC compatible)
• Host transfer mode: USB 3.1 (backward compatible with USB 2.0/1.1)
• Maximum shared current (USB 3.1 host): 900 mA for USB ports and card reader

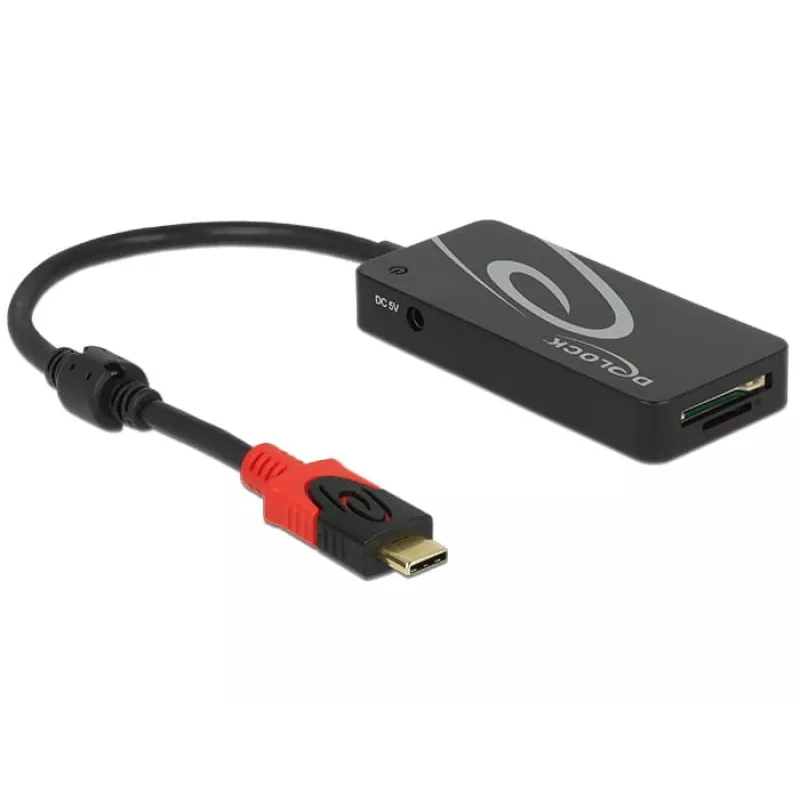

• Optional external power: power socket for separate power supply or power cable

How to use

Connect the hub to the computer via the integrated USB Type-C plug. Plug USB Type-A peripherals into the available ports and insert SD or microSD cards into the corresponding slots. If the connected host provides USB 3.1, the hub will operate with higher data throughput and supply up to 900 mA shared between ports and card reader. If peripherals require more current, connect an optional external power supply or power cable to the hub's power socket.

Recommendations

For stable operation with multiple power-hungry devices or continuous high-speed transfers, use a USB 3.1 host and, if necessary, connect an appropriate external power supply. Remove cards and safely eject storage devices before disconnecting the hub to avoid data loss.
