UV/LCD Standard Resin Flashforge 3D 0,5L 405nm

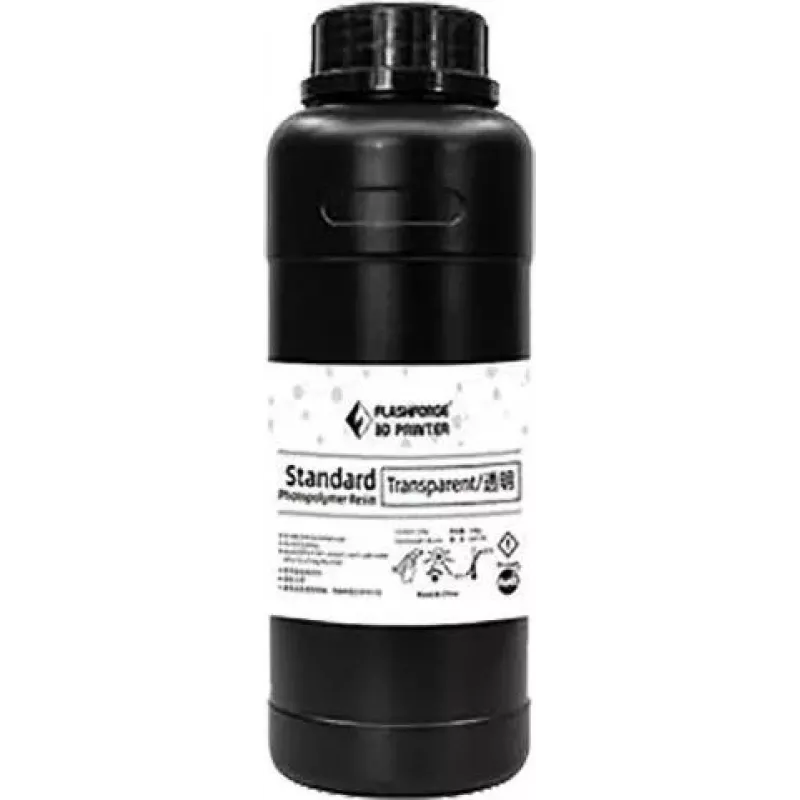

Flashforge UV/LCD Standard Resin 0.5L 405nm is a photopolymer formulation designed for use with compatible UV and LCD 3D printers. The resin cures at a wavelength of 405 nm and is supplied in a 0.5 liter bottle to support prototyping, model making and small batch production. It produces parts with good surface smoothness and reproduces fine details suitable for applications that require accurate features and moderate mechanical performance.

Advantages

The resin offers reliable curing behavior at 405 nm, consistent viscosity for stable printing, and a formulation optimized to minimize warping and layer separation on supported UV/LCD machines. It delivers fine detail fidelity and smooth surfaces, reducing the need for extensive post-processing. The 0.5L volume provides a balance between refill frequency and storage convenience for regular users.

Suitable for

• Prototyping and concept models
• Miniatures and scale models
• Small batch production and part iteration
• Functional mock-ups with moderate strength requirements

Key specifications

• Volume: 0.5 liter
• Compatible curing wavelength: 405 nm
• Type: UV/LCD photopolymer resin (standard)
• Print finish: fine detail, smooth surface
• Intended printers: UV/LCD 3D printers compatible with 405 nm resins

How to use

Shake the bottle gently before use to ensure homogeneous pigment and polymer distribution. Pour the required amount into the printer's resin vat, following the printer manufacturer's filling guidelines and safety instructions. Set printer exposure parameters appropriate for 405 nm resins and the chosen layer thickness; perform a small test print if adjusting settings. After printing, remove the part and rinse off uncured resin using isopropyl alcohol or another suitable solvent, then perform post-curing as recommended by the printer or resin manufacturer to achieve final mechanical properties.

Recommendations

Store the resin in a cool, dark place away from direct sunlight and heat sources. Use personal protective equipment such as nitrile gloves and safety glasses when handling uncured resin. Dispose of waste resin and cleaning solvents according to local regulations. For best results, calibrate exposure times and lift speeds for your specific printer and monitor resin shelf life and storage conditions.
