Ventilator Akasa VEGAS A24 12 cm wit kogellager

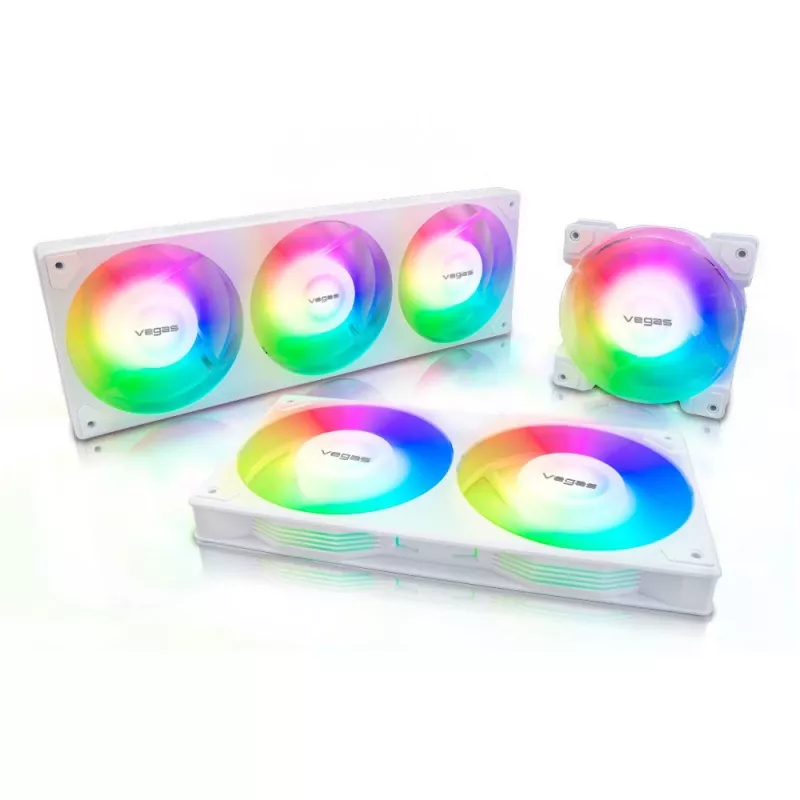

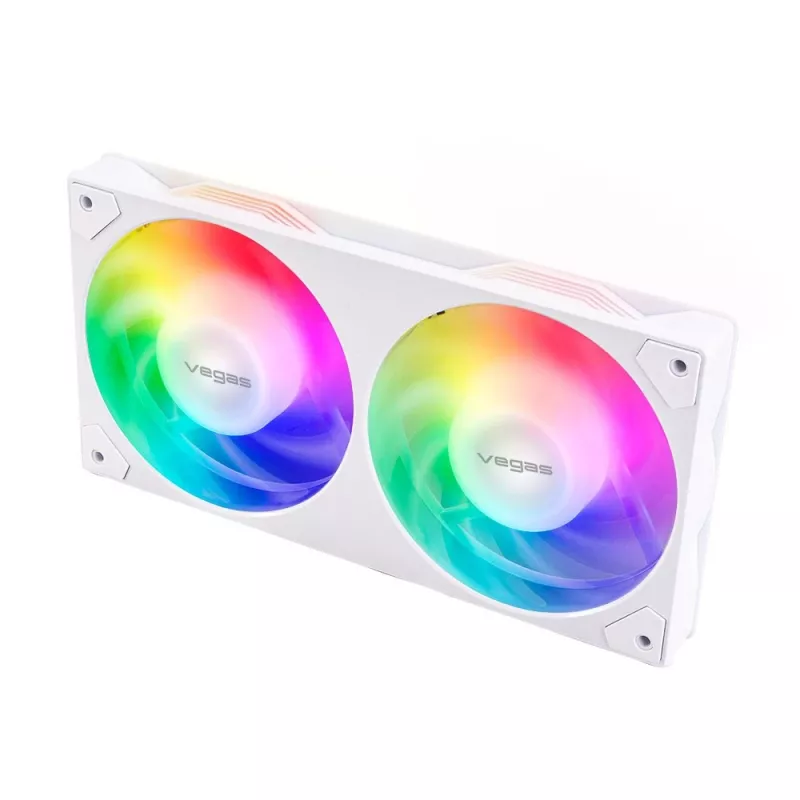

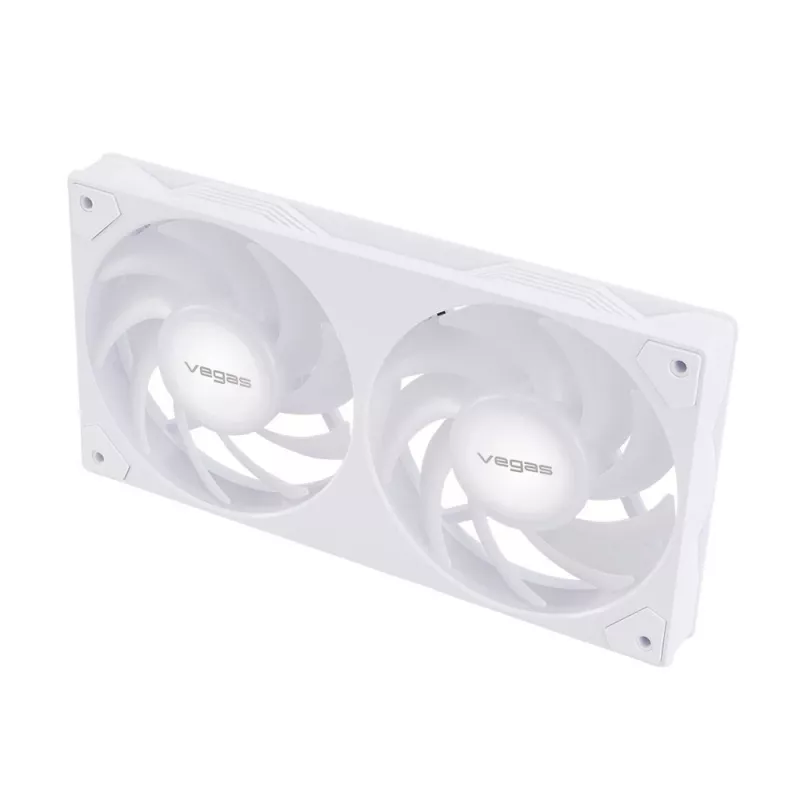

The Akasa VEGAS A24 12 cm White Ball Bearing fan provides efficient cooling in a white finish. Designed for system personalization, it is available as a single fan, a duo, or a trio integrated into a single frame for easier installation. The fan uses a dual ball bearing for durability and stable rotation, delivers up to 52.3 CFM airflow and a maximum air pressure of 2.48 mmH2O, and supports addressable RGB lighting compatible with major motherboard lighting software.

Advantages

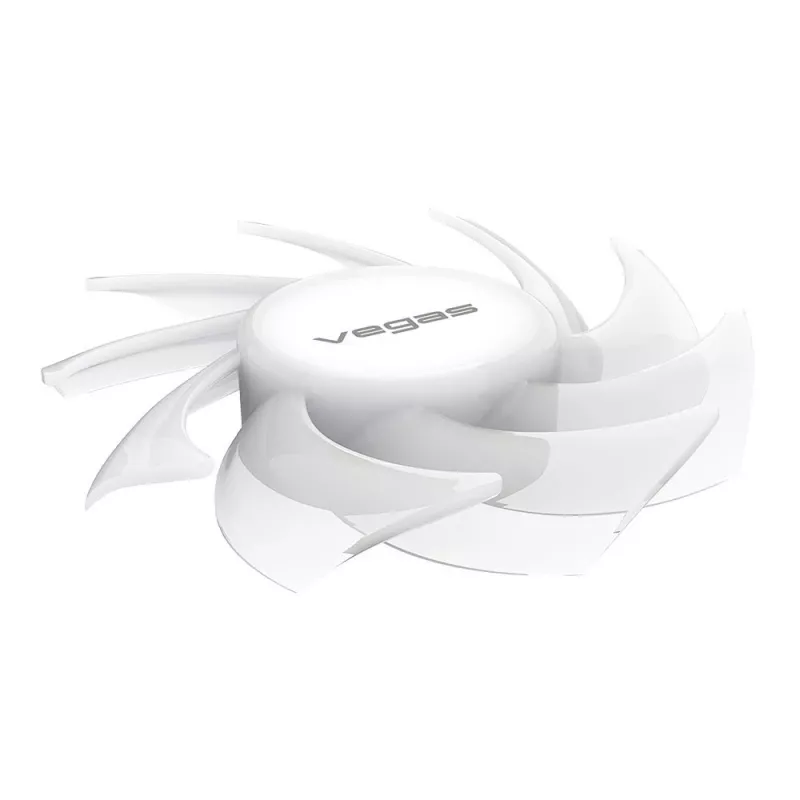

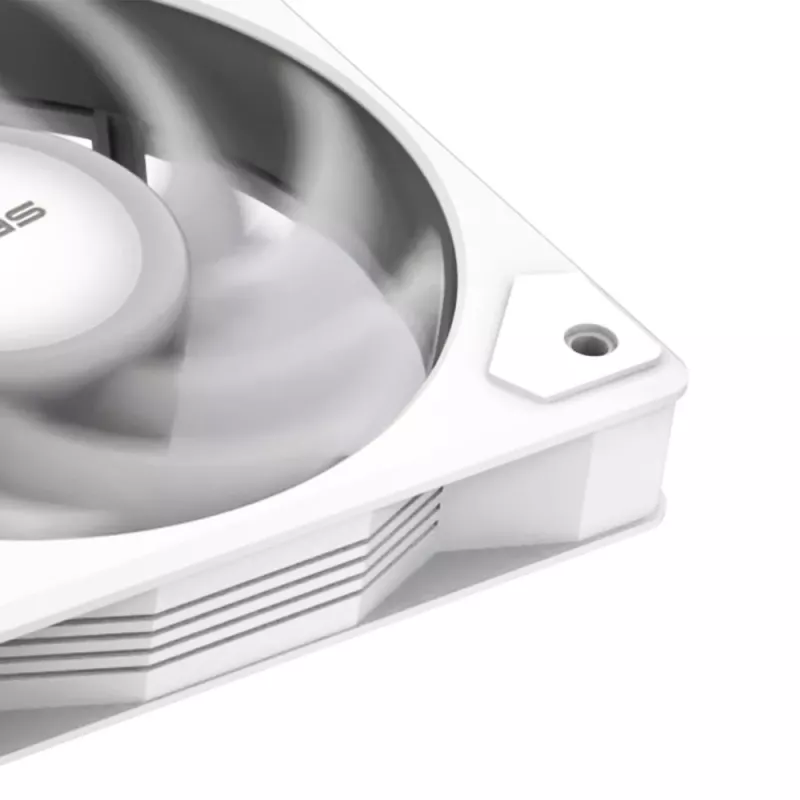

The integrated frame design reduces installation time and simplifies cable management while maintaining a consistent aesthetic across single-, dual- or triple-fan configurations. Addressable RGB lighting offers flexible visual options and is compatible with Gigabyte, Asus, Razer, MSI and ASRock lighting control. Dual ball bearings and an aerodynamic blade profile improve longevity and airflow performance. PWM control between 900 and 2000 RPM balances quiet operation at low loads with higher cooling performance under heavy load. Anti-vibration rubber mounts minimise vibration noise transferred to the case.

Suitable for

• Air cooling for desktop PC cases
• System builds that require coordinated aRGB lighting
• Upgrades where a white aesthetic is preferred
• Installations needing quick mounting and tidy cable routing

Key specifications

• Type: Fan
• Fan diameter: 120 mm
• Product colour: White
• Bearing type: Dual ball bearing
• Airflow: up to 52.3 CFM
• Maximum air pressure: 2.48 mmH2O
• Speed control: PWM, 900–2000 RPM
• Lighting: Addressable RGB, compatible with Gigabyte/Asus/Razer/MSI/ASRock
• MPN: AK-FN112-WH
• EAN: 4710679551425

How to use

Mount the fan assembly into the case using the standardised mounting holes provided on the integrated frame. Connect the PWM power cable to the motherboard fan header for speed control and connect the aRGB cable to a compatible header or controller for lighting. Route cables along existing case channels or tie them down to keep the interior tidy. Verify header pinouts and controller compatibility before first power-up.

Recommendations

Use PWM control enabled headers for best balance of noise and cooling. For optimal lighting synchronisation, connect the aRGB cable to the motherboard software supported by your system (Gigabyte, Asus, Razer, MSI or ASRock). When mounting horizontally, ensure the fan orientation supports your intended airflow direction and secure anti-vibration mounts to reduce transmitted noise.
