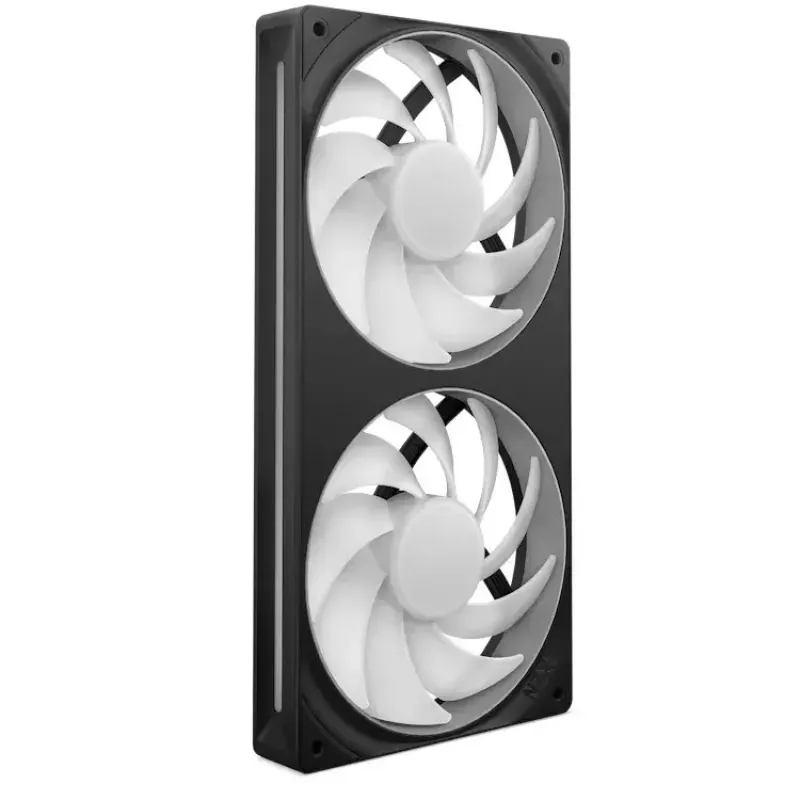

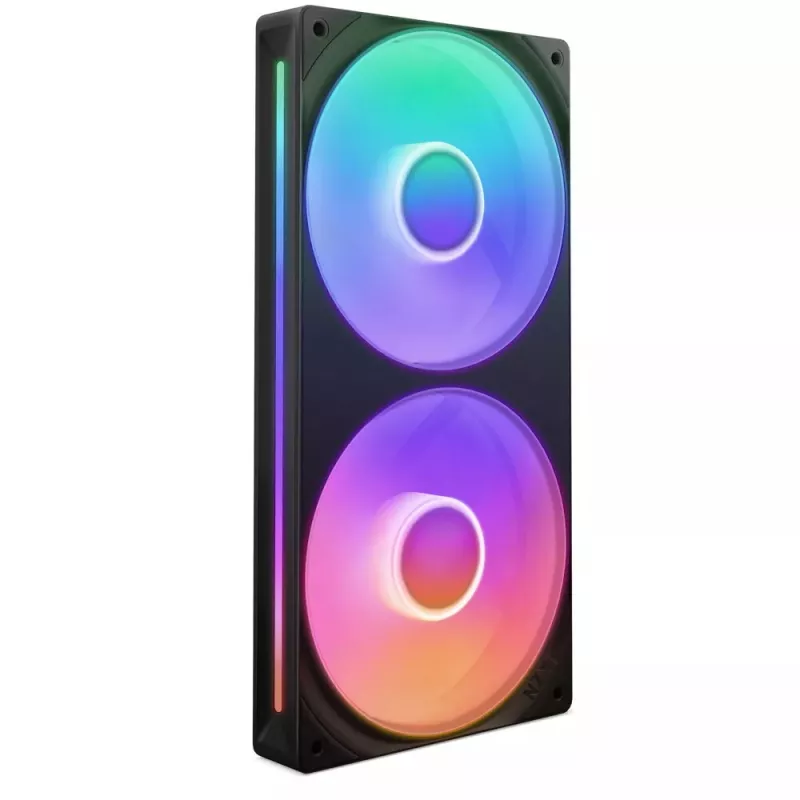

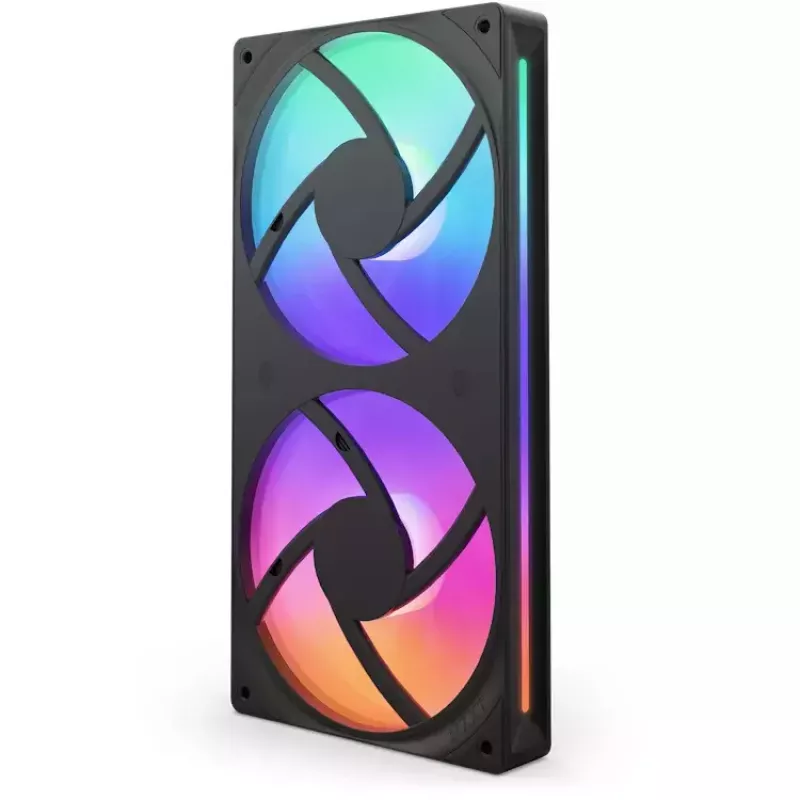

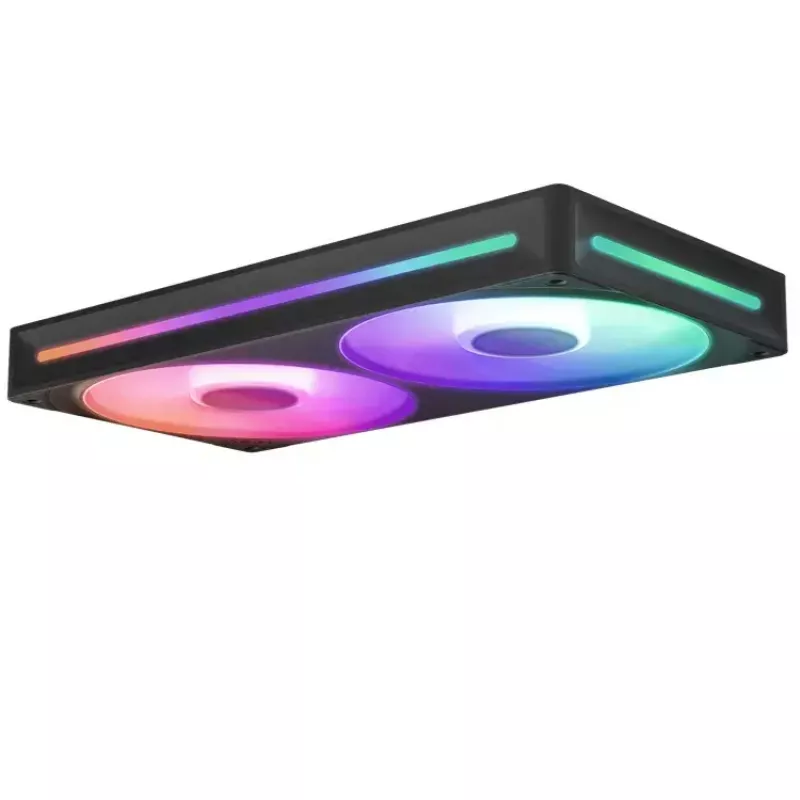

Ventilator NZXT RF-U24HF-B1 120 mm 500-2400 tpm zwart

NZXT F Series RGB Core single-frame fans combine multiple pre-mounted fans into a single-frame unit to simplify installation and cabling while providing effective cooling and integrated RGB lighting. The design is intended for easy connection either to an NZXT controller (sold separately) for CAM software control or to a motherboard 5V ARGB header using the provided splitter cable.

Advantages

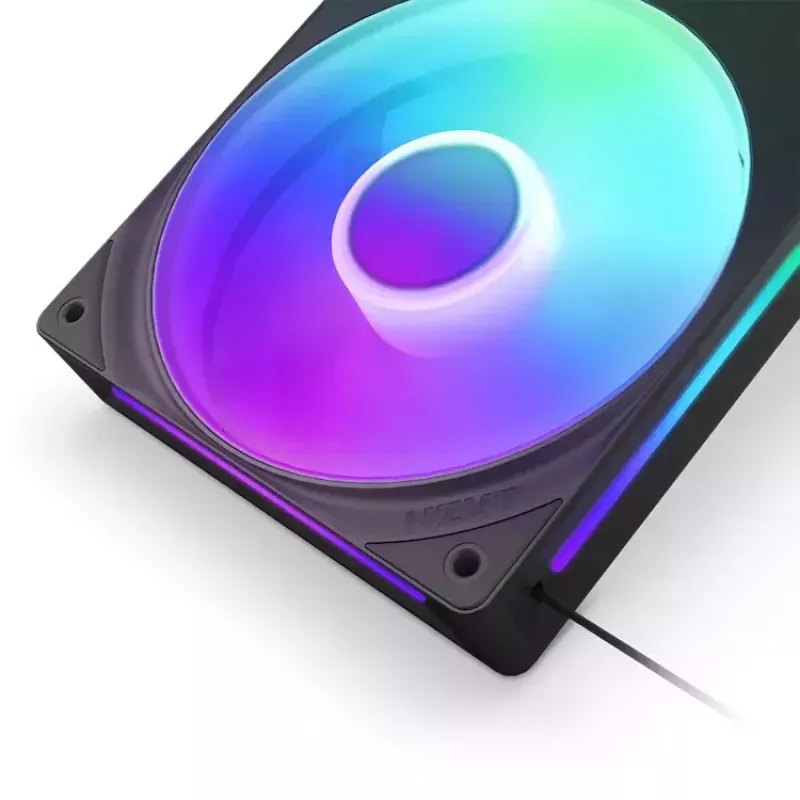

The single-frame, all-in-one construction reduces installation time and clutter, offering coordinated lighting and synchronized control. Blade geometry increases static pressure for better airflow through radiators and tight case areas. Fluid dynamic bearings ensure low operating noise and long service life, while anti-vibration rubber corners and a Zero RPM mode help minimize acoustic impact under light loads. Each fan hub contains 8 ARGB LEDs that illuminate semi-translucent blades and side windows for uniform lighting.

Key specifications

• Format: Single-frame unit with multiple integrated fans
• Lighting: Addressable RGB (aRGB), 8 LEDs per fan hub
• Bearings: Fluid dynamic bearings
• Control: PWM speed control; compatible with NZXT CAM via NZXT controller (sold separately) or motherboard 5V ARGB header using included splitter cable
• Noise reduction: Anti-vibration rubber corners; Zero RPM mode for fan stop at low load
• Performance: Blade design optimized for increased static pressure and airflow
• Lifespan: Rated for approximately 60,000 hours

How to use

Mount the single-frame fan assembly in the desired case location and secure with screws. For lighting and speed management via NZXT CAM, connect the unit to an NZXT controller (sold separately) using the supplied power and RGB cable. Alternatively, attach the included splitter cable to the motherboard 5V ARGB header to control lighting directly from the board. Connect the PWM fan cable to a system fan header for automatic speed regulation based on temperature, or configure manual profiles in CAM or your motherboard software.

Recommendations

For best results, ensure adequate case airflow and match the fan orientation to your system’s intake and exhaust layout. When using NZXT CAM control, keep the CAM software updated and verify compatibility between your NZXT controller and case layout. Use the included splitter cable only with compatible 5V ARGB headers to avoid damaging lighting circuits.
