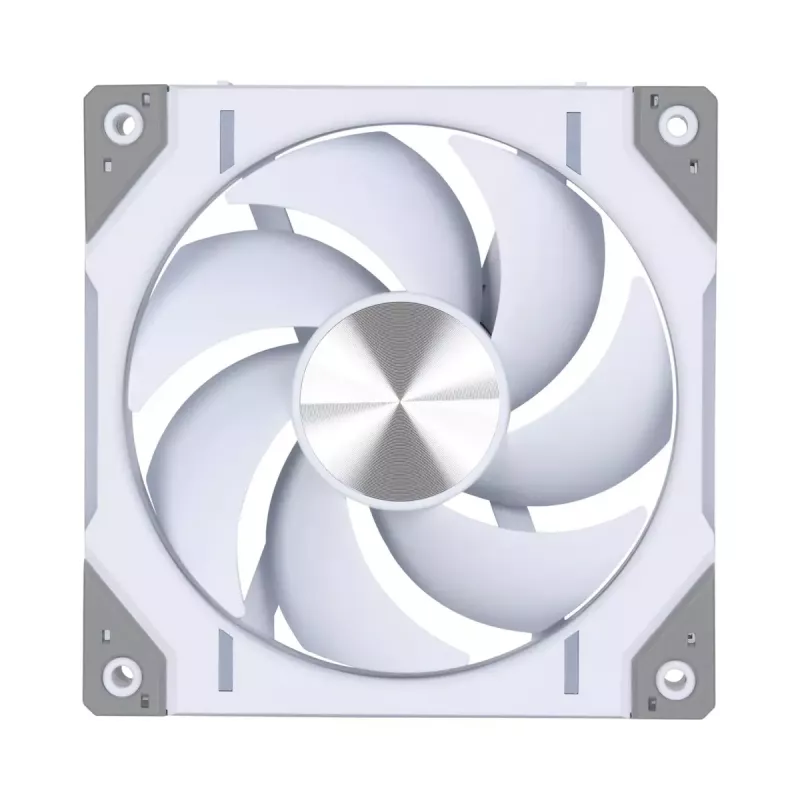

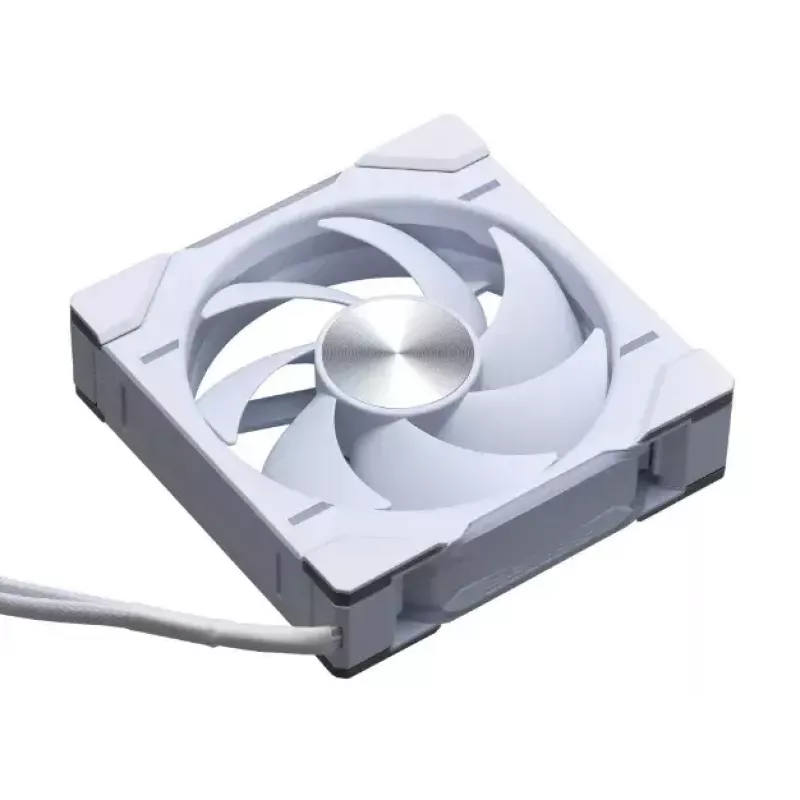

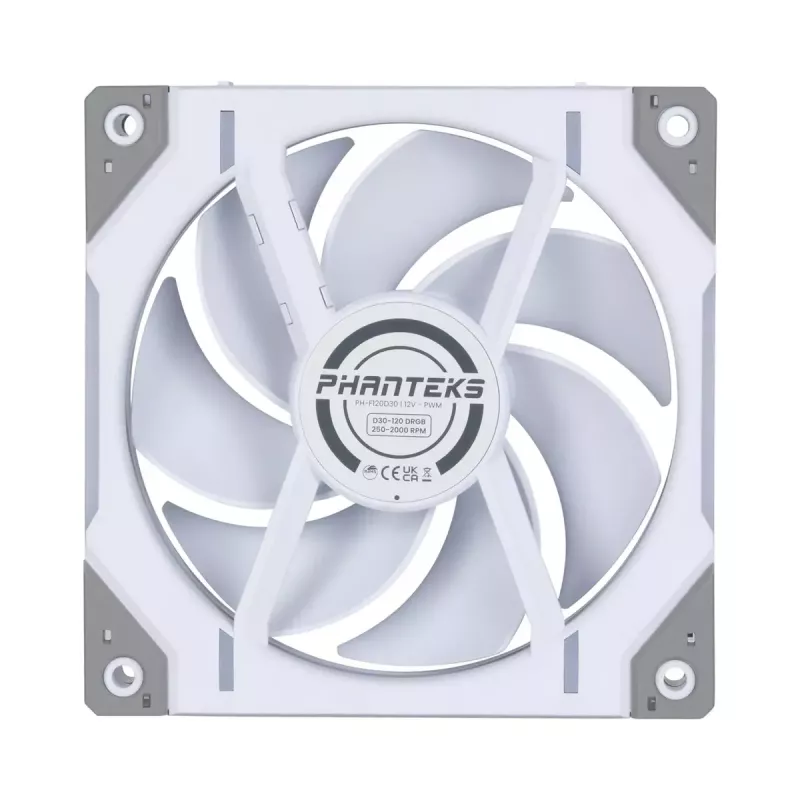

Ventilator Phanteks PH-F120D30 12 cm 250-2000 RPM 30,2 dB

The Phanteks PH-F120D30 12 cm fan operates across a wide speed range from 250 to 2000 RPM, delivering up to 64.3 CFM airflow and 3.01 mmH2O static pressure while producing 30.2 dB noise. Designed for PC cooling, the fan features a 120 mm diameter, a 30 mm thick aerodynamic blade profile and integrated D‑RGB lighting across the frame and blades. Available in regular and reversed airflow variants and finished in white, the fan supports bridge connectors and screw cover plates to link multiple units for cable‑reduced, clean installations.

Advantages

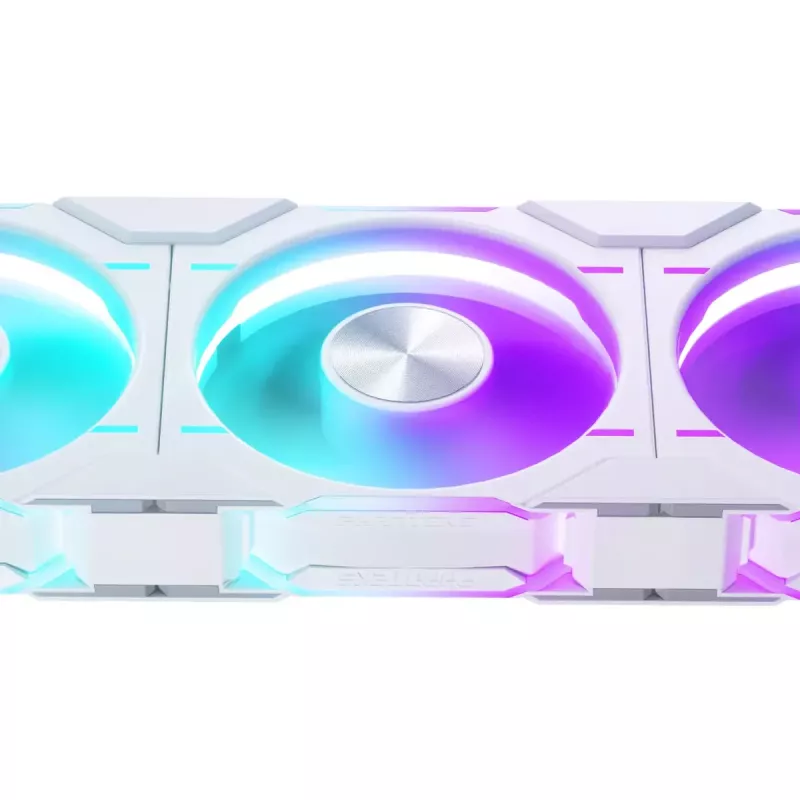

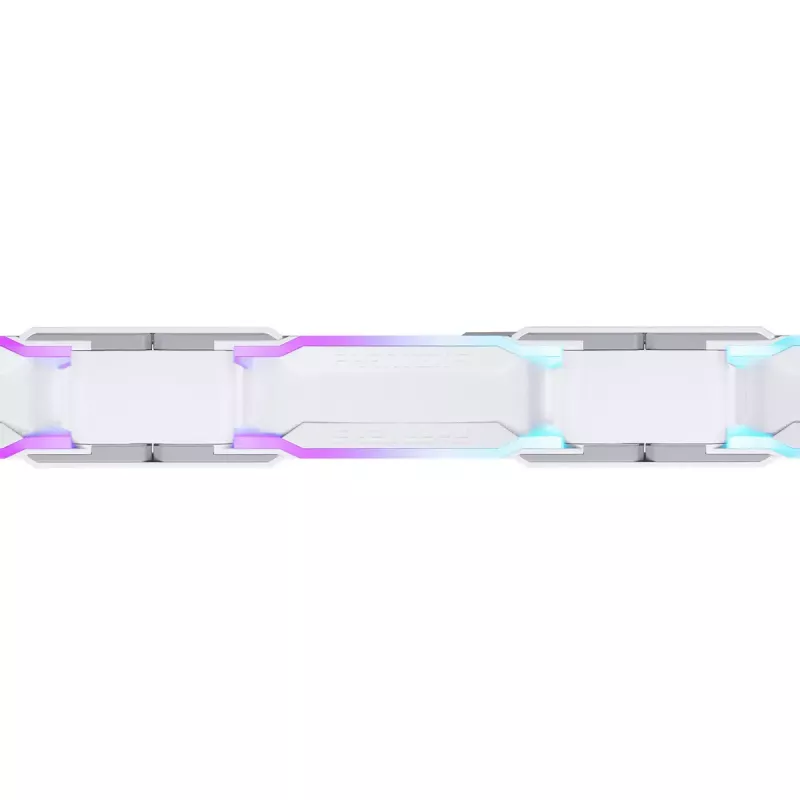

The PH-F120D30 combines high airflow and measurable static pressure in a compact 120 mm form factor, suitable for both intake and exhaust roles. Its D‑RGB lighting is integrated into the frame and blades for uniform illumination, while the 30 mm thickness and aerodynamic blade design improve efficiency and reduce turbulence. Bridge connectors and screw covers allow multiple fans to be synchronized mechanically and visually, simplifying cable management in multi‑fan setups.

Suitable for

• Case airflow: intake and exhaust positions in mid‑tower and full‑tower enclosures
• CPU and GPU cooling where 120 mm fans are supported
• Radiator setups requiring a balance of airflow and static pressure
• Systems with emphasis on clean cable routing and D‑RGB lighting coordination

Key specifications

• Fan diameter: 120 mm
• Speed range: 250–2000 RPM
• Maximum airflow: 64.3 CFM
• Air pressure: 3.01 mmH2O
• Noise level: 30.2 dB
• Thickness / frame profile: 30 mm aerodynamic blade design

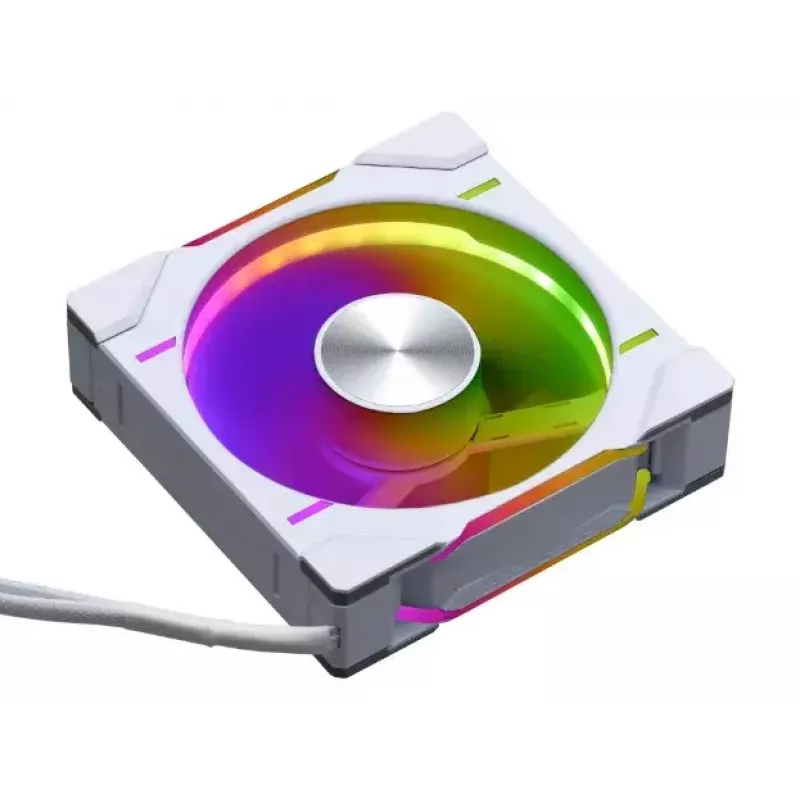

• Lighting: integrated D‑RGB across frame and blades
• Colour: White

How to use

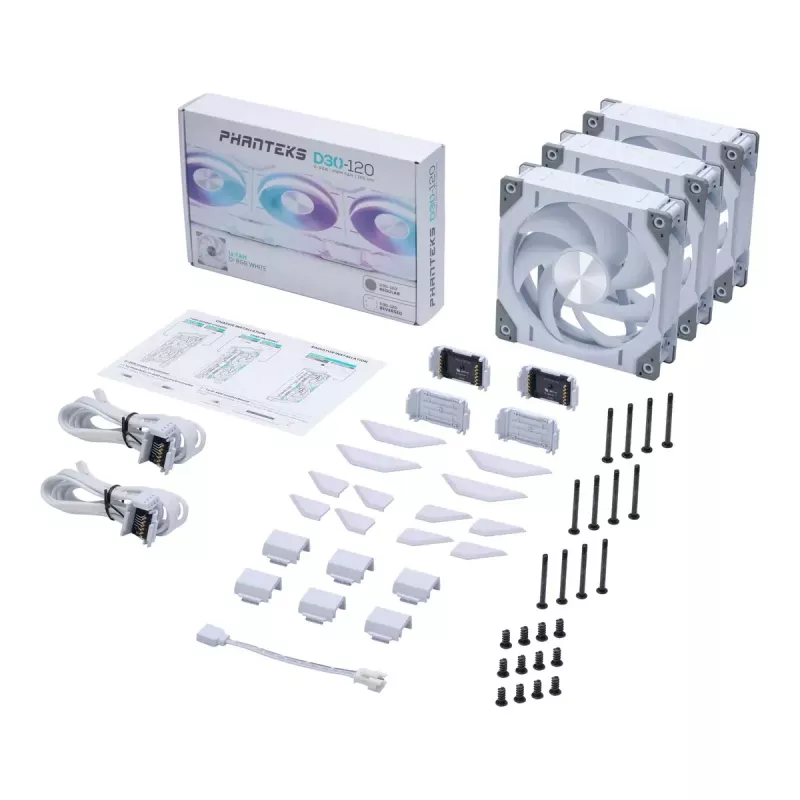

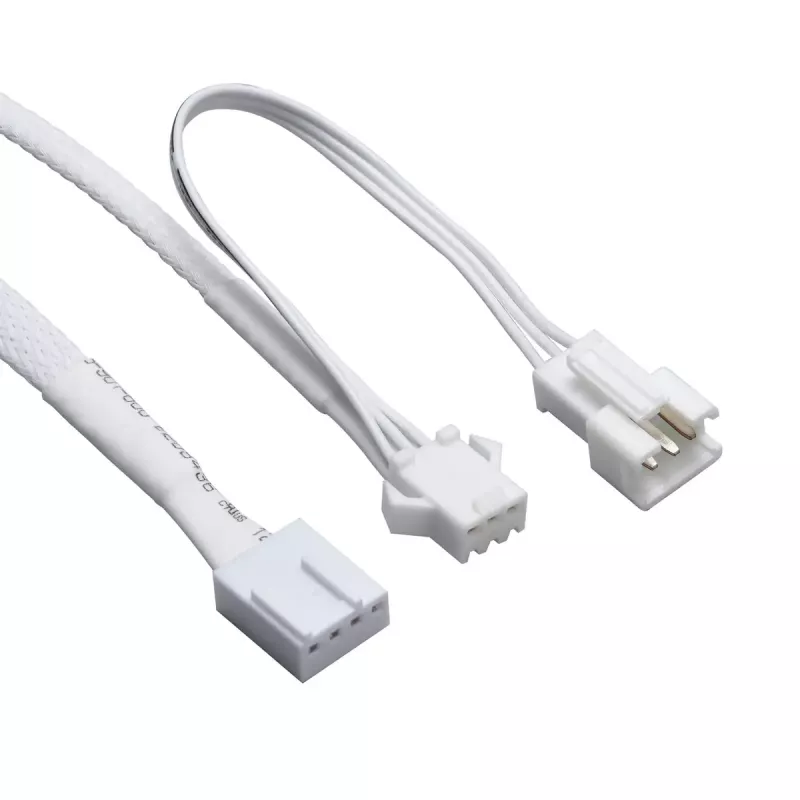

Install the PH-F120D30 in any 120 mm fan mount following your case or cooler manufacturer instructions, paying attention to airflow direction indicated on the fan frame. Connect the fan power connector to the appropriate header on the motherboard or fan controller to enable speed control across the 250–2000 RPM range. For D‑RGB effects, connect the lighting cable to a compatible D‑RGB header or controller and configure lighting profiles through your motherboard or controller software. When installing multiple fans, use the supplied bridge connectors and screw cover plates to align frames and reduce visible cabling.

Recommendations

Position fans to create a balanced airflow path: front/bottom for intake and top/rear for exhaust. For radiator or obstructed airflow scenarios, prefer the higher RPM range to maintain adequate heat dissipation while monitoring noise levels. Use the reversed airflow variant where optimal configuration requires airflow direction opposite to standard mounting options.
