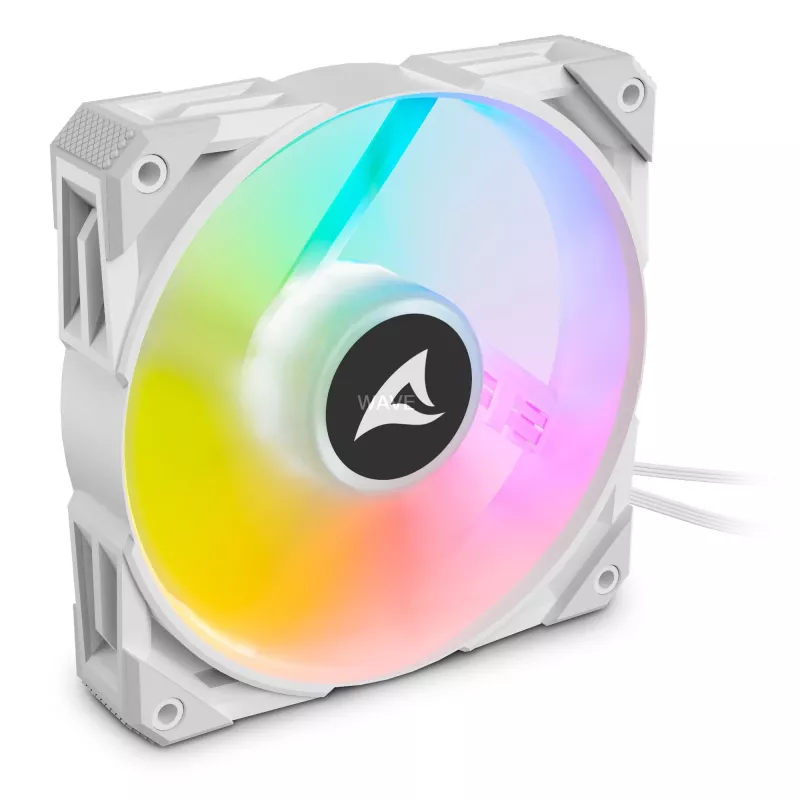

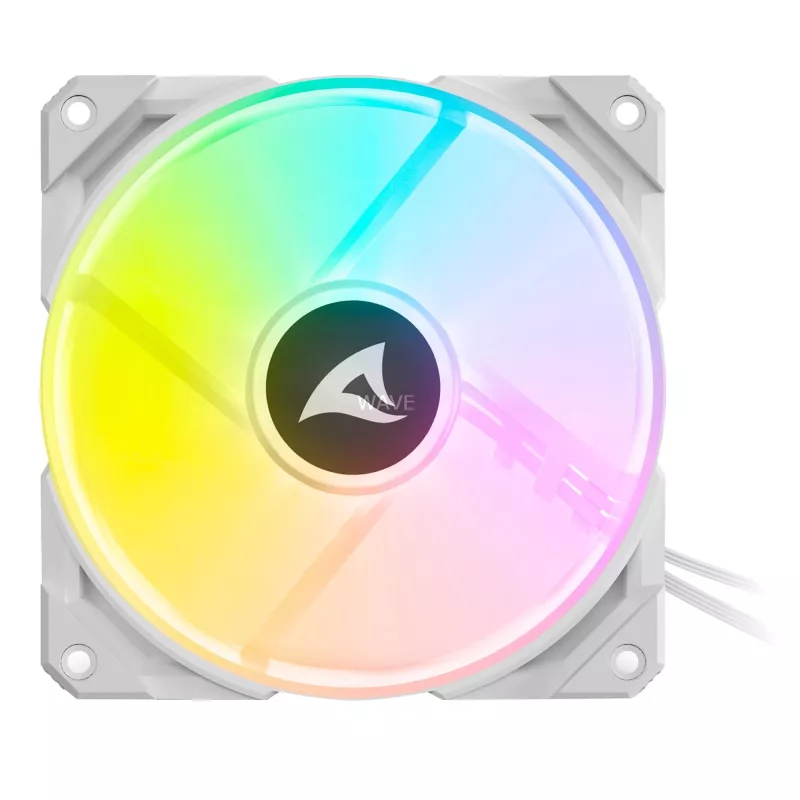

Ventilator Sharkoon F50 12 cm grijs wit 600-2000 RPM 132 m³/h

The Sharkoon F50 120 mm fan delivers targeted cooling for high-performance PC components. With a speed range of 600–2,000 rpm, a maximum airflow of 132 m³/h and a fluid dynamic bearing, the fan provides efficient heat dissipation while maintaining durability. The model features a grey-and-white finish and twelve addressable RGB LEDs for customizable illumination. Connectivity includes a 4-pin PWM power connector and a 4-pin 5V D-coded LED connector compatible with common motherboard lighting systems.

Advantages

The Sharkoon F50 combines adjustable PWM control, a fluid dynamic bearing and rubberized mounting points to balance performance, long lifespan and reduced vibration. It operates with a moderate maximum noise level of 35 dB(A) and supports synchronized RGB lighting via Asus Aura Sync, MSI Mystic Light Sync, Gigabyte Fusion and ASRock Polychrome. Installation is simplified by standard 120 mm dimensions and common connector types.

Suitable for

• Cooling high-performance CPU and GPU setups
• Case airflow improvement in gaming and workstation builds
• Systems requiring synchronized addressable RGB lighting
• Quiet builds where low vibration and reduced noise are important

Key specifications

• Type: Fan
• Fan diameter: 120 mm
• Speed range: 600–2,000 rpm (PWM)
• Maximum airflow: 132 m³/h
• Maximum air pressure: 2.9 mmH2O
• Bearing: Fluid Dynamic Bearing
• Noise level: up to 35 dB(A)
• LEDs: 12 addressable RGB LEDs
• Connectors: 4-pin PWM power, 4-pin 5V D-coded LED
• Colour: White, Grey
• Weight: 0.18 kg
• Expected lifespan: ≥50,000 hours

How to use

Install the Sharkoon F50 in a standard 120 mm fan mount inside the PC case, aligning the airflow direction as required. Connect the 4-pin PWM cable to a compatible motherboard fan header to enable speed control and the 4-pin 5V D-coded LED connector to a 5V addressable RGB header for lighting control. Configure fan curves and RGB effects using the motherboard software to match cooling and acoustic preferences.

Recommendations

Mount the fan using the rubberized contact points to reduce vibration transfer to the case. Set PWM curves to keep idle or low-load speeds near 600 rpm to minimize noise, and allow higher rpm under load for optimal cooling. Ensure the motherboard supports 5V D-coded addressable RGB headers before connecting the LED cable to avoid compatibility issues.
