Verlengkabel Sonoff SNZB-05P voor overstromings-/leksensor, 200 cm lengte

Extension cable for SNZB-05P SONOFF WLDC200 flood/water leakage sensor. The 2 m extension cable expands the detection area of the SNZB-05P sensor, allowing the sensor to register liquids over a larger surface and in hard-to-reach places. Made of PC and ABS, it supports an operating temperature range from -10°C to 60°C and operating humidity up to 80% RH.

Advantages

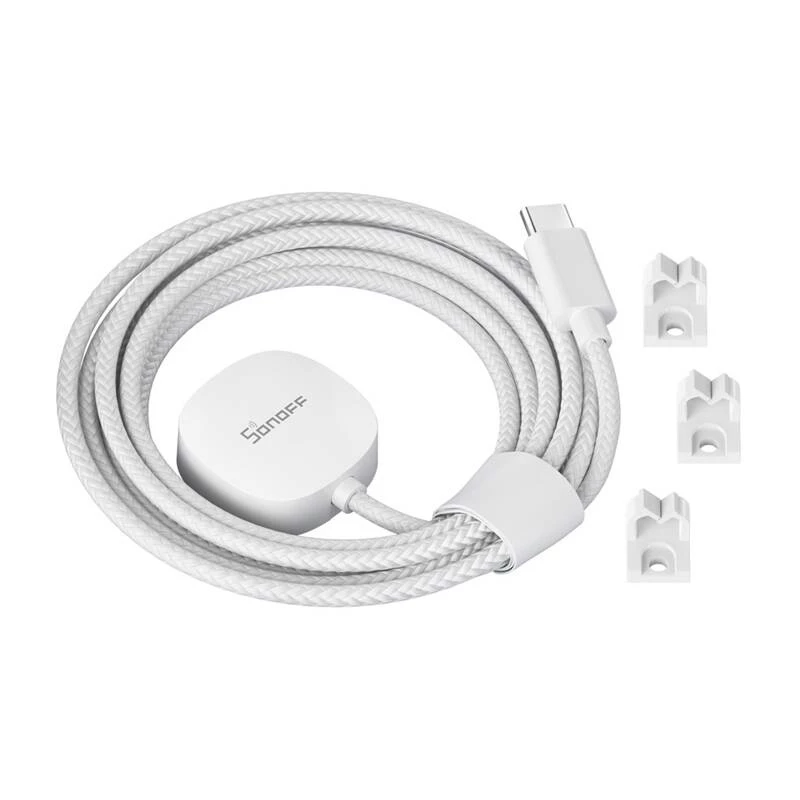

The extension cable increases moisture detection coverage by enabling the sensor to sense liquid along the entire cable surface. Cables can be connected in series without a limit on total length, which makes the installation adaptable to various spaces including large rooms and industrial sites. The package includes cable clamps for secure mounting.

Key specifications

• Manufacturer: Sonoff
• Model: WLDC200
• Compatible sensor models: SNZB-05P
• Length: 2 m
• Material: PC, ABS
• Operating temperature: -10°C to 60°C
• Operating humidity: 0–80% RH
• Weight: 32 g

How to use

Connect one end of the extension cable to the SNZB-05P sensor according to the sensor manual, and route the cable to the area to be monitored. If needed, connect multiple cables in series to reach greater distances. Secure the cable in place using the supplied cable clamps to ensure reliable contact with the monitored surface and to prevent accidental displacement.

Recommendations

Use the cable in environments within the specified temperature and humidity ranges. Inspect connections periodically and position the cable where liquid is most likely to collect. For industrial installations, plan the cable route to avoid mechanical damage and to allow easy access for maintenance.
