Verlengsnoer Brennenstuhl 1132910525 1,5m 1 AC-stopcontact outdoor

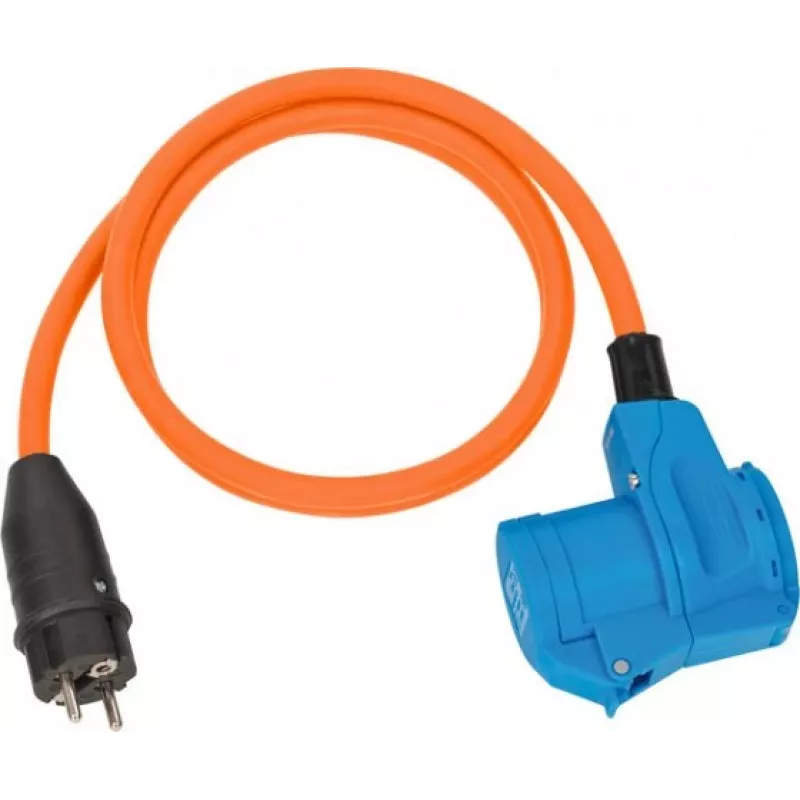

The Brennenstuhl 1132910525 power extension is a 1.5 m CEE adapter cable with one earthed CEE angled coupling and one earthed combination socket. Designed for outdoor and mobile applications, the cable is oil-resistant and the unit has IP44 protection for splash and dust protection. The adapter comes in signal orange for improved visibility while the housing and connector elements use black and blue details. Maximum rating: 16 A at 250 V. Compact dimensions of 185 x 185 x 70 mm make it convenient for caravan, motorhome or boat use.

Advantages

The CEE adapter cable offers a robust construction with oil-resistant RN cable and IP44 ingress protection, allowing permanent outdoor use. The earthed angled CEE coupling and combination socket provide a safe connection for shore power and outdoor equipment. Signal orange colouring increases visibility and safety at campsites or marinas. The compact size and 1.5 m length balance portability and reach.

Suitable for

• Caravans and motorhomes
• Camping electrical hookups
• Boat shore power connections
• Outdoor temporary power supply where IP44 protection is required

Key specifications

• Cable length: 1.5 m
• AC outlets: 1 (CEE earthed coupling and combination socket)
• Rated current: 16 A
• Rated voltage: 250 V
• Protection class: IP44
• Cable type: oil-resistant RN cable
• Dimensions: 185 x 185 x 70 mm
• Weight: 0.56 kg
• Colours: Black, Blue, Orange (signal colour)

How to use

Connect the angled CEE coupling to the corresponding CEE inlet on the power source (shore power, distribution box or campsite pedestal) and insert the earthed combination socket into the device or appliance plug. Ensure the connection is fully engaged and the earthing contact is correctly aligned. The product is intended for outdoor use but should not be submerged. Observe the 16 A/250 V rating and do not exceed the specified current load.

Recommendations

For safe operation, regularly inspect the cable and connectors for damage before each use, avoid prolonged exposure to direct sunlight when possible, and store the adapter in a dry place when not in use. Use only with compatible CEE inlets and appliances rated at or below 16 A and 250 V.
