Verstelbaar plateau EFB Elektronik 691653TS.80

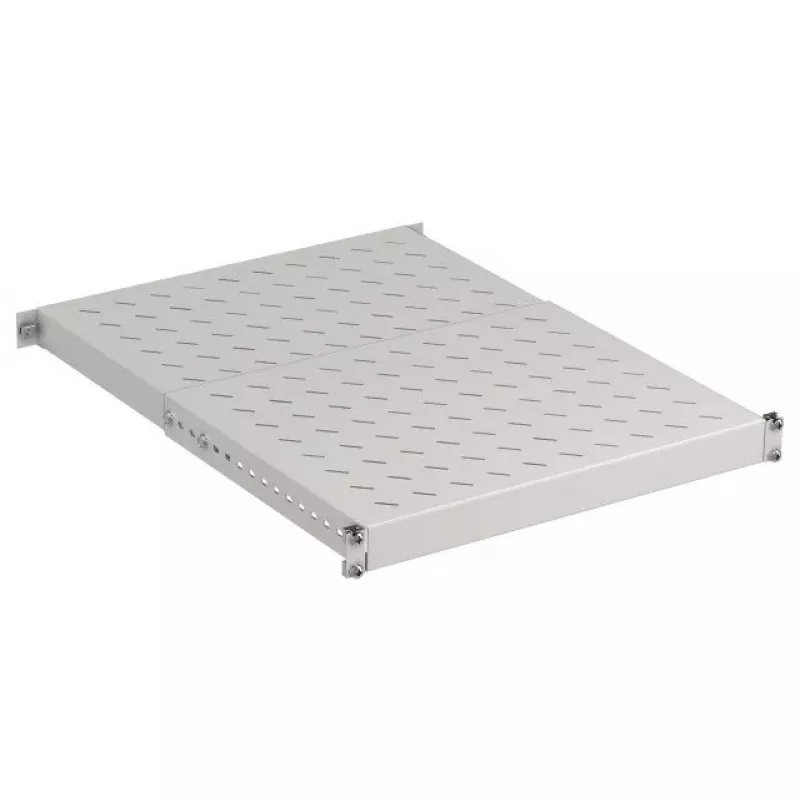

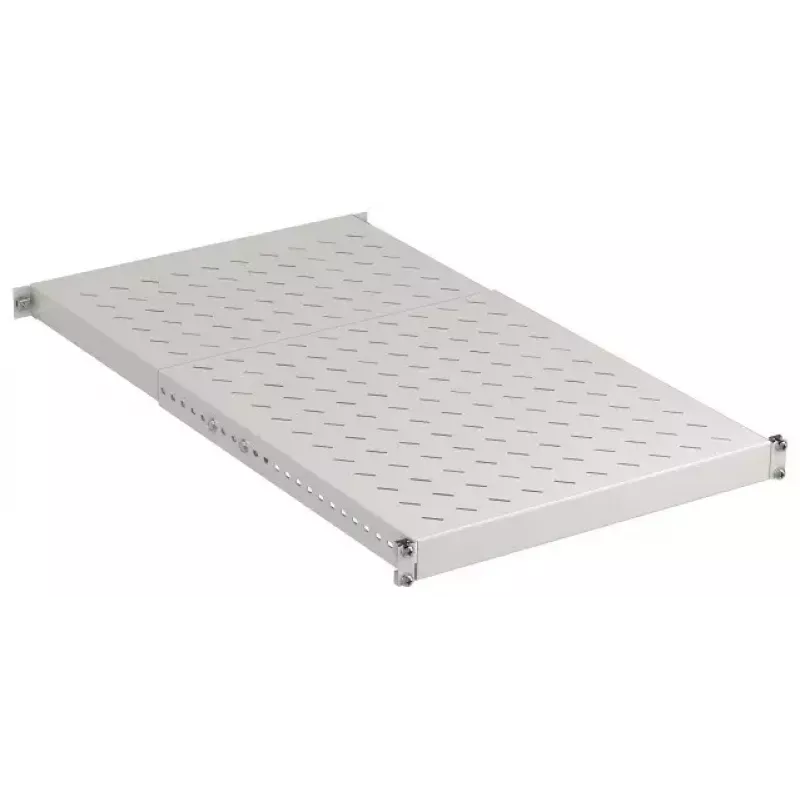

The EFB Elektronik 691653TS.80 adjustable shelf is a steel shelf designed for 19" network and server cabinets. It provides a stable storage platform with a load capacity of up to 150 kg and a width of 482.6 mm (19") and a height of 44 mm. The shelf is finished in RAL7035 light grey or RAL9005 jet black and is supplied with the necessary mounting accessories.

Advantages

This shelf is made from steel sheet for strength and long service life. Mounting depth can be adjusted using self-tapping screws to fit different cabinet depths. It supports front and rear 19" profiles for secure installation and is delivered with mounting accessories for quick assembly. The two available paint finishes allow match with standard rack interiors.

Suitable for

• Storage of non-rackable devices and accessories in 19" network and server cabinets
• Holding tools, patch panels, or power supplies inside racks
• Temporary placement of equipment during installation or maintenance

Key specifications

• Manufacturer: EFB Elektronik
• Model / MPN: 691653TS.80
• EAN: 4049759252700
• Type: Adjustable 19" shelf
• Material: Steel sheet
• Finish: RAL7035 (light grey) / RAL9005 (jet black)
• Width: 482.6 mm (19")
• Height: 44 mm
• Max. load capacity: 150 kg
• Mounting: Fixing to front and rear 19" profiles required; depth adjustable with self-tapping screws
• Scope of delivery: 1 x shelf including mounting accessories

How to use

Install the shelf in a 19" cabinet by aligning it with the front and rear 19" profiles and fastening it using the supplied mounting accessories. Adjust the mounting depth as required by positioning the shelf and securing it with self-tapping screws. Ensure that the shelf is level and firmly attached before placing equipment on it. Do not exceed the specified maximum load of 150 kg.

Recommendations

Place heavier items centrally on the shelf to distribute load evenly and avoid overhanging loads. Verify compatibility with the cabinet's 19" profile spacing and depth prior to installation, and tighten fasteners to prevent movement during operation.
