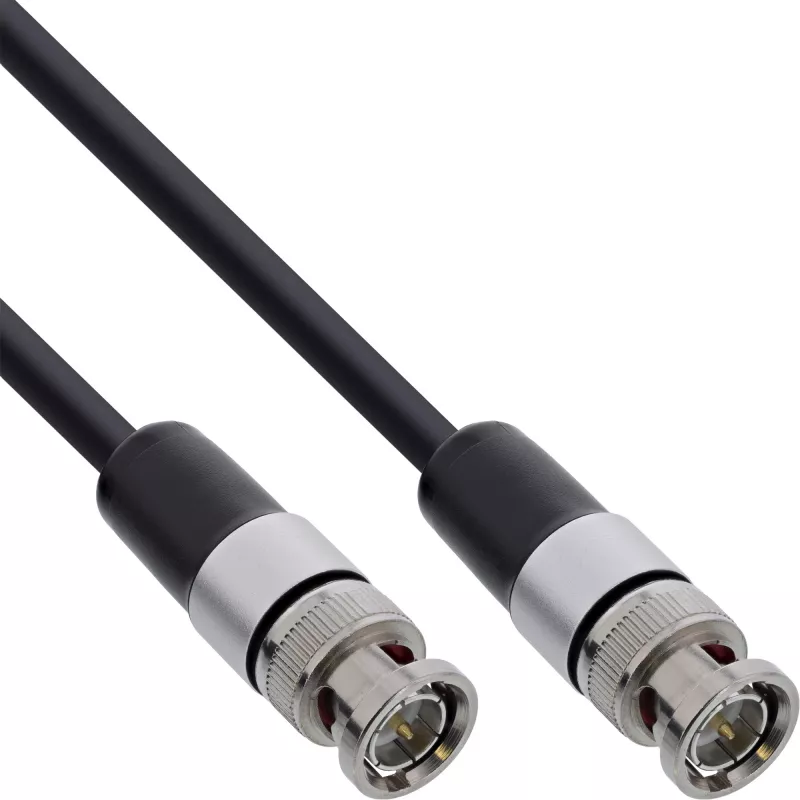

InLine BNC-videokabel, 12G-SDI, 4K60Hz, 75 Ohm, 15 m, 10815S

The InLine BNC Video Cable is a 12G-SDI coaxial cable designed for high-resolution video transmission. It supports 4K Ultra HD at 60Hz and data rates up to 12 Gb/s over a single 75 Ohm coaxial connection, with double shielding to minimise signal loss and interference. The cable features robust BNC connectors with a secure locking mechanism, suitable for professional SDI systems.

Key features

• Supports 4K Ultra HD at 60Hz
• Data transmission rate up to 12 Gb/s
• 75 Ohm impedance
• Double shielding for reduced interference
• Lockable BNC connectors
• Compatible with SD-SDI, HD-SDI, 3G-SDI, 6G-SDI and 12G-SDI

Specifications

• Brand: InLine
• MPN: 10815S
• Connector 1: BNC plug
• Connector 2: BNC plug
• Impedance: 75 Ohm
• Supported standards: SD-SDI, HD-SDI, 3G-SDI, 6G-SDI, 12G-SDI
• Maximum resolution: 4K @ 60Hz
• Data transmission rate: 12 Gb/s
• Type: BNC & VGA
• Outer diameter: 7.8 mm
• Diameter: AWG 16
• Bending radius (static): 50 mm
• Bending radius (dynamic): 120 mm
• Operating temperature: -20 to +75°C
• Storage temperature: -20 to +60°C
• Length: 15 m
• Colour: Black
• Design: Round cable
• Shielding: Double shielding
• Variant: Premium cable
• Signal: Video
