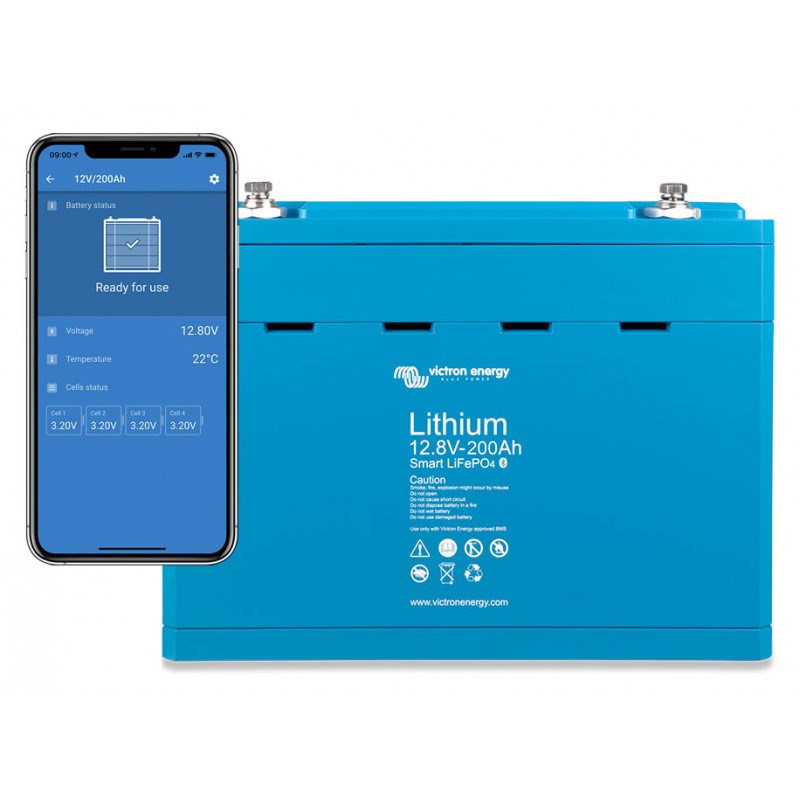

LiFePO4-accu 12,8V/200Ah - Smart

Power interruptions and unreliable energy storage can cripple off-grid and backup systems. The Victron Energy LiFePO4 Battery 12.8V/200Ah Smart solves this with a high-capacity, long-lasting lithium iron phosphate solution that delivers consistent power and integrates seamlessly with smart monitoring.

Who is it for

This battery is ideal for marine, RV, solar, and off-grid applications where dependable deep-cycle performance and remote monitoring are essential. It suits both professional installers and advanced DIY users who need a maintenance-free, safe, and durable energy storage solution.

Main features

• Integrated Smart BMS with Bluetooth and RS485 for real-time monitoring via the VictronConnect app.
• Exceptional cycle life: over 4000 cycles at 80% depth of discharge.
• High continuous discharge current of 200A, with 400A peak for 3 seconds.
• Safe LiFePO4 chemistry with built-in protection against over-voltage, under-voltage, over-current, and extreme temperatures.
• IP65 enclosure for protection against dust and water jets, suitable for harsh environments.
• Flexible configuration: connect up to 4 batteries in series or parallel for higher voltage or capacity.

Specifications

• Battery Type: Lithium Iron Phosphate (LiFePO4)
• Nominal Voltage: 12.8V
• Nominal Capacity: 200Ah
• Energy Capacity: 2560Wh
• Max Continuous Discharge Current: 200A
• Peak Discharge Current: 400A (3 seconds)
• Max Charge Current: 100A
• Recommended Charge Voltage: 14.2V - 14.6V
• Operating Temperature (Discharge): -20°C to 60°C
• Operating Temperature (Charge): 0°C to 45°C
• Self-Discharge Rate: <3% per month
• Internal Resistance: <0.5mΩ
• Communication Interface: Bluetooth, RS485
• Terminal Type: M8 Threaded Terminals
• Enclosure Protection: IP65
• Series/Parallel Connection: Up to 4 in series, up to 4 in parallel

Tips

For optimal performance, use a Victron charger or solar controller with LiFePO4 profile. Monitor battery status via the VictronConnect app to track state of charge, temperature, and alarms. Ensure proper ventilation and avoid exposing the battery to temperatures outside the specified operating range.
