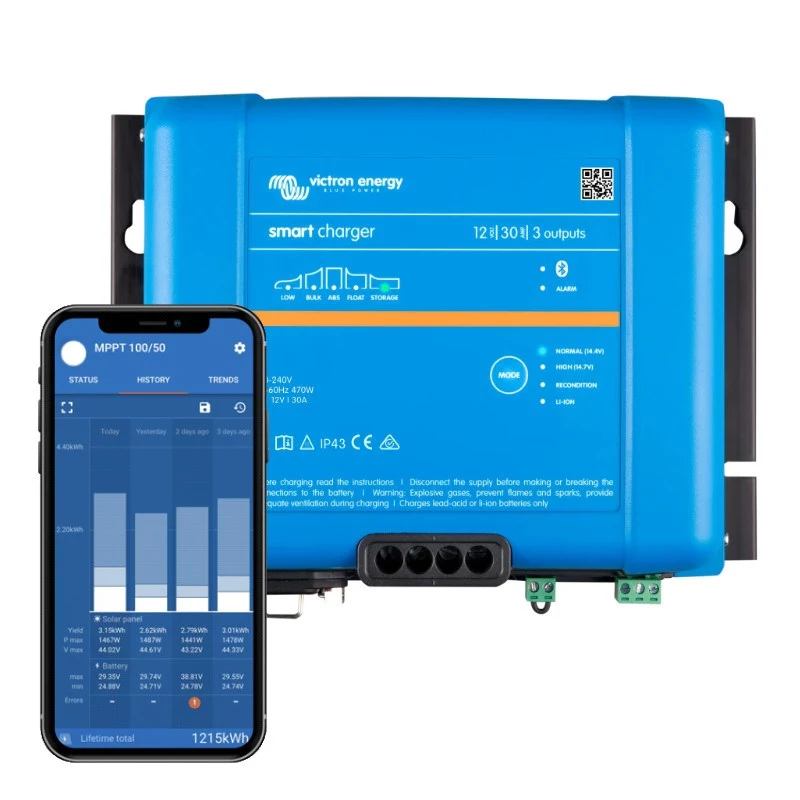

VICTRON ENERGY Smart IP43 oplader 12/30 (3) 120/240V

Multi-bank smart battery charger delivering 30A across three independent outputs, each capable of full current. The IP43-rated aluminium enclosure and adaptive multi-stage charging algorithm ensure reliable, efficient charging for lead-acid and LiFePO4 batteries, with built-in Bluetooth for real-time monitoring via the VictronConnect app.

Advantages

Three isolated outputs allow simultaneous charging of up to three battery banks without interaction. The adaptive charge algorithm optimises each phase—Bulk, Absorption, Float, Storage—extending battery life and performance. Bluetooth Smart connectivity provides wireless configuration, monitoring, and firmware updates from a smartphone or tablet. Thermostatically controlled fan cooling and high efficiency up to 94% reduce energy waste and noise. Comprehensive protection against reverse polarity, short circuit, and over-temperature ensures safe operation in demanding environments.

Suitable for

• Marine and automotive applications with multiple battery banks
• Off-grid solar systems requiring reliable AC charging
• Workshop and service environments for battery maintenance
• LiFePO4 and lead-acid battery users needing adaptive charging

Key specifications

• Nominal output voltage: 12V DC
• Maximum charge current: 30A per output
• Number of outputs: 3
• Input voltage range: 180-265 VAC, 45-65 Hz
• Ingress protection: IP43
• Bluetooth Smart built-in
• Efficiency: up to 94%
• Operating temperature: -20 to +50 °C
• Enclosure: Aluminium, wall mountable
