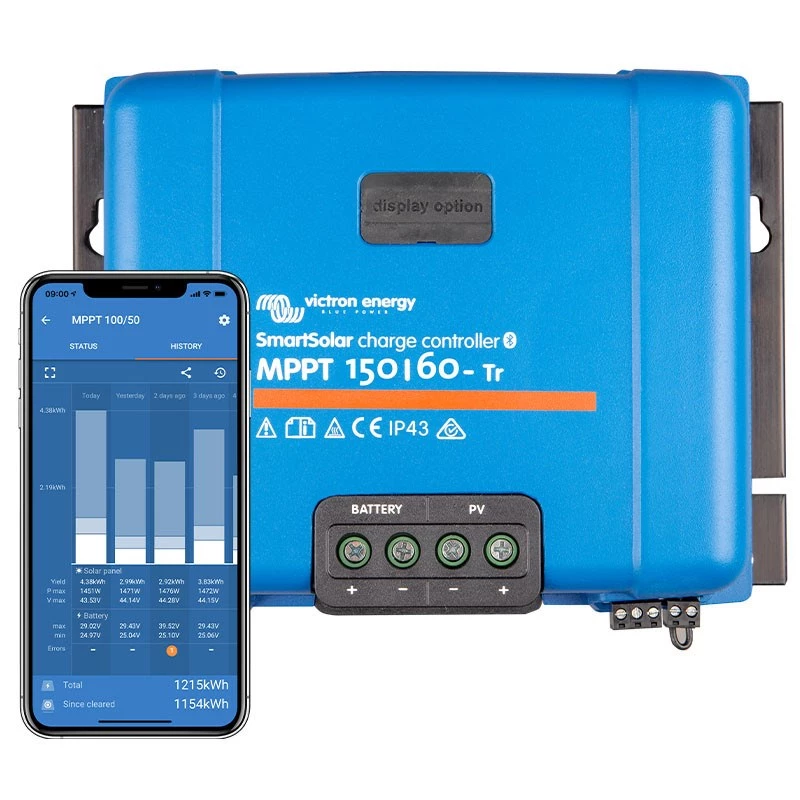

Victron Energy SmartSolar MPPT 150/60-Tr solar laadregelaar

The Victron Energy SmartSolar MPPT 150/60-Tr is a high-performance solar charge controller designed for maximum energy harvest and system reliability. With ultra-fast Maximum Power Point Tracking (MPPT) and a maximum charge current of 60A, it ensures efficient charging of 12V, 24V, and 48V battery banks. Built-in Bluetooth Smart allows easy monitoring and configuration via the VictronConnect app.

Advantages

Exceptional MPPT efficiency of up to 98% ensures you get the most power from your solar panels. The adaptive multi-stage charge algorithm prolongs battery life by automatically adjusting charging parameters. Built-in protection features safeguard against reverse polarity, short circuits, and over-temperature conditions.

Suitable for

• Off-grid solar systems for homes, cabins, and RVs
• Marine and mobile applications
• Backup power systems and remote monitoring stations

Key specifications

• Nominal Battery Voltage: 12V / 24V / 48V Auto Select
• Maximum Charge Current: 60 A
• Maximum PV Open Circuit Voltage: 150 V
• Maximum PV Power: 870W (12V), 1740W (24V), 3480W (48V)
• MPPT Efficiency: 98%
• Self-consumption: < 30 mA
• Communication: Bluetooth Smart built-in, VE.Direct
• Battery Types: Lead Acid (Flooded, GEL, AGM), LiFePO4
• Protection: Battery reverse polarity, PV reverse polarity, PV short circuit, Output short circuit, Over temperature
• Operating Temperature: -30 to +60°C (full rated output up to 40°C)
• Enclosure Protection: IP43 (electronics), IP22 (connection area)
• Programmable Relay: Yes
• Remote Monitoring & Control: Yes (via VictronConnect app)
• Internal Temperature Sensor: Yes
• Optional External Sensor: Battery temperature sensor (VE.Direct Smart network)
• Data Logging: 30 days full data

Recommendations

For optimal performance, pair this controller with Victron Energy batteries and monitoring accessories. Ensure proper ventilation and avoid exposure to direct sunlight or extreme temperatures. Use appropriate wire gauges and fusing as per installation manual.
