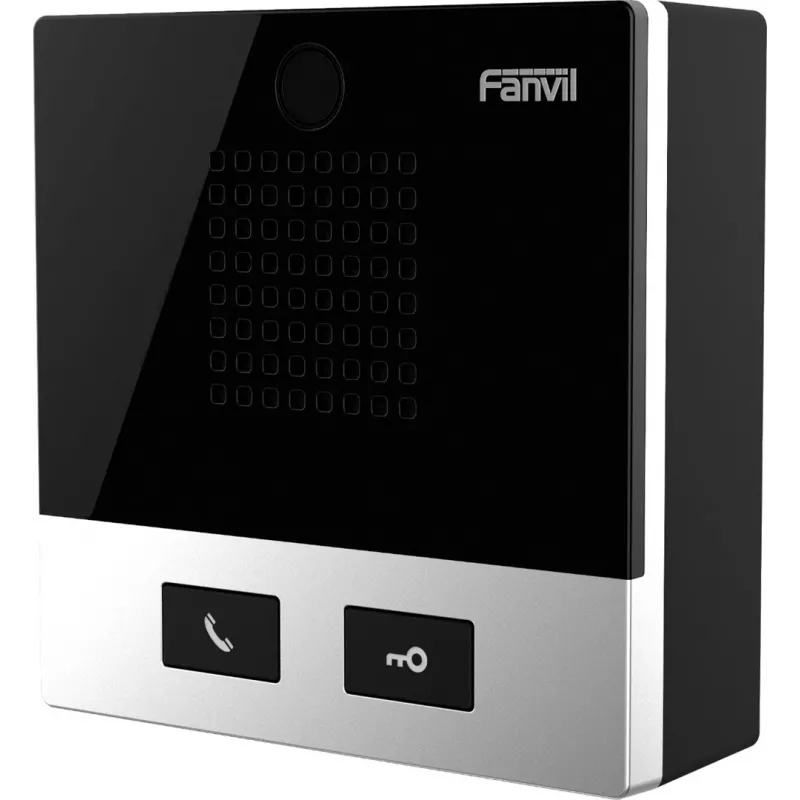

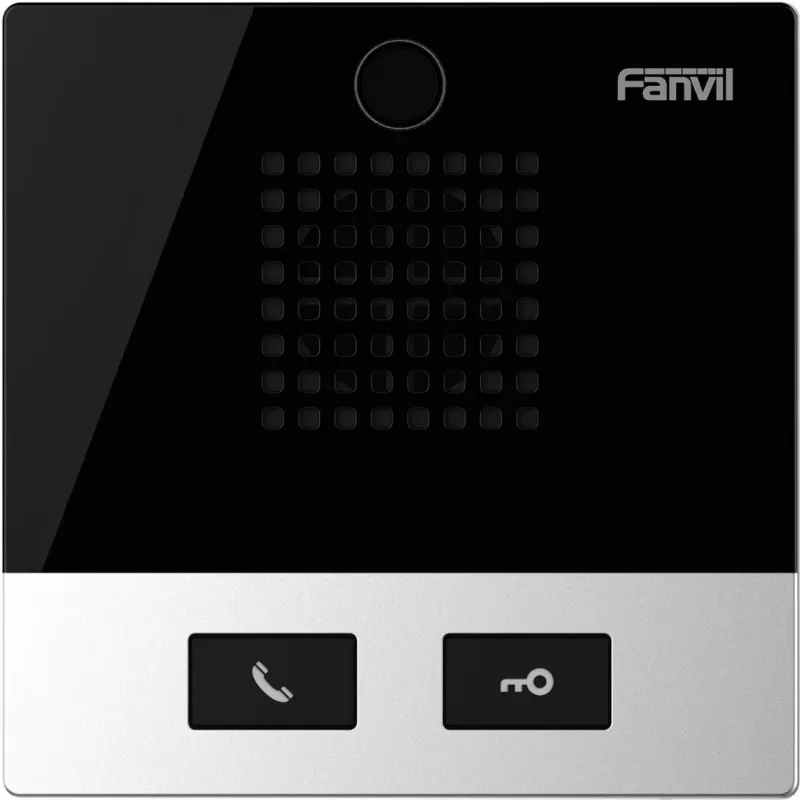

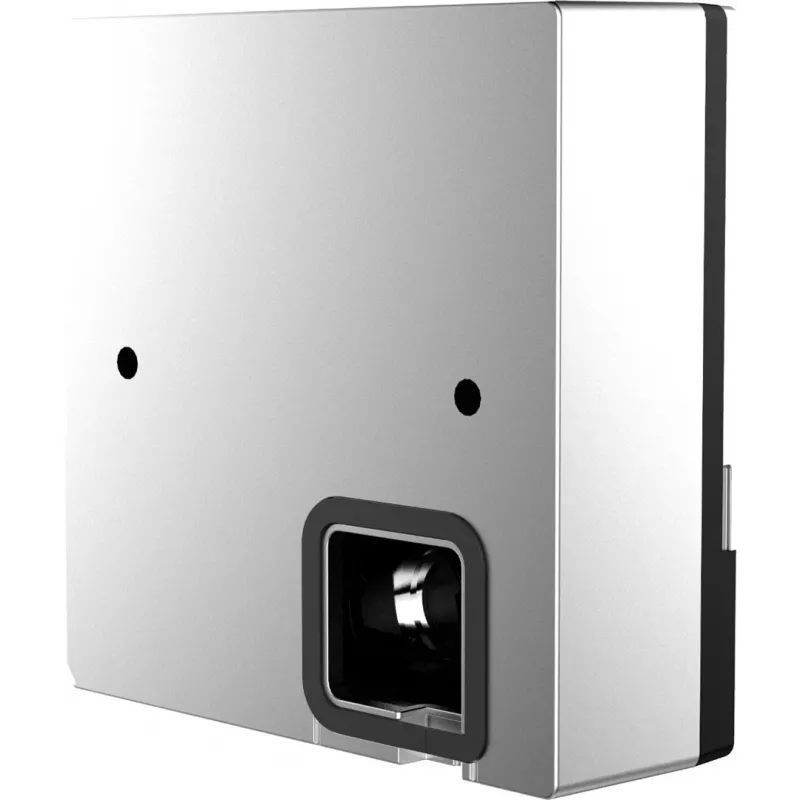

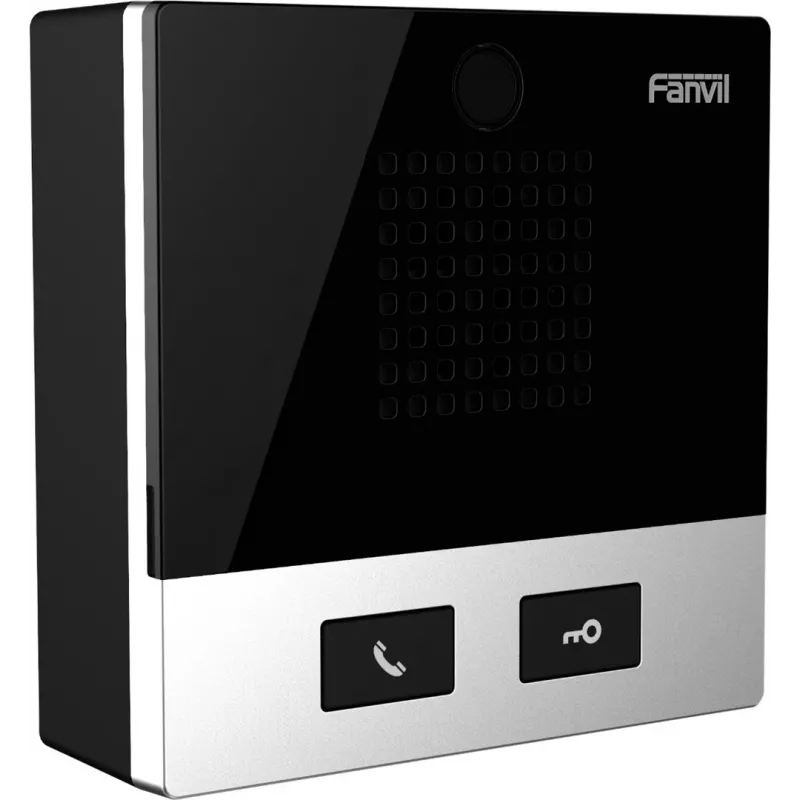

Video-intercom Fanvil I10SD

The Fanvil I10SD is a compact SIP video intercom mini-station with a 2 MP CMOS sensor that supports 720p and 1080p modes. Designed for indoor use with IP54 protection against dust and splashes, it combines audio/video intercom, security monitoring and broadcasting capabilities in a wall-mountable unit. Its compact dimensions (88 × 88 × 32 mm) and Fast Ethernet connectivity allow flexible installation and reliable network communication.

Advantages

The I10SD provides clear video quality from a 2 MP sensor with selectable 720p/1080p output, PoE-capable network connection via Fast Ethernet, and a robust IP54-rated housing for increased durability in indoor environments. Its slim profile and wall-mount design simplify installation while integrated audio and broadcasting features support unified communication and basic security monitoring.

Suitable for

• Apartment building lobbies and corridor entrances
• Office interior doors and reception areas
• Small business entry points requiring audio/video access control
• Rooms where wall-mounted intercom and paging are needed

Key specifications

• Model: Fanvil I10SD (MPN: I10SD, EAN: 6937295602616)
• Camera: 2 MP CMOS sensor; supports 720p and 1080p modes
• Protection: IP54 (dust and splash resistant)
• Network: Fast Ethernet (supports SIP)
• Power: 12V AC adapter (device supports network power options where applicable)
• Dimensions: 88 mm × 88 mm × 32 mm

How to use

Install the I10SD on a suitable indoor wall surface using the provided wall-mount hardware. Connect the unit to the local network using the Fast Ethernet port and configure SIP settings on the connected PBX or VoIP platform. Provide power via the recommended 12V AC adapter or compatible network power solution if supported. After network and SIP configuration, test audio, video and paging functions and adjust camera angle and settings through the device web interface as needed.

Recommendations

Place the intercom at eye level near entry points for optimal camera framing and verify that indoor mounting locations are sheltered from direct water exposure despite the IP54 rating. Use the device within its specified power and network requirements and perform periodic firmware updates for security and feature improvements.
