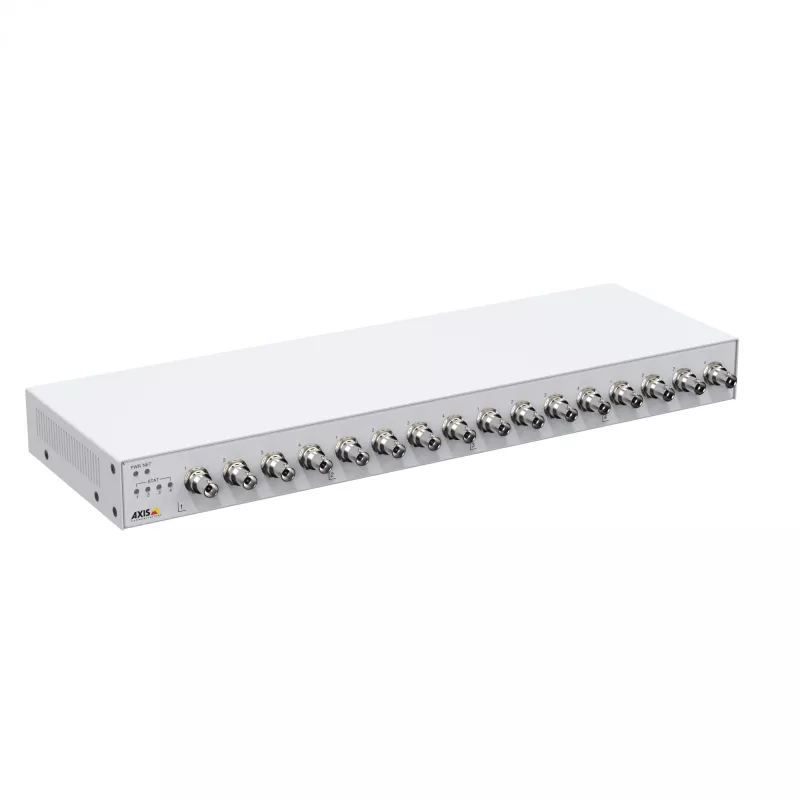

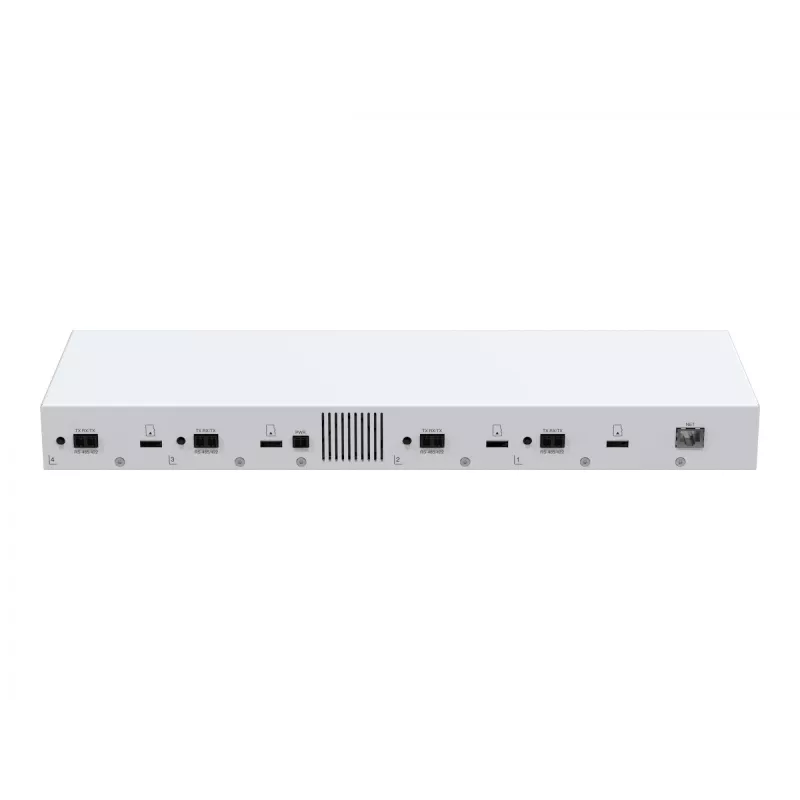

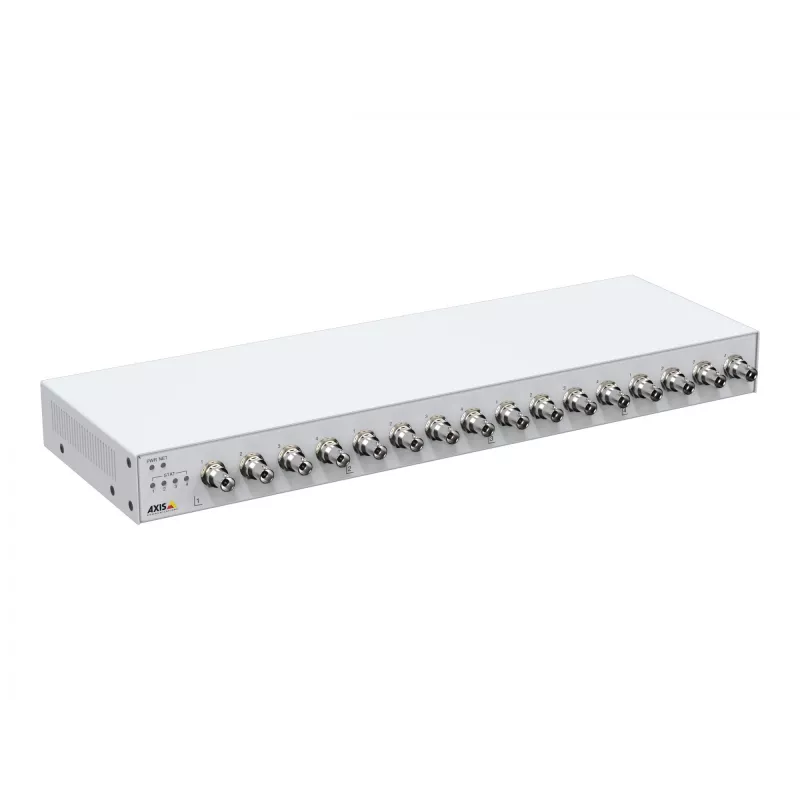

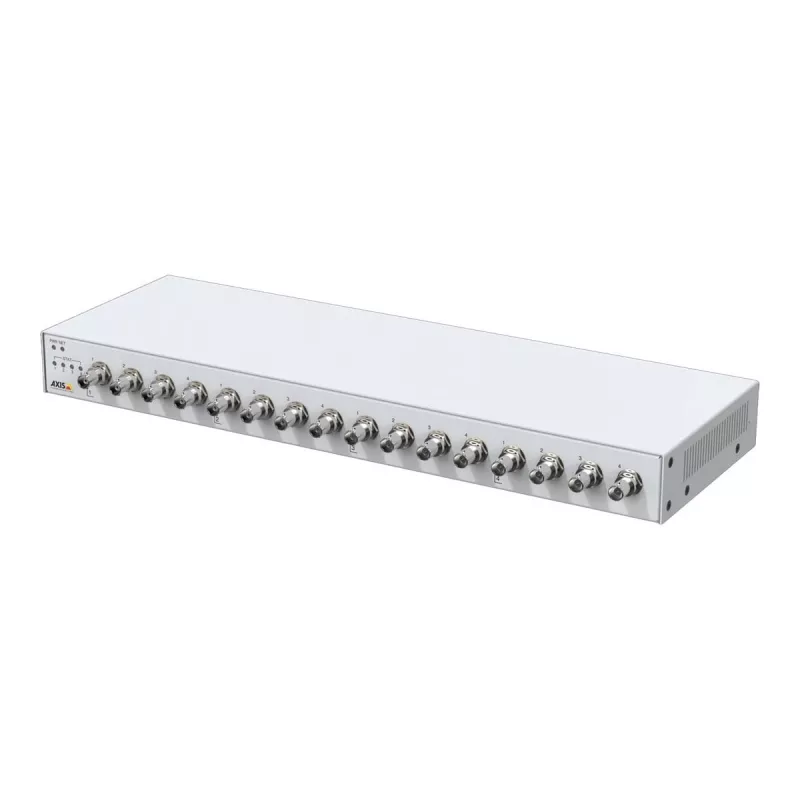

Videoserver Axis 02036-003

AXIS M7116 (model 02036-003) is a 16-channel video encoder designed to integrate analog camera systems into IP-based surveillance. The unit supports standard-resolution analog cameras with up to 720 x 576 pixels at 30 fps, PTZ control over RS-485 and offers on-device edge storage via MicroSD/MicroSDHC/MicroSDXC card slots. The metal rack-mount housing and AxIS networking features provide a durable solution for secure video streaming using H.264, H.265, M-JPEG and MPEG4 compression.

Advantages

This video server reduces bandwidth and storage needs through Zipstream-compatible H.264/H.265 encoding while retaining image quality. It supports intelligent analytics including motion detection and active tampering alarm, and includes security features such as signed firmware and secure boot. The device provides 16-channel input, one Ethernet (RJ-45) port and a compact 2.05 kg metal housing suitable for rack installation.

Suitable for

• Upgrading multi-channel analog CCTV systems to IP surveillance
• Sites requiring PTZ control of analog cameras via RS-485
• Installations needing edge storage and reduced bandwidth usage
• Environments where secure, certified hardware is required

Key specifications

• Model: AXIS M7116 / 02036-003
• Channels: 16 channels
• Maximum resolution: 720 x 576 pixels at 30 fps
• Compression formats: H.264, H.265, M-JPEG, MPEG4
• Edge storage: MicroSD / MicroSDHC / MicroSDXC card support
• Memory: 1024 MB RAM, 512 MB flash
• Network: 1 × Ethernet LAN (RJ-45)
• Weight: 2.05 kg; Colour: Grey; Rack-mount metal housing

How to use

Mount the encoder in a standard rack and connect each analog camera to the designated input channels. Insert a compatible MicroSD card for edge storage if required, and connect the device to the network via the Ethernet (RJ-45) port. Configure PTZ control over RS-485 where applicable and select desired compression and Zipstream settings to optimize bandwidth and storage. Use the Axis management interface or compatible VMS to manage channels, analytics and firmware updates.

Recommendations

For reliable operation, use certified MicroSD cards from Axis or other recommended manufacturers, keep firmware up to date to maintain signed firmware and secure boot benefits, and configure motion detection and tampering alarms to reduce unnecessary recordings and optimize storage usage.
