Voeding extra digital KD00MS0004 120–240V 120W

Universal power supply extra digital KD00MS0004 accepts 120–240V AC input and delivers up to 120W DC output. The adapter provides adjustable output voltage in the 15–20V range and a maximum current of 10A. It includes multiple interchangeable tips to fit most laptops, tablets and other electronic devices that match the listed connector dimensions.

Advantages

The unit features overload and short-circuit protection and supports a wide input voltage range (120–240V), making it suitable for international use. With eight interchangeable adapters covering many common laptop connector sizes, the power supply offers flexible compatibility while providing up to 120W of stable DC power.

Suitable for

• Laptops and notebooks with compatible connector sizes and 15–20V input requirements
• Tablets and portable devices that accept external DC adapters in the specified voltage range
• Peripherals and small equipment (routers, monitors, external drives) that match the 120W/15–20V output

Key specifications

• Brand: extra digital
• Model (MPN): KD00MS0004
• Input voltage: 120–240V AC
• Output voltage: DC 15–20V (adjustable)
• Maximum current: 10A
• Maximum output power: 120W

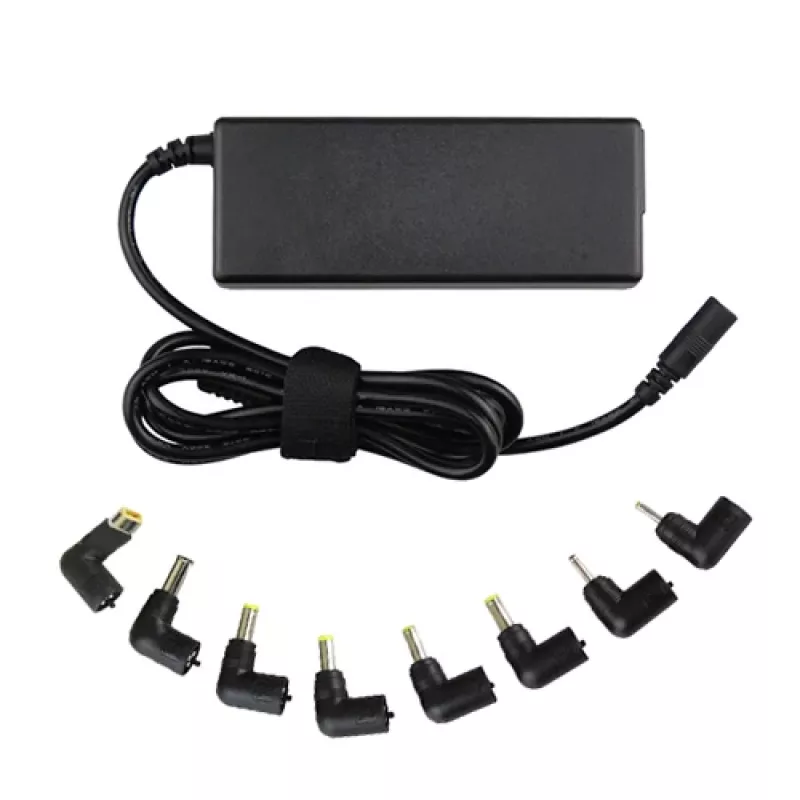

• Included adapters (connector dimensions): 5.5×2.5 mm; 5.5×3.0 mm (with pin); 5.5×2.1 mm; 5.5×1.7 mm; 4.5×3.0 mm (with pin, Dell/HP variants); 7.4×5.0 mm (with pin); 4.0×1.35 mm; Lenovo Slim Tip (with pin)
• EAN: 4775345000041
• Warranty: 12 months

How to use

Select the adapter tip that matches your device's power jack and attach it securely to the power supply output. Connect the supply to an AC socket (120–240V). Set or verify the output voltage falls within your device's required range (15–20V) before connecting. Plug the adapter tip into the device and verify charging or power indicator on the device. If the device does not power on, disconnect immediately and recheck the voltage setting and connector compatibility.

Recommendations

Use only with devices whose required voltage and maximum power do not exceed the adapter's specifications (15–20V, up to 120W). Avoid using damaged tips or cables, and do not expose the power supply to moisture or extreme temperatures. For best results, confirm connector polarity and matching dimensions before first use.
