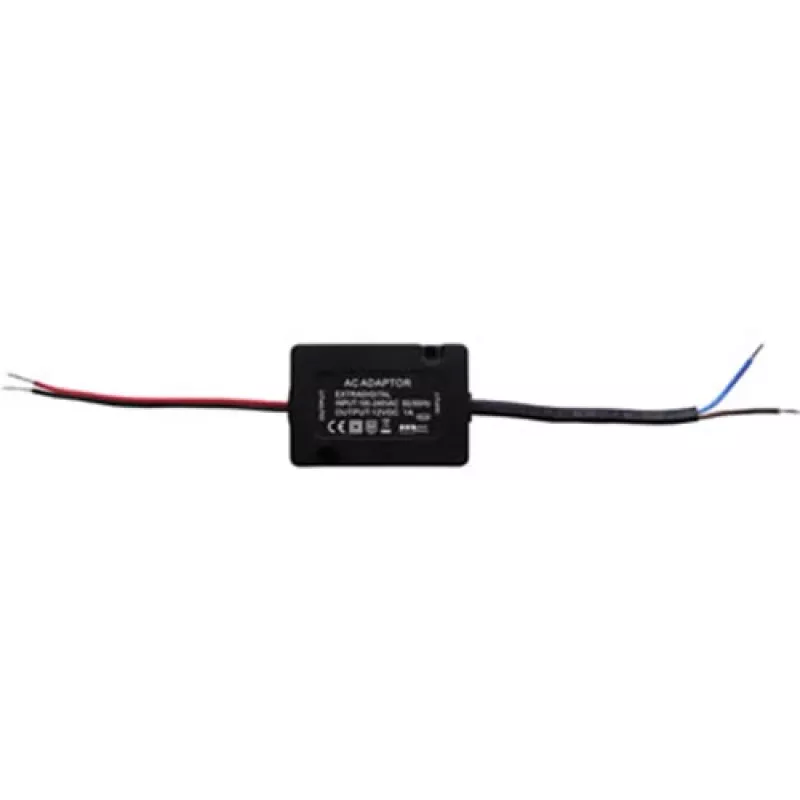

Voeding extra digital KD00MS0040 12V 1A 12W IP67

The extra digital KD00MS0040 power supply provides a stable 12V DC output at 1A (12W) in a compact, weather-resistant enclosure. Engineered for low-voltage devices, this external power adapter features IP67 protection for reliable operation in dusty environments and temporary immersion situations. Its compact design and fixed-output characteristics make it suitable for straightforward installations where a consistent 12V source is required.

Advantages

The unit delivers a regulated 12V output with a 1A current limit, ensuring steady voltage for connected devices. The IP67-rated housing protects internal electronics from dust ingress and short-term immersion, allowing safe placement in exposed or outdoor locations. Its small footprint simplifies mounting in tight spaces and near loads such as cameras or LED strips. The adapter’s design minimizes electrical noise and maintains stable performance under typical operating conditions.

Suitable for

• CCTV and network cameras requiring 12V DC power
• LED strips and low-voltage lighting systems
• Small electronics and sensors that need a regulated 12V supply
• Indoor and outdoor installations where weather resistance is required

Key specifications

• Output voltage: 12V DC
• Maximum output current: 1 ampere (1A)
• Maximum output power: 12 watts
• Ingress protection: IP67 (dust-tight and temporary immersion resistant)
• Mounting: compact external enclosure suitable for surface mounting
• Typical applications: low-voltage devices such as cameras, LED lighting, and sensors

How to use

Install the power supply in a dry, accessible location or in an outdoor position compatible with IP67-rated devices. Connect the mains input to a properly installed power source following local electrical regulations. Attach the 12V DC output leads to the device’s power input, observing correct polarity. After connections are secured, power on the mains supply and verify the connected device receives stable 12V. Periodically inspect seals and cable entries to maintain protective integrity.

Recommendations

Do not exceed the rated 1A output; apply appropriate fusing on the DC side where required. Ensure cable lengths and wire cross-sections are chosen to limit voltage drop for long runs. For permanent outdoor installations, position the unit to avoid prolonged submersion and verify that junctions and connections remain sealed.
