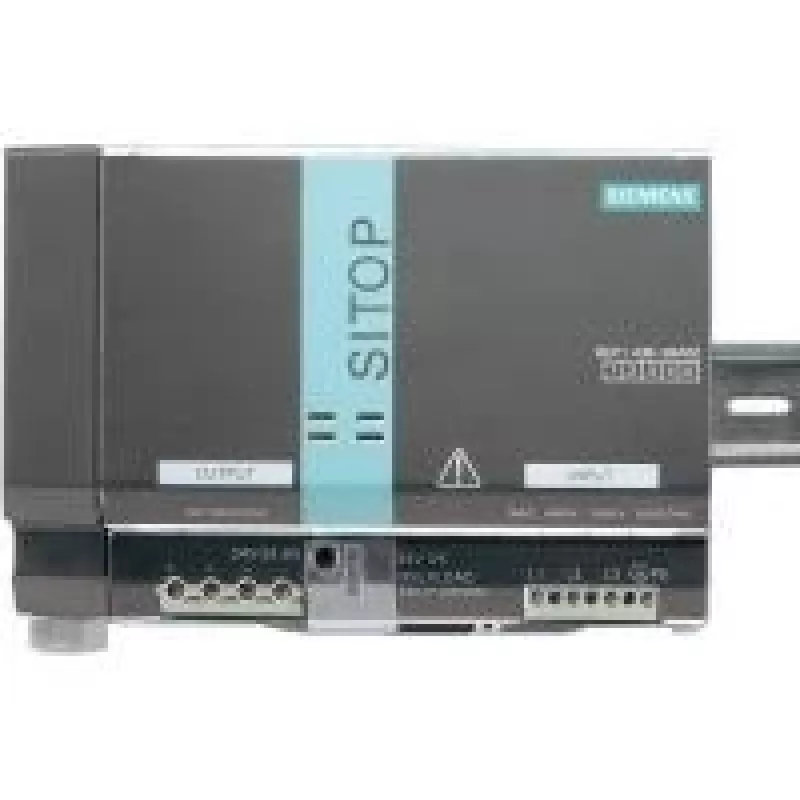

Voeding Siemens SITOP modular 24V (model 6EP1336-3BA00)

Siemens SITOP modular 24V power supply (model 6EP1336-3BA00) provides a regulated 24 V DC output tailored for industrial control and automation systems. Designed for DIN-rail mounting in control cabinets, this unit delivers stable low-voltage power to programmable logic controllers, sensors, actuators and other control devices. The compact modular form factor supports straightforward integration into existing power distribution setups while maintaining continuous voltage under varying load conditions.

Advantages

The SITOP modular power supply offers precise voltage regulation and designed robustness for industrial environments. Its compact DIN-rail mounting and modular design simplify installation and reduce cabinet space requirements. Built-in protection features help prevent damage from overcurrent and short circuits, while thermal management ensures reliable operation under typical industrial ambient conditions.

Suitable for

Key specifications

How to use

Install the power supply on a standard DIN-rail inside the control cabinet, ensuring adequate clearance for ventilation. Connect the AC input supply according to local wiring regulations and the device’s terminal markings, then connect the 24 V DC output to the load circuits, observing correct polarity. Verify protective earth connection and, after initial power-up, confirm output voltage and load distribution. Include appropriate fusing and downstream protection as required by the specific installation.

Recommendations

For reliable operation, maintain ambient temperatures within the manufacturer’s specified range, avoid obstructing airflow around the unit and use proper wiring practices with correctly sized conductors. Regularly inspect terminals for tightness and signs of wear. When integrating into critical systems, consider redundancy or parallel power arrangements and follow applicable electrical standards for control equipment installations.
