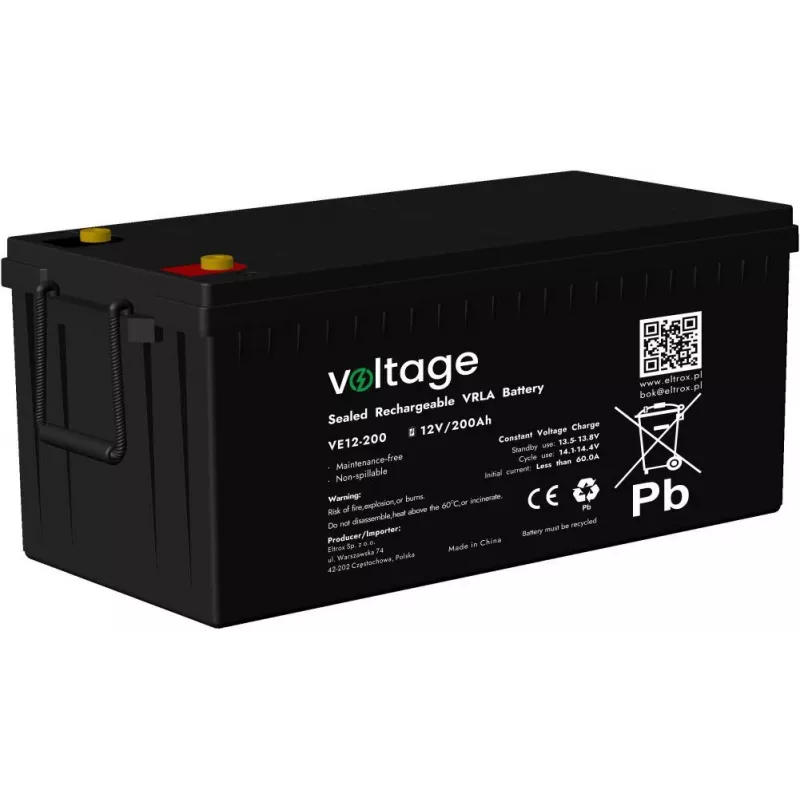

Voltage AGM accu 12V 200Ah VE12-200 (6-9 jaar levensduur)

The Voltage VE12-200 is a high-performance AGM (Absorbent Glass Mat) battery designed for reliable backup power in UPS, solar systems, telecommunications, emergency lighting, and security applications. With a nominal voltage of 12V and a capacity of 200Ah (C10), this sealed, maintenance-free battery delivers consistent power and a long service life of 6-9 years (Eurobat classification: General Purpose). Its robust ABS container and M8 screw terminals ensure safe and easy installation.

Advantages

Sealed and maintenance-free design eliminates the need for water refilling. Low self-discharge rate (less than 3% per month at 25°C) allows for extended storage. High discharge current capability (up to 2000A for 5 seconds) supports demanding loads. Wide operating temperature range (-20°C to 60°C discharge) ensures performance in various environments.

Suitable for

• Uninterruptible Power Supplies (UPS)
• Solar energy storage systems
• Telecommunications equipment
• Emergency lighting systems
• Security and alarm systems

Key specifications

• Battery Technology: AGM (Absorbent Glass Mat)
• Nominal Voltage: 12V
• Nominal Capacity: 200Ah (C10)
• Design Life: 6-9 years (Eurobat General Purpose)
• Terminal Type: M8 screw terminals
• Max. Discharge Current: 2000A (5s)
• Internal Resistance: Approx. 2.5 mΩ
• Self-Discharge Rate: <3% per month at 25°C
• Operating Temperature (Discharge): -20°C to 60°C
• Operating Temperature (Charge): -10°C to 60°C
• Recommended Operating Temperature: 25°C ± 5°C
• Float Charging Voltage: 13.5V - 13.8V at 25°C
• Cycle Charging Voltage: 14.4V - 14.7V at 25°C
• Max. Charging Current: 60A (0.3C)
• Container Material: ABS (UL94-HB)
• Construction: Sealed, Maintenance-Free
• Compliance: CE, ISO9001, ISO14001

Recommendations

For optimal performance and longevity, use a compatible AGM battery charger and operate within the recommended temperature range. Ensure proper ventilation and secure mounting. Always follow manufacturer guidelines for charging and discharging.
